Milbank® UQFB-150-X1

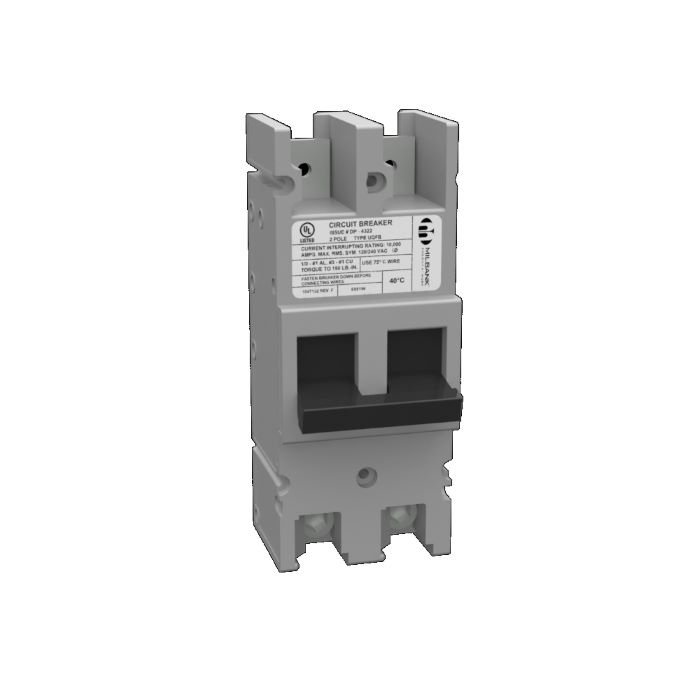

Milbank® UQFB-150-X1 Bolt-On Circuit Breaker, 240 VAC, 150 A, 1 Phase
Brand: Milbank®
Item ID: 311483
MPN: UQFB-150-X1
Login for Price
Features
- Thermal magnetic trip
- F-frame
- 2-pole
- Lever actuator
- Non-metallic material
- 10 kAIC interrupting capacity
- 1/0 AWG to 300 kcmil copper, 2/0 AWG to 300 kcmil aluminum wire
- (2) 1/0 AWG to 300 kcmil lugs provided on load and line side (cable-in, cable-out)
Description
Milbank® Circuit Breaker, Bolt-On, Series: UQFB, 240 VAC, 150 A, 1 Phase, 60 Hz, 1/0 AWG to 300 kcmil, 2/0 AWG to 300 kcmil Wire, 40 deg C Operating, 7-7/16 in H x 3 in W x 2-11/16 in D
Specifications
Amperage Rating |
150 A |
Dimensions |
7-7/16 in H x 3 in W x 2-11/16 in D |
Frequency Rating |
60 Hz |
Operating Temperature |
40 deg C |
Phase |
1 |
Series |
UQFB |
Type |
Bolt-On |
Voltage Rating |
240 VAC |
Wire Size |
1/0 AWG to 300 kcmil, 2/0 AWG to 300 kcmil |
Standard Approval |
UL Listed|PROP65: This product can expose you to Chromium (hexavalent compounds), which is known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov |
Application |
For metering accessory and current interrupting device |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Milbank_UQFB_150_X1_Catalog.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_0cb8e587a387f064f4e0e76c8e936289d3925ca7d51bb42e953f18c0aa35f1ba.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Milbank_U2594-X-K7-ALT_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Milbank_U2594-X-K7-ALT_Instruction_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Milbank_UQFB-150-X1_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Milbank_UQFB-150-X1_Instruction_Installation_Manual.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_4b8372ed7c7a03beb3b7997a250fab075878ac0baf7fd463f1d9b2cee6294aa8.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Milbank_UQFB-150-X1_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Milbank_UQFB-150-X1_Specification_Sheet.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_4a88ff5977743c29198c477c61a953ac83057bbd59e48472aa0f3453229bf302.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Milbank_U2594-X-K7-ALT_Warranty_Information.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Milbank_U2594-X-K7-ALT_Warranty_Information.pdf
