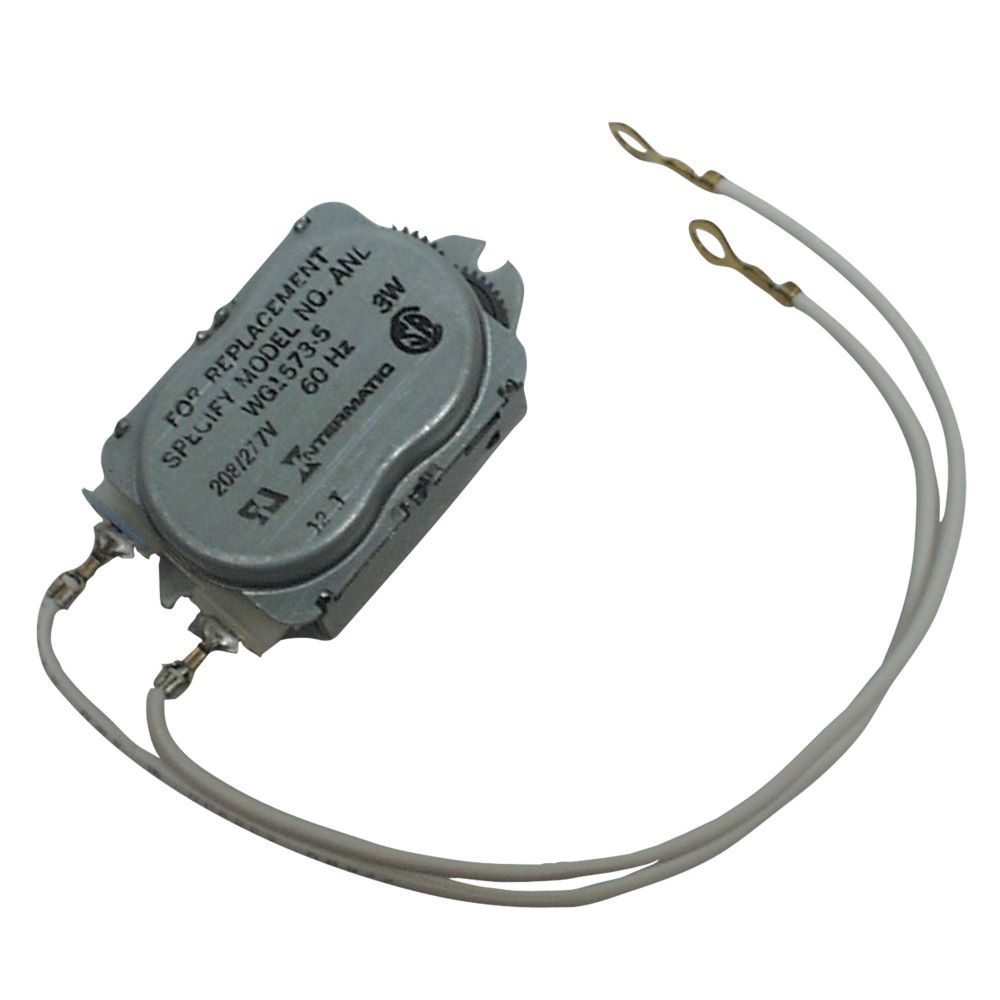

Intermatic® WG1573-10D
Intermatic® WG1573-10D Clock Motor, 208 to 277 VAC, 60 Hz, 3 W, For Use With T100, T102, T104, T170, T180, T100R201, T1400, T100-20, T100R301, and WH10, WH30, WH40 Series Mechanical Time Switch
Brand: Intermatic®
Item ID: 15106
MPN: WG1573-10D
Login for Price
Features
- Very sturdy with a high Torque
- Fixed tab connectors easily slip over the timer connection poles for simple installation
Description
Intermatic® Clock Motor, 208 to 277 VAC, 60 Hz, 3 W, For Use With: T100, T102, T104, T170, T180, T100R201, T1400, T100-20, T100R301, and WH10, WH30, WH40 Series Mechanical Time Switch, Steel, 2.2 in L x 1.4 in W x 3.1 in H
Specifications
Dimensions |
2.2 in L x 1.4 in W x 3.1 in H |
Frequency Rating |
60 Hz |
Material |
Steel |
Power Rating |
3 W |
Suitable For Use With |
T100, T102, T104, T170, T180, T100R201, T1400, T100-20, T100R301, and WH10, WH30, WH40 Series Mechanical Time Switch |
Voltage Rating |
208 to 277 VAC |
Standard Approval |
CSA Certified|UL Recognized |
