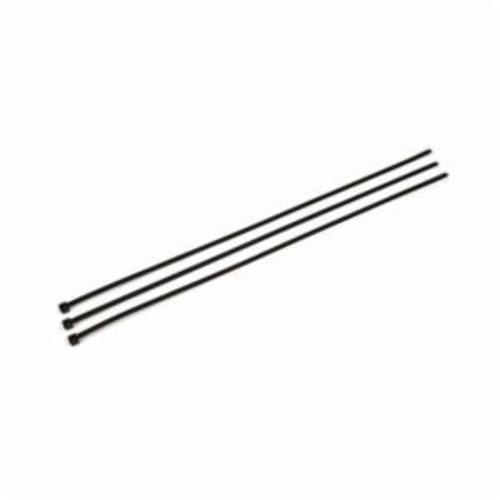

3M™ 7000031857
CT15BK50-C 15 Inch CABLE TIE - Black - Plenum Rated - 50 Lbs
Brand: 3M™
Item ID: 330145
MPN: 7000031857
Login for Price
Features
- UV weather-resistant
- Curved tip allows for faster threading and installation
- Secure wire bundles and harness components quickly, without slipping
- UL listed 62275 type 21 or 21S and plenum rated AH-2 for use in air handling spaces
Description
3M™ standard nylon cable ties are available in several tensile strengths ranging from 18 to 175 lb and multiple lengths ranging from 4 to 48 in to cover your needs. They are offered in natural and red for indoor use and UV weather-resistant black for indoor and outdoor use. UL listed 62275 type 21 or 21S and plenum rated AH-2 for use in air handling spaces. Made in the USA.
3M™, 7000031857, Cable Tie, 15 in Length, 0.18 in Width, 0.054 in Thickness, 4 in Diameter Bundle, Lock Mechanism: Self-Locking, 50 lb Tensile Strength, -40 to 185 deg F, Nylon 6/6, Black
Specifications
Bundle Diameter |
4 in |
Color |
Black |
Length |
15 in |
Lock Mechanism |
Self-Locking |
Material |
Nylon 6/6 |
Temperature Rating |
-40 to 185 deg F |
Tensile Strength |
50 lb |
Thickness |
0.054 in |
Type |
Standard |
Width |
0.18 in |
Standard Approval |
RoHS Compliant|UL 62275 Type 21/21S|AH-2 Plenum Rated|Military Specification MS3367-2-0 |
Application |
General Purpose, Outdoor and Plenum Applications |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a5bad7602c471129c7106f885b08b6f1b1d8efb5280135f153ff0c97885c382c.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a5bad7602c471129c7106f885b08b6f1b1d8efb5280135f153ff0c97885c382c.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_9f598bd8fcbd100fcf61deeaeff6a4e793946598e5958c9f6c25fc7cdc7fb2b5.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_9f598bd8fcbd100fcf61deeaeff6a4e793946598e5958c9f6c25fc7cdc7fb2b5.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_91a3b7c73c37806d7180c6fabdba193af0f209217d7643a3ed6839c6cb2a76eb.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_91a3b7c73c37806d7180c6fabdba193af0f209217d7643a3ed6839c6cb2a76eb.pdf
