3M™ 7000132935

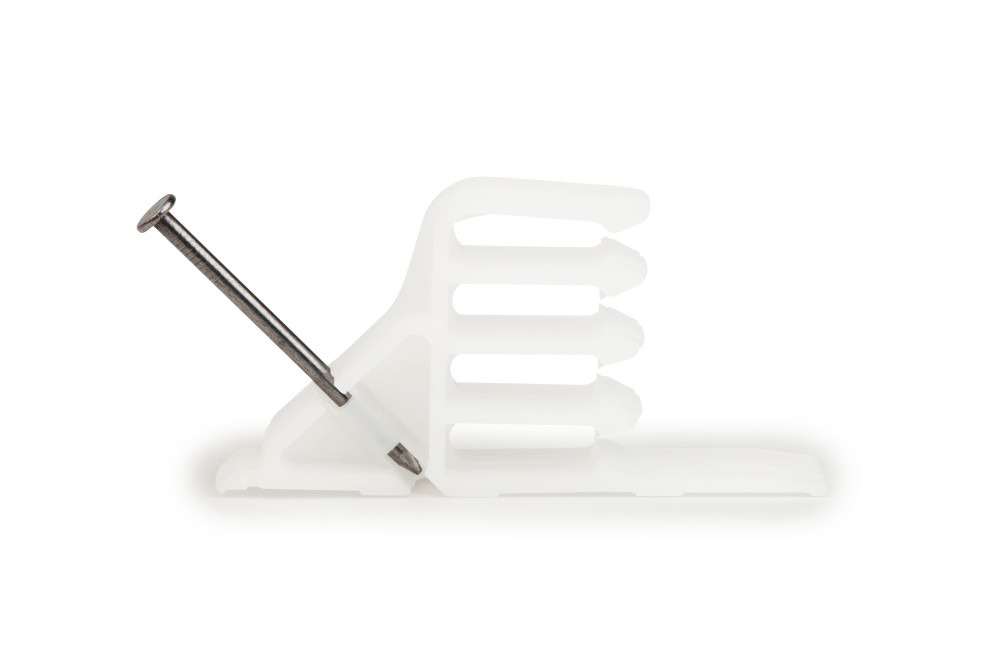

SI-1 STAK-IT WIRE STACK CABLE STACKER - WHITE - 25/BAG
Brand: 3M™
Item ID: 354
MPN: 7000132935
Login for Price
Features
- Centers multiple cables on framing members
- Simplifies spacing requirements of the national electric code and Canadian electric code
- Organizes cable runs and aids in identification
- Puts an end to tangled wires and the potential heating that could occur when cables are held together tightly under 1 clip
- Easy installation with cables snapping in for a positive lock
Description
It organizes cable runs and aids in identification, putting an end to tangled wires and the potential heating that could occur when cables are held together tightly under a single fastener. The 3M™ cable stacker SI-1 is made from reclaimed plastic. Installation is easy with cables snapping in for a positive lock, simplifying compliance with the spacing requirements of the national electrical Code, article 300-4-(d) and the Canadian electric code part I, section 12-516.
3M™, 7000132935, Stacker, 10/2 to 14/2 AWG Cable, Stacker Cable, 4 Cables, Polypropylene, White, Clip-On Mounting, 3.35 in L x 0.48 in W Dimensions
Specifications
Cable Size |
10/2 to 14/2 AWG |
Cable Type |
Stacker |
Color |
White |
Dimensions |
3.35 in L x 0.48 in W |
Material |
Polypropylene |
Mounting Type |
Clip-On |
Number of Cables |
4 |
Standard Approval |
NEC Article 300-4-(d)|CEC Part I, Section 12-516|RoHS Compliant |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_04f1e82cad334826c67da6ac8151b92b9a77d0493bf9e45b03712ac8a3c5166d.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b90fb35dda91a667d36d4fcb0433112eafb53f2d3382f4bec459279eb0995018.pdf
