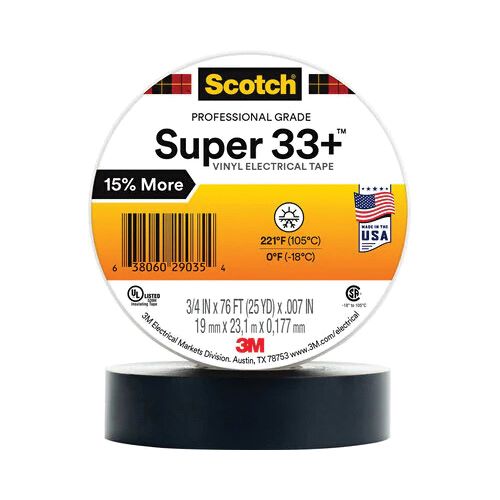

3M™ 7100201470

33+ - 3/4 INCH X 76FT SUPER 33+ ELECTRICAL TAPE - BLACK

Brand: 3M™

Item ID: 499952

MPN: 7100201470

Login for Price

Features

  • The combination of the pressure sensitive, rubber resin adhesive and the PVC backing offers electrical and mechanical protection
  • Resists UV rays, abrasion, moisture, alkalis, solvents and acids
  • Flame-retardant and inhibits the corrosion of electrical conductors
  • Compatible with rubber and synthetic splicing compounds

Description

Scotch® Super 33+ Vinyl Electrical Tape is a 7 mil thick, premium grade tape that provides electrical insulation for all wires and cables rated up to 600 V. The flame retardant tape withstands a temperature range of 0 to 221 deg F (18 to 105 deg C). It is compatible with solid dielectric cable insulation, synthetic cable insulations, jackets and splicing compounds. Scotch® Super 33+ Tape is designed for above/below grade, indoor/outdoor, low and high voltage applications and for harnessing cables. This tape offers electrical and mechanical protection with the combination of a pressure sensitive, rubber resin adhesive and elastic, PVC backing. It provides a protective jacket for high voltage cable splices. This electrical tape is highly resistant to UV rays, abrasion, moisture, alkalis, solvents and many acids. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.

3M™, 7100201470, Tape, Premium Grade, 76 ft Length, 3/4 in Width, 7 mil Thickness, PVC, Black, 1 in Diameter Core, Rubber Adhesive, 60 in-oz Adhesion Strength, 600 V, 1150 V/mil Dielectric Strength, 221 deg F Maximum Operating, 0 deg F Minimum Operating, Specifications Met: CSA Certified, IEC 60454-3-1-7/F-PVC P/90, UL Listed, VDE Marks License

Specifications

Adhesion Strength

60 in-oz

Adhesive Material

Rubber

Backing Material

PVC

Color

Black

Core Diameter

1 in

Dielectric Strength

1150 V/mil

Length

76 ft

Material Type

PVC

Maximum Operating Temperature

221 deg F

Minimum Operating Temperature

0 deg F

Specifications Met

CSA Certified, IEC 60454-3-1-7/F-PVC P/90, UL Listed, VDE Marks License

Thickness

7 mil

Type

Premium Professional-Grade

Voltage Rating

600 V

Width

3/4 in

Application

Electrical Maintenance and Insulation Applications

Documentation

Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Scotch_054007_11222_Catalog.pdf

SDS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/3M_638060_29035_SDS.pdf

Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/3M_638060_29035_Specification_Sheet.pdf

videoVIDEO LINK https://multimedia.3m.com/mws/media/1900518O/tapes-for-every-task-scotch-super-33-vinyl-electrical-tape-video-30s.mp4
