T&B® 1H

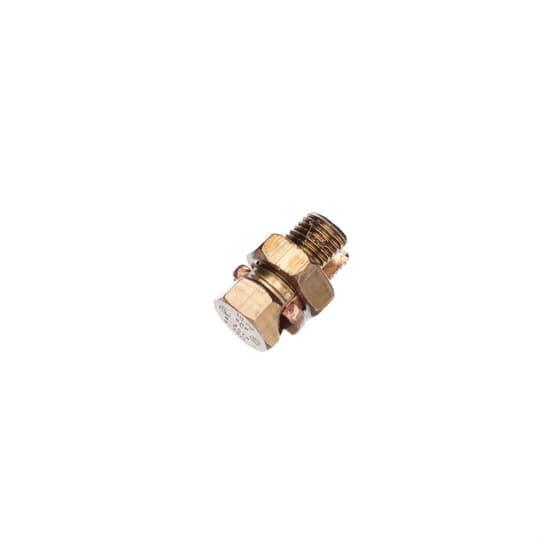

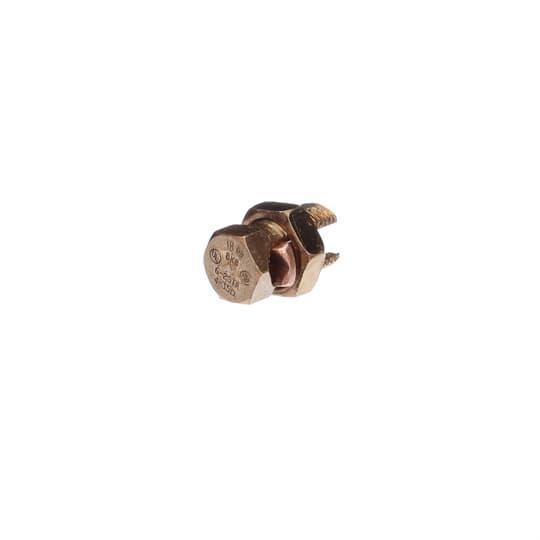

T&B® Fittings 1H High Strength Type H Split Bolt Connector, 6 to 2 AWG Copper Plated Conductor, Bronze Alloy
Brand: T&B®
Item ID: 5792
MPN: 1H
Login for Price
Features
- Bolt and nut of high strength corrosion-resistant bronze alloy
- Copper pressure bar, bolt and nut of hex design
- 2 AWG stranded - 6 AWG solid range for equal main and tap
- 14 AWG solid minimum tap with one maximum main
Description
T&B® Fittings Split Bolt Connector, High Strength Type H, Copper Plated Conductor, 6 to 2 AWG Conductor, Bronze Alloy, Metallic, 1-11/32 in L x 7/8 in W
Specifications
Color |
Metallic |
Conductor Size |
6 to 2 AWG |
Conductor Type |
Copper Plated |
Dimensions |
1-11/32 in L x 7/8 in W |
Material |
Bronze Alloy |
Type |
High Strength Type H |
Standard Approval |
UL E9809 Listed|CSA Certified|RoHS Compliant |
Application |
For splicing, tapping or terminating conductors in power and grounding electrical connection |
Documentation
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/ABB_1SDA013846R1_Specification_Sheet.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/T_B_Fittings_1H_Data_Sheet.pdf
