T&B® 3302-TB

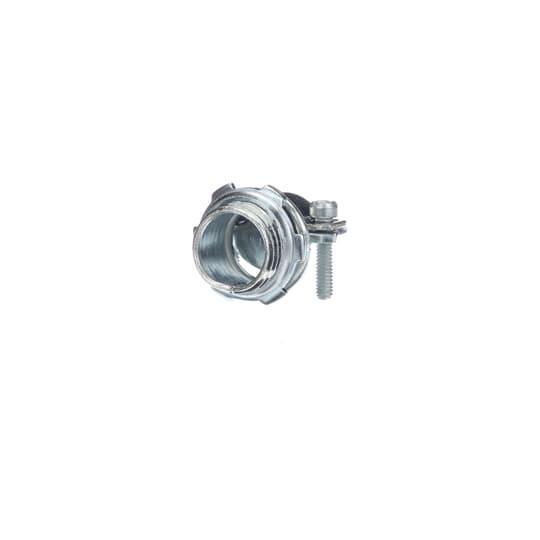

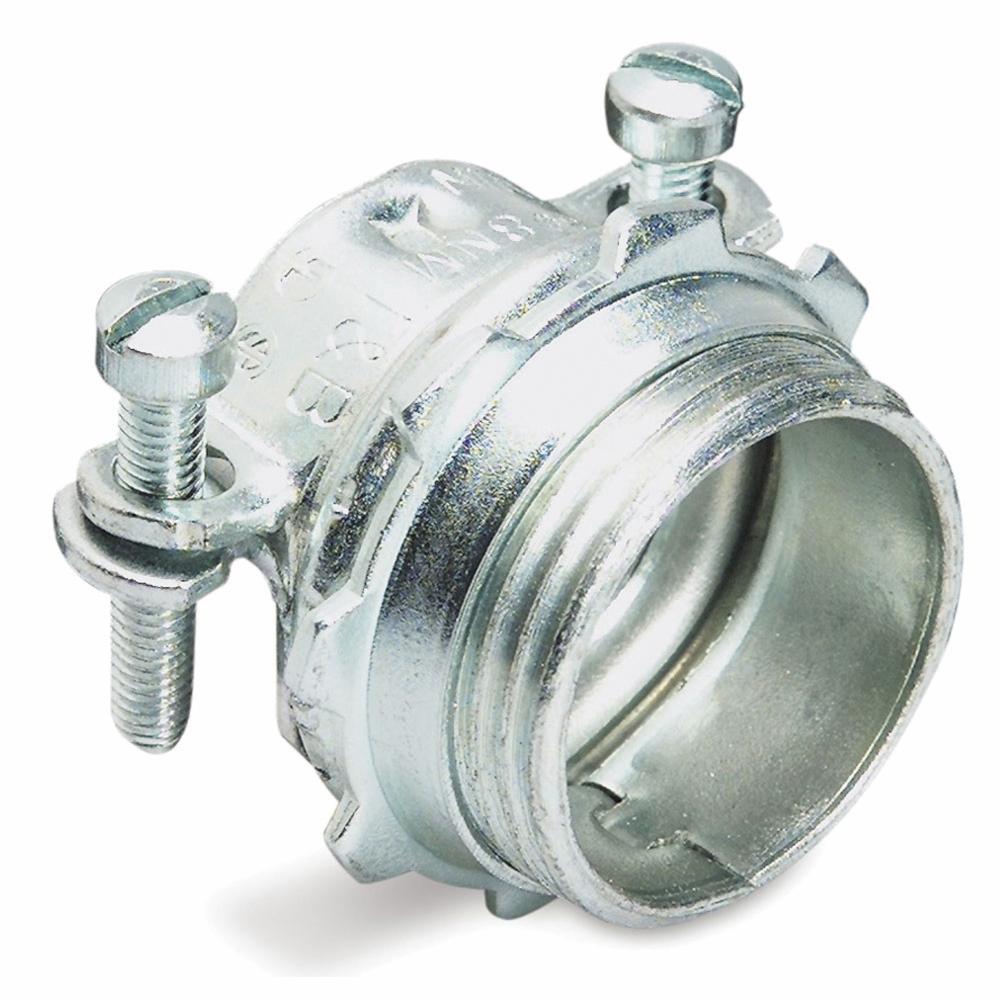

T&B® 3302-TB 2-Screw Non-Insulated Cable Connector With Slotted Screw, 1/2 in Trade, 0.25 to 0.59 in Cable Openings, Steel, Electro-Zinc Plated
Brand: T&B®
Item ID: 62909
MPN: 3302-TB
Login for Price
Features
- Rounded cable grip and smooth bushing protect the cable sheath and wire insulation
- Since saddle is threaded, screws do not travel or extend beyond the connector body as it is clamped to the cable
- An extra lip on the saddle closes the unused part of the connector opening
- Non-metallic service entrance cable
- 1/2 in knockout
Description
For over 100 years the T&B® brand has been recognized as the leading brand of electrical fittings. Industry standards such as Liquidtight® fittings, Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.
T&B® Cable Connector, 2-Screw Non-Insulated, 1/2 in, Cable Openings: 0.25 to 0.59 in, Flex/Non-Metallic Sheathed Cable, Straight, Steel, Electro-Zinc Plated, Metallic, 1-3/16 in L x 1-3/8 in W x 31/32 in H
Specifications
Cable Openings |
0.25 to 0.59 in |
Cable Type |
Flex/Non-Metallic Sheathed |
Color |
Metallic |
Connection Type |
Straight |
Dimensions |
1-3/16 in L x 1-3/8 in W x 31/32 in H |
Finish |
Electro-Zinc Plated |
Material |
Steel |
Trade Size |
1/2 in |
Type |
2-Screw Non-Insulated |
Standard Approval |
CSA 2884|UL File No. E23013/E17583 |
Application |
For use to connect non-metallic sheathed cable and flexible cord to a box or enclosure |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/T_B_3310_Catalog.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_84546e0447a538753e347d572f015519b824e20b91b05d6e1ddb5b8c70180236.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/T_B_3302SL_Specification_Sheet.pdf
