Blackburn® 350M

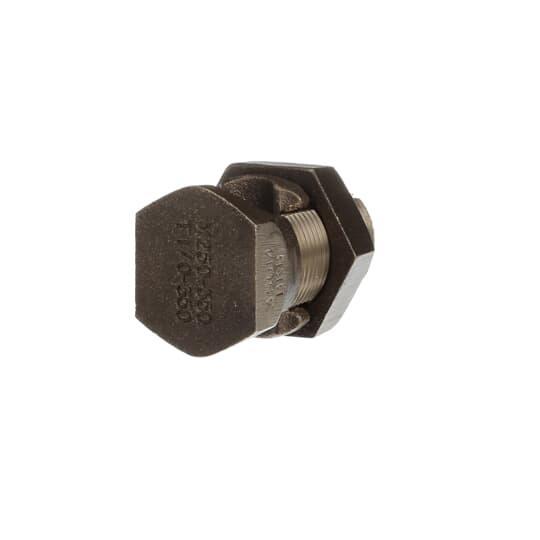

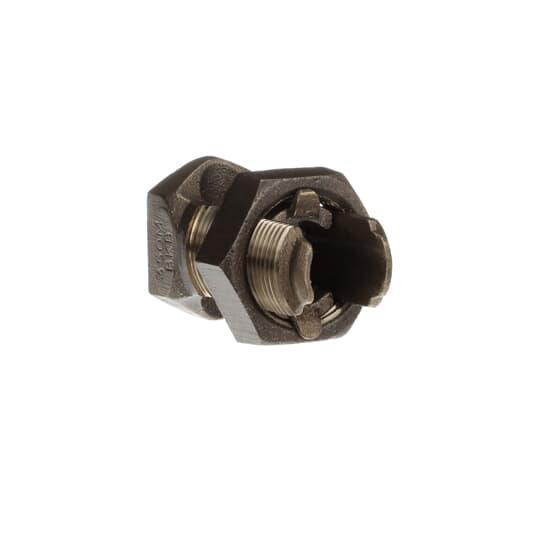

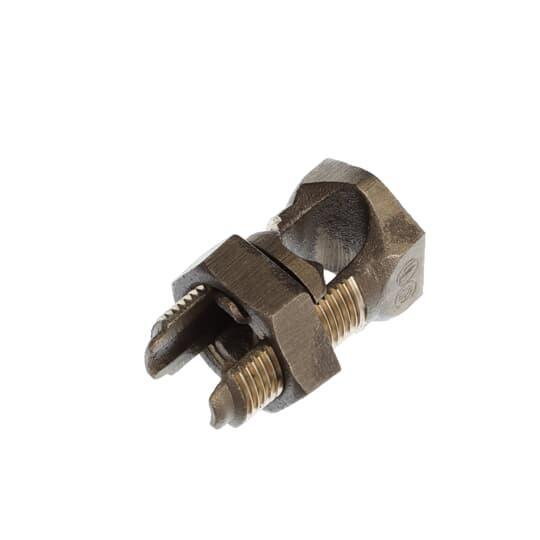

Blackburn® 350M Type H High Strength Split Bolt Connector, 250 to 350 kcmil Stranded Copper Conductor, 1-5/16 x 2-11/16 in Bolt, Bronze Alloy
Brand: Blackburn®
Item ID: 5797
MPN: 350M
Login for Price
Features
- Bolt and nut of high-strength corrosion resistant bronze alloy
- Pressure bar is copper through 40H, copper alloy for 350 kcmil and above
- Bolt and nut of hex design up to 350 kcmil
- Split-bolt connector made of metallic bronze alloy for use on copper conductors
- 1/0 AWG stranded conductor range min tap with one max main
- 350 kcmil to 250 kcmil conductor range for equal main and tap
- 1 Piece/Pack
Description
Blackburn® 350M Split Bolt Connector, Type H High Strength, Stranded Copper Conductor, 250 to 350 kcmil Conductor, 1-5/16 x 2-11/16 in Bolt, Specifications: 0.717 in Split, 1-21/32 in Hex Nut, Bronze Alloy, Metallic
Specifications
Bolt Size |
1-5/16 x 2-11/16 in |
Color |
Metallic |
Conductor Size |
250 to 350 kcmil |
Conductor Type |
Stranded Copper |
Material |
Bronze Alloy |
Specifications |
0.717 in Split, 1-21/32 in Hex Nut |
Type |
Type H High Strength |
Standard Approval |
UL File No. E9809|CSA Certified |
Application |
For splicing, tapping or terminating conductors in power and grounding electrical connection |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_478157f178db6516cd6104fa421e60b92817e8a4d40d91a2468c4cfd7ba34680.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Blackburn_10AAW_Specification_Sheet.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6eace66fad627149ffa80657d90e9a7dc4ca40ed850f22b92b86d7a87dd4e189.pdf
