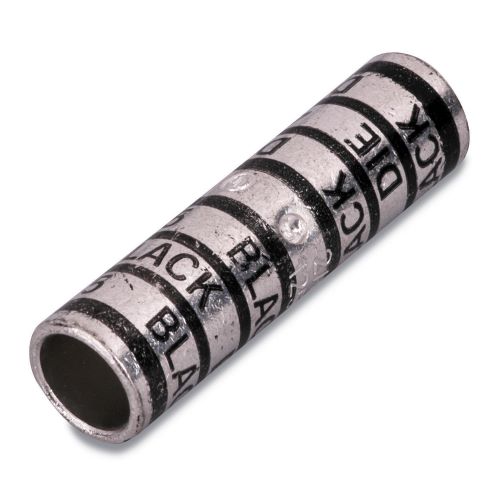

Color-Keyed® 54805
Color-Keyed® 54805 2-Way Long Barrel Splice Connector, 6 AWG Copper Conductor, Die Code: 24, 1-3/4 in L, Copper
Brand: Color-Keyed®
Item ID: 5828
MPN: 54805
Login for Price
Features
- 2-way connector provides high pullout values, easy-to insulate and provide a low resistance connection of high quality and low installed cost
- Color coded for correct matching of installing die and connector
- 35 kV voltage rating
- 61/24 = 24.6 kcmil wire size flex
Description
Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®.
Color-Keyed® Splice Connector, 2-Way Long Barrel, Copper Conductor, 6 AWG Conductor, Die Code: 24, 600 VAC, 0.31 in OD, 1-3/4 in Length, Specifications: Tin Plated, Copper, Blue Color Code
Specifications
Color Code |
Blue |
Conductor Size |
6 AWG |
Conductor Type |
Copper |
Die Code |
24 |
Length |
1-3/4 in |
Material |
Copper |
Outside Diameter |
0.31 in |
Specifications |
Tin Plated |
Type |
2-Way Long Barrel |
Voltage Rating |
600 VAC |
Standard Approval |
CSA Certified|UL File No. E9809 |
Documentation
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Color-Keyed_54809_Installation_Manual_CA.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_62a7ad253d9396636a2bc4259f1a6bada30bf5842070b431a7db72cdc4d7b50a.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Color-Keyed_54809_Specification_Sheet.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e36e6e0f61271c45939f95bc7c0ae939a3b2d5cf6b34f4f46d1caa4c53378ec9.pdf
