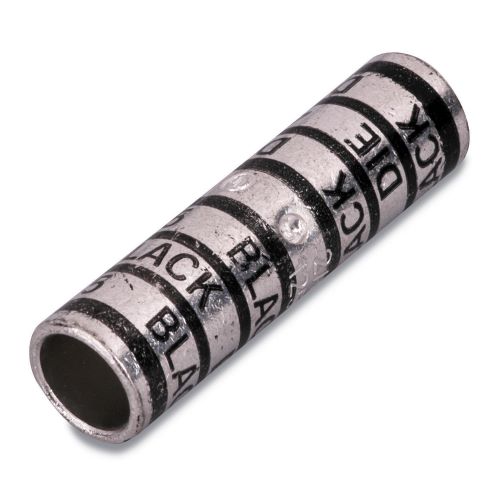

Color-Keyed® 54809 2-Way Long Barrel Splice Connector, 1/0 AWG Copper Conductor, Die Code: 42, 2 in L, Copper
Brand: Color-Keyed®
Item ID: 5815
MPN: 54809
Login for Price
Features
- 2-way connector provides high pullout values, easy-to insulate and provide a low resistance connection of high quality and low installed cost
- Color coded for correct matching of installing die and connector
- 35 kV voltage rating
- 225/24 = 90.8 kcmil wire size flex
Description
Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®.
Color-Keyed® Splice Connector, 2-Way Long Barrel, Copper Conductor, 1/0 AWG Conductor, Die Code: 42, 600 VAC, 0.54 in OD, 2 in Length, Specifications: Tin Plated, Copper, Pink Color Code
Specifications
Color Code |
Pink |
Conductor Size |
1/0 AWG |
Conductor Type |
Copper |
Die Code |
42 |
Length |
2 in |
Material |
Copper |
Outside Diameter |
0.54 in |
Specifications |
Tin Plated |
Type |
2-Way Long Barrel |
Voltage Rating |
600 VAC |
Standard Approval |
CSA No. 4503|UL File No. E9809 |
