Color-Keyed® 54866BE

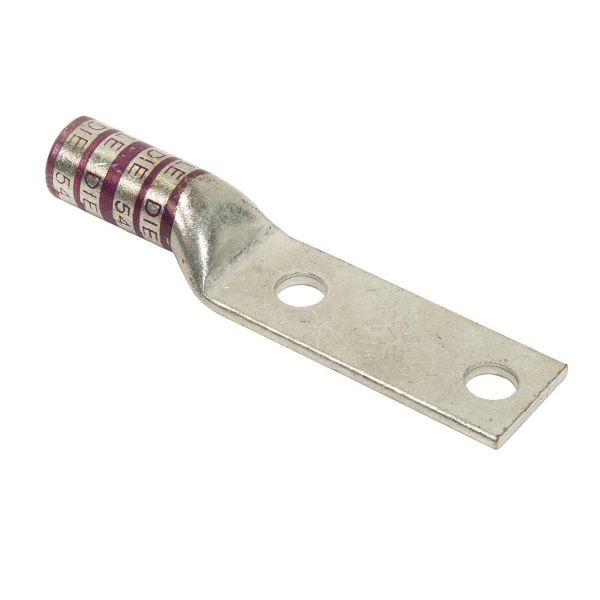

Color-Keyed® 54866BE 54800 2-Hole Non-Insulated Compression Lug, 4/0 AWG Copper Conductor, Die Code: 54, 1/2 in Stud, Copper
Brand: Color-Keyed®
Item ID: 5808
MPN: 54866BE
Login for Price
Features
- Tin plated finish
Description
The Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®. When using the Color-Keyed® compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.
Color-Keyed® Compression Lug, 2-Hole Non-Insulated, Series: 54800, Copper Conductor, 4/0 AWG Conductor, Die Code: 54, 35 kV, 1/2 in Stud, Straight Tongue, 3 in L x 1.03 in W x 0.14 in THK Tongue, 4.7 in Overall Length, Blind End/Long Barrel, 0.7 in Dia Barrel, Specifications: 1-3/4 in Stud Hole Spacing, Tin Plated, 0.531 in Mounting Hole, Copper, Purple
Specifications
Barrel Size |
0.7 in Dia |
Barrel Type |
Blind End/Long |
Color |
Purple |
Conductor Size |
4/0 AWG |
Conductor Type |
Copper |
Die Code |
54 |
Material |
Copper |
Mounting Hole Size |
0.531 in |
Overall Length |
4.7 in |
Series |
54800 |
Specifications |
1-3/4 in Stud Hole Spacing, Tin Plated |
Stud Size |
1/2 in |
Tongue Size |
3 in L x 1.03 in W x 0.14 in THK |
Tongue Type |
Straight |
Type |
2-Hole Non-Insulated |
Voltage Rating |
35 kV |
Standard Approval |
CSA Certified|UL File No. E9809 |
Application |
For providing a high degree of reliability in electrical wiring |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e74db79a553290909c8fb7894f3048636b47f832566190795aae74ee9e21e9bd.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Color-Keyed_54819BE_Installation_Manual_CA.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_c14edeb39ef80908b8d09244cbf018dbc399c7cca5df5bf37af6a473cfefd6dd.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Color-Keyed_256306951159PH_Specification_Sheet.pdf
