Color-Keyed® 54880BE

• Connectors have colored bands or colored dots that correspond to color markings on the dies
• Color-Keyed® connectors are banded by colored stripes or engraving to indicate location of die on connector for compression
• Connection by compression
• High quality connection at a low installed cost
• High conductivity wrought copper construction
• Tin plated finish

The Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®. When using the Color-Keyed® compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.

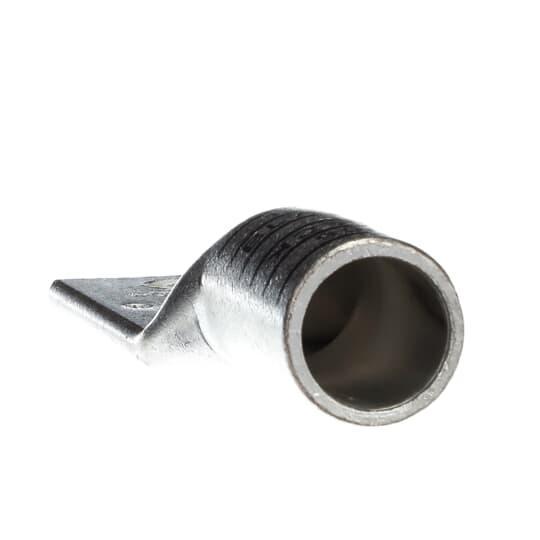

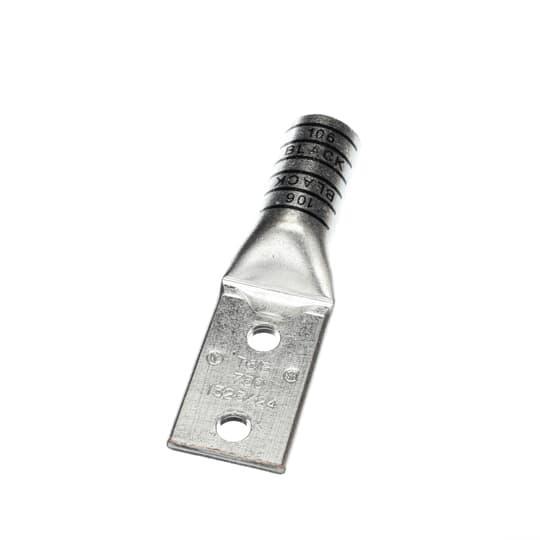

Color-Keyed® Compression Lug, 2-Hole Non-Insulated, Series: 54800, Copper Conductor, 750 kcmil Conductor, Die Code: 106, 35 kV, 1/2 in Stud, Straight Tongue, 3 in L x 1.94 in W x 0.27 in THK Tongue, 6.2 in Overall Length, Blind End/Long Barrel, 1.33 in Dia Barrel, Specifications: 1-3/4 in Stud Hole Spacing, Tin Plated, 0.531 in Mounting Hole, Copper, Black
