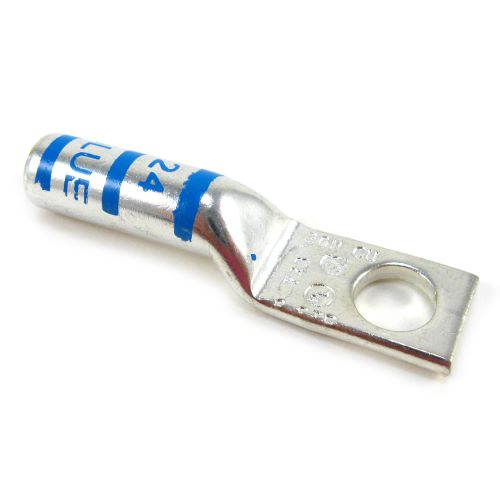

Color-Keyed® 54905BE

• Connectors have colored bands or colored dots that correspond to color markings on the dies
• Color-Keyed® connectors are banded by colored stripes or engraving to indicate location of die on connector for compression
• Connection by compression
• High quality connection at a low installed cost
• High conductivity wrought copper construction
• 1/4 in hole center to end
• Tin plated finish

The Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®. When using the Color-Keyed® compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.

Color-Keyed® Compression Lug, 1-Hole Non-Insulated, Series: 54900, Copper/Stranded Conductor, 6 AWG Conductor, Die Code: 24, 35 kV, 1/4 in Stud, Straight Tongue, 0.65 in L x 0.44 in W x 0.08 in THK Tongue, 1.65 in Overall Length, Blind End/Long Barrel, 0.3 in Dia Barrel, Specifications: 1/4 in Center of Hole to Tongue End, Tin Plated, 0.281 in Mounting Hole, Copper, Blue
