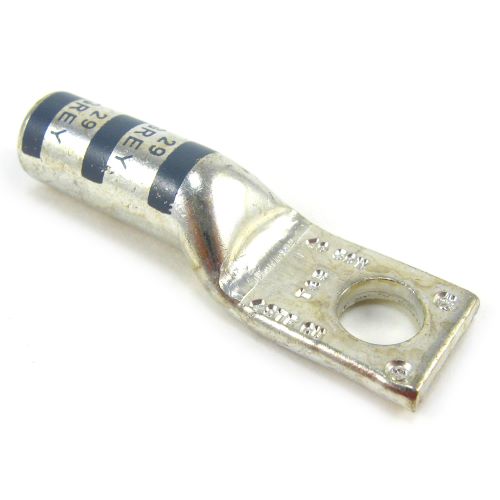

Color-Keyed® 54906BE 54900 1-Hole Non-Insulated Compression Lug, 4 AWG Copper/Stranded Conductor, Die Code: 29, 1/4 in Stud, Copper
Brand: Color-Keyed®
Item ID: 71936
MPN: 54906BE
Login for Price
Features
- Connectors have colored bands or colored dots that correspond to color markings on the dies
- Color-Keyed® connectors are banded by colored stripes or engraving to indicate location of die on connector for compression
- Connection by compression
- High quality connection at a low installed cost
- High conductivity wrought copper construction
- 1/4 in hole center to end
- Tin plated finish
Description
The Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®. When using the Color-Keyed® compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.
Color-Keyed® Compression Lug, 1-Hole Non-Insulated, Series: 54900, Copper/Stranded Conductor, 4 AWG Conductor, Die Code: 29, 35 kV, 1/4 in Stud, Straight Tongue, 0.65 in L x 0.52 in W x 0.1 in THK Tongue, 1.7 in Overall Length, Blind End/Long Barrel, 0.37 in Dia Barrel, Specifications: 1/4 in Center of Hole to Tongue End, Tin Plated, 0.281 in Mounting Hole, Copper, Gray
Specifications
Barrel Size |
0.37 in Dia |
Barrel Type |
Blind End/Long |
Color |
Gray |
Conductor Size |
4 AWG |
Conductor Type |
Copper/Stranded |
Die Code |
29 |
Material |
Copper |
Mounting Hole Size |
0.281 in |
Overall Length |
1.7 in |
Series |
54900 |
Specifications |
1/4 in Center of Hole to Tongue End, Tin Plated |
Stud Size |
1/4 in |
Tongue Size |
0.65 in L x 0.52 in W x 0.1 in THK |
Tongue Type |
Straight |
Type |
1-Hole Non-Insulated |
Voltage Rating |
35 kV |
Standard Approval |
CSA C22.2 File No. 65/04|UL 486A/467 File No. E9809 |
Application |
For providing a high degree of reliability in electrical wiring |
