Color-Keyed® 60516

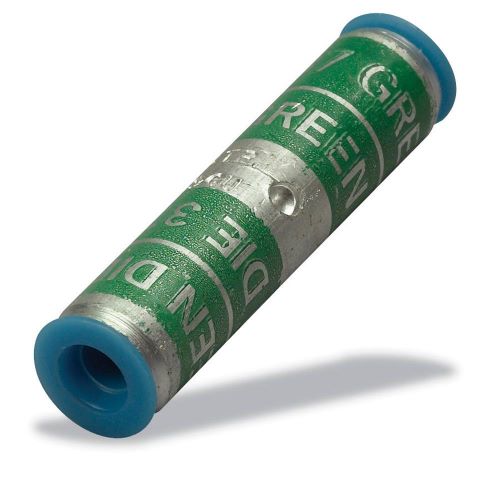

Color-Keyed® 60516 2-Way Standard Barrel Splice Connector, 2/3 AWG Compact/Concentric/Stranded Aluminum/Copper Conductor, Die Code: 42, 1.81 in L, Aluminum
Brand: Color-Keyed®
Item ID: 5824
MPN: 60516
Login for Price
Features
- For aluminum and copper concentric conductors and compact code aluminum strands
- Connectors supplied with T&B® oxide inhibitor compound in wire bore
- Permits aluminum conductors to be spliced to copper or aluminum conductors
- Tin plated finish
- Recommended for use with TBM5,TBM5S,TBM6,TBM6S,TBM8,TBM8S tool
Description
Designed for aluminum/copper metals, these two way connectors permit aluminum conductors to be spliced to copper conductors, as well as aluminum-to-aluminum conductors.
Color-Keyed® Splice Connector, 2-Way Standard Barrel, Compact/Concentric/Stranded Aluminum/Copper Conductor, 2/3 AWG Conductor, Die Code: 42, 35 kV, 0.51 in OD, 1.81 in Length, Specifications: Tin Plated, 90 deg C, Aluminum, Pink Color Code
Specifications
Color Code |
Pink |
Conductor Size |
2/3 AWG |
Conductor Type |
Compact/Concentric/Stranded Aluminum/Copper |
Die Code |
42 |
Length |
1.81 in |
Material |
Aluminum |
Outside Diameter |
0.51 in |
Specifications |
Tin Plated |
Temperature Rating |
90 deg C |
Type |
2-Way Standard Barrel |
Voltage Rating |
35 kV |
Standard Approval |
CSA Certified|UL File No. E9809 |
Application |
For aluminum to copper or aluminum to aluminum splicing |
Documentation
SDS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_da1ca44bec0d1189abd4904ce8b9a9cca19f007e04b28c364fd5317358131dc3.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Color-Keyed_60576_Specification_Sheet.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_2b7c000724d98e8092d3afc508e2d5669e164fd382f0fde1e905ca3531a54f4d.pdf
