Color-Keyed® 60530-TB

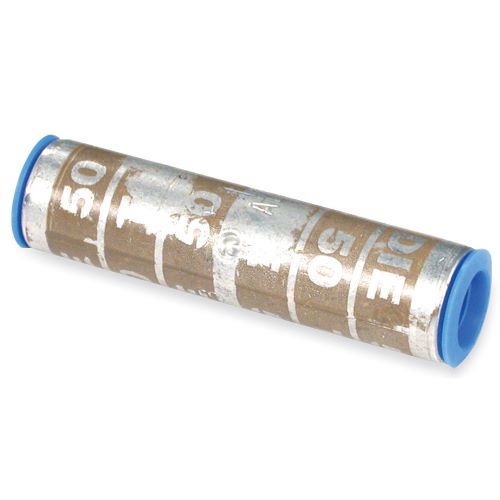

Color-Keyed® 60530-TB 2-Way Splice Connector, 1/0 AWG Compact/Concentric/Stranded Aluminum/Copper Conductor, Die Code: 50, 2.38 in L, Aluminum
Brand: Color-Keyed®
Item ID: 5816
MPN: 60530-TB
Login for Price
Features
- Connectors supplied with T&B® oxide inhibitor compound in wire bore
- For 90 deg C certified to 600 VAC and recommended up to 35 kVAC applications
- For aluminum and copper concentric conductors and compact code aluminum strands
- Permits aluminum conductors to be spliced to copper or aluminum conductors
- TBM5, TBM5S, TBM6, TBM6S, TBM8 and TBM8S application tools
Description
Color-Keyed® Splice Connector, 2-Way, Compact/Concentric/Stranded Aluminum/Copper Conductor, 1/0 AWG Conductor, Die Code: 50, 35 kV, 0.62 in OD, 2.38 in Length, Specifications: Tin Plated, 90 deg C, Aluminum, Tan Color Code
Specifications
Color Code |
Tan |
Conductor Size |
1/0 AWG |
Conductor Type |
Compact/Concentric/Stranded Aluminum/Copper |
Die Code |
50 |
Length |
2.38 in |
Material |
Aluminum |
Outside Diameter |
0.62 in |
Specifications |
Tin Plated |
Temperature Rating |
90 deg C |
Type |
2-Way |
Voltage Rating |
35 kV |
Standard Approval |
CSA Certified|UL File No. E9809 |
Application |
For aluminum to copper or aluminum to aluminum splicing |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Color_Keyed_60530_TB_Manual.pdf
SDS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_da1ca44bec0d1189abd4904ce8b9a9cca19f007e04b28c364fd5317358131dc3.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Color-Keyed_60576_Specification_Sheet.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_2b7c000724d98e8092d3afc508e2d5669e164fd382f0fde1e905ca3531a54f4d.pdf
