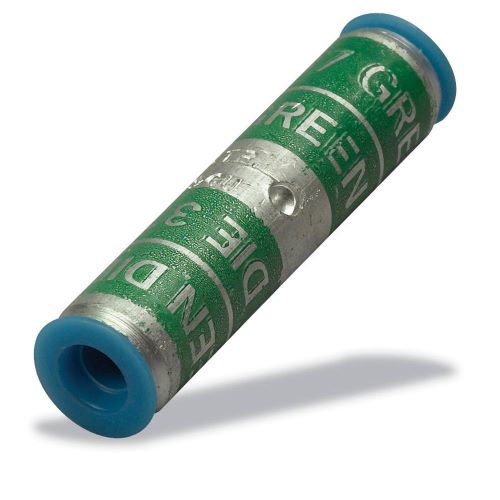

Color-Keyed® 60571

• Manufactured from high conductivity wrought aluminum and electro tin plated
• Connectors are pre-filled with oxide inhibitor
• Permits aluminum conductors to be spliced to copper or aluminum conductors
• For aluminum and copper concentric conductors and compact code aluminum strands
• Connectors supplied with T&B® oxide inhibitor compound in wire bore

Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®. When using the Color-Keyed® compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.

Color-Keyed® Splice Connector, 2-Way Standard Barrel, Compact/Concentric/Stranded Aluminum/Copper Conductor, 500 kcmil Conductor, Die Code: 99, 35 kV, 1.28 in OD, 4.97 in Length, Specifications: Tin Plated, 90 deg C, Aluminum, Pink Color Code
