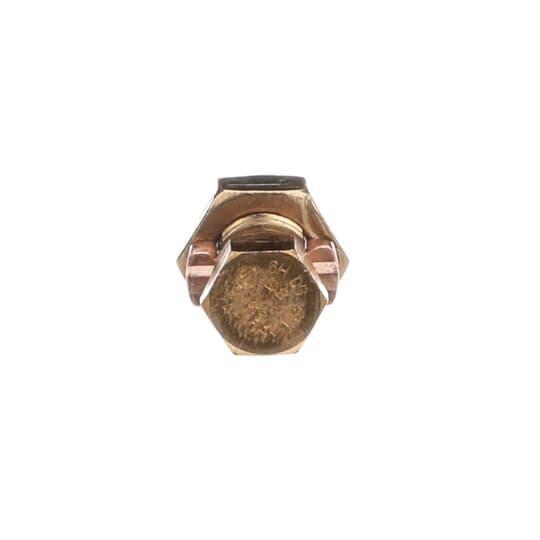

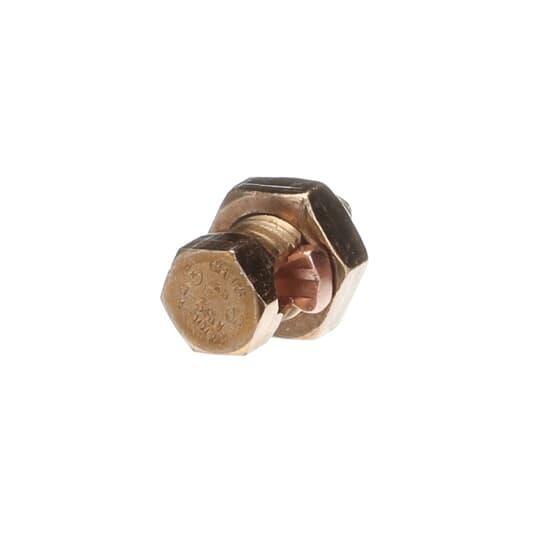

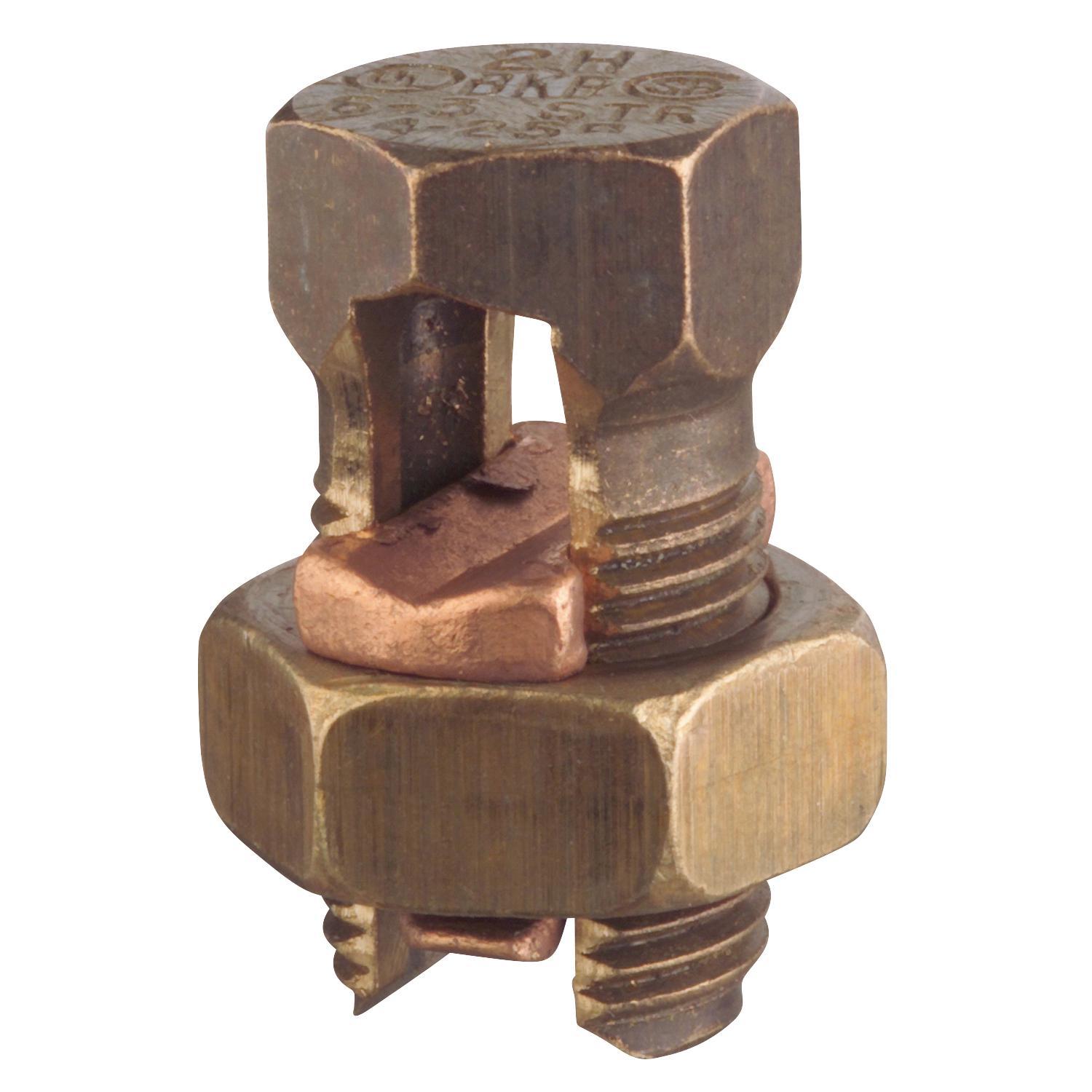

Blackburn® 6H
Blackburn® 6H Type H High Strength Split Bolt Connector, 8 to 6 AWG Solid Copper Conductor, 15/32 x 31/32 in Bolt, Bronze Alloy
Brand: Blackburn®
Item ID: 5790
MPN: 6H
Login for Price
Features
- Bolt and nut of high-strength corrosion resistant bronze alloy
- Pressure bar is copper through 40H, copper alloy for 350 kcmil and above
- Bolt and nut of hex design up to 350 kcmil
- Split-bolt connector made of metallic bronze alloy for use on copper conductors
- 14 AWG solid conductor range min tap with one max main
- 6 to 8 AWG solid conductor range for equal main and tap
- 100 Pieces/Pack
Description
Blackburn® 6H Split Bolt Connector, Type H High Strength, Solid Copper Conductor, 8 to 6 AWG Conductor, 15/32 x 31/32 in Bolt, Specifications: 0.17 in Split, 21/32 in Hex Nut, Bronze Alloy, Metallic
Specifications
Bolt Size |
15/32 x 31/32 in |
Color |
Metallic |
Conductor Size |
8 to 6 AWG |
Conductor Type |
Solid Copper |
Material |
Bronze Alloy |
Specifications |
0.17 in Split, 21/32 in Hex Nut |
Type |
Type H High Strength |
Standard Approval |
UL File No. E9809|CSA Certified |
Application |
For splicing, tapping or terminating conductors in power and grounding electrical connection |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_478157f178db6516cd6104fa421e60b92817e8a4d40d91a2468c4cfd7ba34680.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Blackburn_10HPS_Specification_Sheet_CA.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Blackburn_10HPS_Specification_Sheet_CA.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6eace66fad627149ffa80657d90e9a7dc4ca40ed850f22b92b86d7a87dd4e189.pdf
