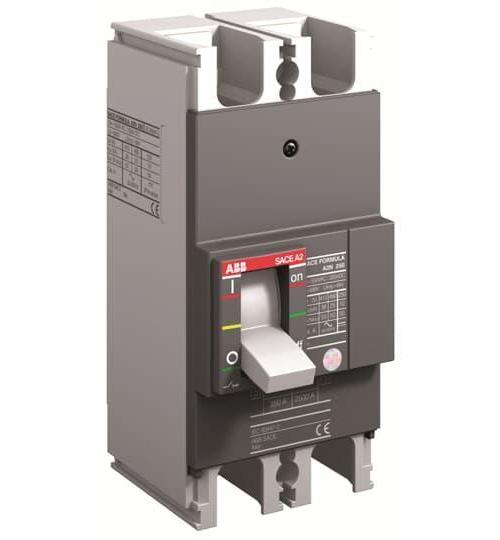

ABB A2N200TW-2
ABB A2N200TW-2 Low Voltage Normal Interrupt Molded Case Circuit Breaker, 240 VAC, 250 VDC, 200 A, 25 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Brand: ABB
Item ID: 572975
MPN: A2N200TW-2
Login for Price
Features
- Quick and easy selection and ordering with few, but essential, versions of circuit breakers
- Multiple polarities, dedicated to various applications
- Accompanying accessory line
- Reduced circuit breaker depths
- 25 kA at 240 VAC/VDC interrupt current rating
- Smaller size with full protection
- 250 A frame rating
Description
FORMULA is the cumulation of ABB SACE's long history of developing effective circuit breakers. It was developed to be simple, but amazes with its extreme quality and versatility.
ABB Molded Case Circuit Breaker, Low Voltage Normal Interrupt, 240 VAC, 250 VDC, 200 A, 50/60 Hz Frequency, 25 kA Interrupt, A2N 250A Frame, Thermal Magnetic Trip, 200 to 2000 A Trip, 2 Pole, Front Connection, DIN Rail/Fixed Mounting, -13 to 158 deg F, 5.91 in H x 2.76 in W x 2.36 in D Dimensions
Specifications
Amperage Rating |
200 A |
Connection Type |
Front |
Dimensions |
5.91 in H x 2.76 in W x 2.36 in D |
Frame |
A2N 250A |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
25 kA |
Mounting Type |
DIN Rail/Fixed |
Number of Poles |
2 |
Temperature Rating |
-13 to 158 deg F |
Trip Range |
200 to 2000 A |
Trip Type |
Thermal Magnetic |
Type |
Low Voltage Normal Interrupt |
Voltage Rating |
240 V AC/250 V DC |
Standard Approval |
UL 489|IEC 60947-2 |
Application |
For power distribution and panelboards with 125 to 250 A capacity |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/ABB_A2N200TW-2_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/ABB_A2N200TW-2_Specification_Sheet.pdf
