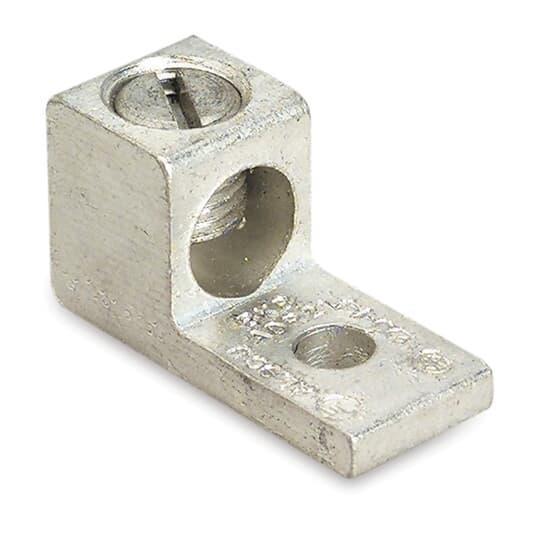

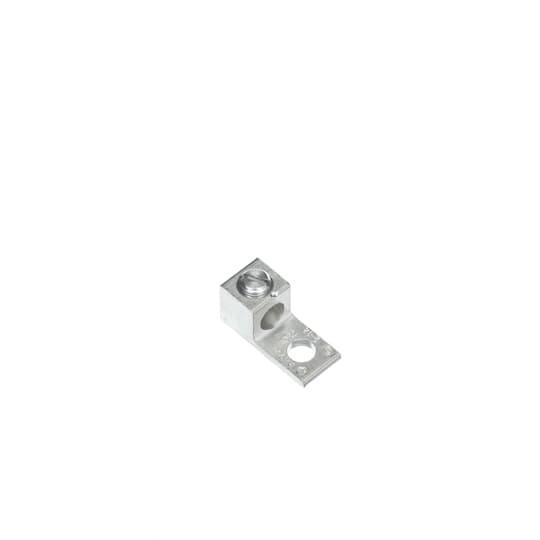

Blackburn® ADR2
Blackburn® ADR2 Type ADR-ALCUL Dual Rated Mechanical Connector, 14 to 2 AWG Aluminum/Stranded Copper Conductor, 1/4 in Stud, 1 Bolt Holes, Aluminum
Brand: Blackburn®
Item ID: 5778
MPN: ADR2
Login for Price
Features
- Easy installation - no special tools required
- Tin plated for low contact resistance
- Extra aluminum lug
- Slotted screw-on lugs up through 2/0 stranded
Description
Blackburn® cast, forged or formed mechanical connections, produced in economical copper and dual-rated aluminum, provide unequaled variety with a large variety of UL and CSA certified solutions for your electrical interface needs.
Blackburn® ADR2 Mechanical Connector, Type ADR-ALCUL Dual Rated, Aluminum/Stranded Copper Conductor, 14 to 2 AWG Conductor, 1/4 in Stud, 1 Bolt Holes, 11/16 in L x 1/2 in W x 7/64 in THK Tongue, Straight Tongue, 600 VAC, Specifications: 1-Conductor, Slotted Screw, 1/4 in Hole Spacing, Aluminum, Tin Coated, 1-5/32 in L x 1/2 in W x 9/16 in H Dimensions
Specifications
Conductor Size |
14 to 2 AWG |
Conductor Type |
Aluminum/Stranded Copper |
Dimensions |
1-5/32 in L x 1/2 in W x 9/16 in H |
Finish |
Tin Coated |
Material |
Aluminum |
Number of Bolt Holes |
1 |
Specifications |
1-Conductor, Slotted Screw, 1/4 in Hole Spacing |
Stud Size |
1/4 in |
Tongue Size |
11/16 in L x 1/2 in W x 7/64 in THK |
Tongue Type |
Straight |
Type |
Type ADR-ALCUL Dual Rated |
Voltage Rating |
600 VAC |
Standard Approval |
CSA Certified|UL File No. E9809 |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_ca2403e3d35c034a6f4f2def1ee778d3cc98db7081664b0e7b0c69b95b2b230a.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Blackburn_ADR6_Installation_Manual.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1fb2a88e576996331d6baea6ad54dbc8f79b65dee375796a327e6c7d1e507e2e.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_7e0043e44575ca7b9a3d0d63b92698f0517a319e0246d59bff4251d18b2fecc6.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Blackburn_ADR6_Specification_Sheet.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5e138f7f7990f5b37fbdbbb21f900d22e9741565356bed15aef2ef1bc6bdf55a.pdf
