Blackburn® ADR35-21

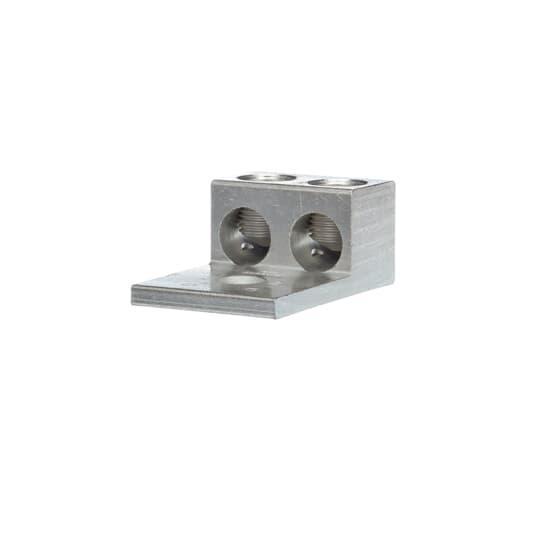

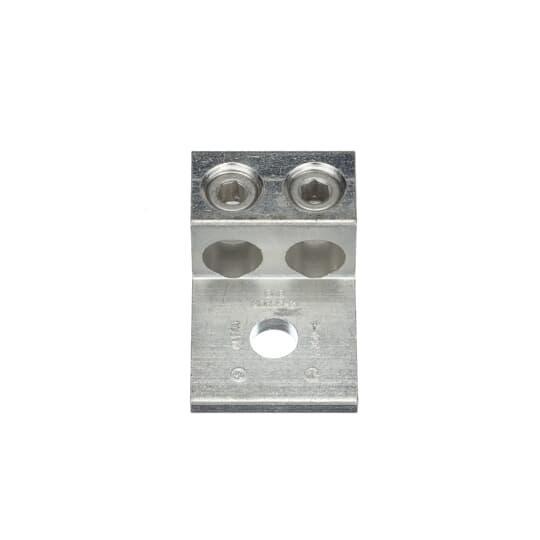

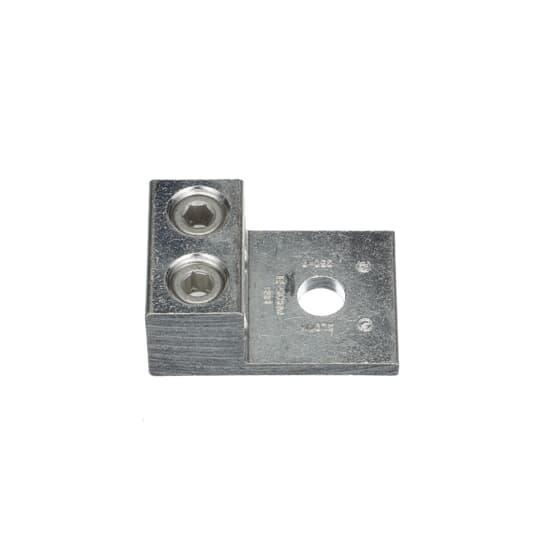

Blackburn® ADR35-21 Type ADR-ALCUL Dual Rated Mechanical Connector, 6 AWG to 350 kcmil Aluminum/Stranded Copper Conductor, 1/2 in Stud, 1 Bolt Holes, Aluminum
Brand: Blackburn®
Item ID: 5772
MPN: ADR35-21
Login for Price
Features
- Easy installation - no special tools required
- Extra aluminum lug
- Tin plated for low contact resistance
- Switch gear mounted
- 1 stud of 1/2 in
Description
Blackburn® cast, forged or formed mechanical connections, produced in economical copper and dual-rated aluminum, provide unequaled variety with a large variety of UL and CSA certified solutions for your electrical interface needs.
Blackburn® ADR35-21 Mechanical Connector, Type ADR-ALCUL Dual Rated, Aluminum/Stranded Copper Conductor, 6 AWG to 350 kcmil Conductor, 1/2 in Stud, 1 Bolt Holes, 1-1/3 in L x 1-59/64 in W x 1/4 in THK Tongue, Straight Tongue, Specifications: 2-Conductor, 61/64 in Hole Spacing, Aluminum, Tin Coated, 2-7/8 in L x 1-59/64 in W x 1-1/4 in H Dimensions
Specifications
Conductor Size |
6 AWG to 350 kcmil |
Conductor Type |
Aluminum/Stranded Copper |
Dimensions |
2-7/8 in L x 1-59/64 in W x 1-1/4 in H |
Finish |
Tin Coated |
Material |
Aluminum |
Number of Bolt Holes |
1 |
Specifications |
2-Conductor, 61/64 in Hole Spacing |
Stud Size |
1/2 in |
Tongue Size |
1-1/3 in L x 1-59/64 in W x 1/4 in THK |
Tongue Type |
Straight |
Type |
Type ADR-ALCUL Dual Rated |
Standard Approval |
CSA Certified|UL File No. E9809 |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_ca2403e3d35c034a6f4f2def1ee778d3cc98db7081664b0e7b0c69b95b2b230a.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Blackburn_ADR6_Installation_Manual.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1fb2a88e576996331d6baea6ad54dbc8f79b65dee375796a327e6c7d1e507e2e.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Blackburn_ADR31-32_Specification_Sheet.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_2b098f9192e51cb815e3cbf5fdce284fc1280af40dfaf0f2bd8ac562ea14bc94.pdf
