Kindorf® B-915-HD

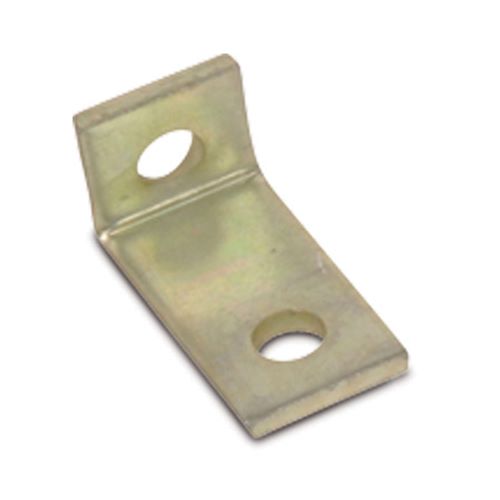

Kindorf® B-915-HD Angle Connector, 2 Holes, 3 in L x 1-1/2 in W, Steel
Brand: Kindorf®
Item ID: 284955
MPN: B-915-HD
Login for Price
Features
- 1-1/2 in length from beam
- 9/16 in holes on 1-1/2 in centers
- Superior corrosion protection
Description
The Kindorf® channel system is designed so that the maximum number of support and framing applications can be constructed with a minimum amount of labor and materials. The 1-1/2 in dimension in the channel, hole spacing and fittings means all parts fit together all the time. This modular system provides maximum flexibility in field applications and results is labor savings and reduced material waste.
Kindorf® Angle Connector, 2 Holes, 3 in Length, 1-1/2 in Width, 1/4 in Thickness, Steel, Hot Dipped Galvanized
Specifications
Finish |
Hot Dipped Galvanized |
Length |
3 in |
Material |
Steel |
Number of Holes |
2 |
Thickness |
1/4 in |
Width |
1-1/2 in |
Application |
For used as side beam connector to suspend 1/2 in hanger rod |
Documentation
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d6e93e77f201c1454cc49039bcb5d4ff2f0708ad1e165fbe004bee09b7fe7e50.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Kindorf_B-915_Specification_Sheet.pdf
