Kindorf® C-105-4

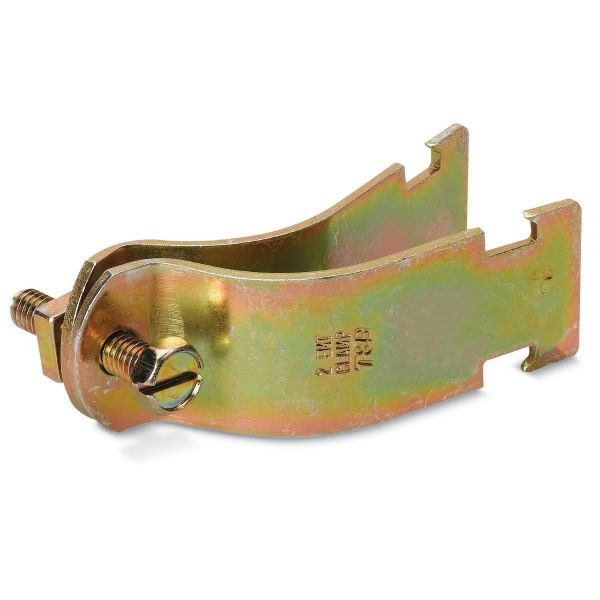

Kindorf® C-105-4 C105 Pipe Strap, 4 in Nominal, 1650 lb Load, 4-1/2 in OD, Steel
Brand: Kindorf®
Item ID: 15749
MPN: C-105-4
Login for Price
Features
- Kindorf® straps are pre-assembled for easy handling and sorting
- Bolt head is combination slot and hex head for flexibility of attachment
- Square nut is captivated on the shoulder for easy one handed tightening
- Straps are interchangeable with 1-5/8 in strut for broader application
- Straps are shipped assembled so counting and sorting are easier
- Pipe and conduit sizes are shown on the strap for easy identification
- Designed to be twist inserted anywhere along the slot side of the channel
- Pipes can be placed as closely as pipe couplings permit
- 1650 lb design load
Description
Kindorf® Pipe Strap, Series: C105, 4 in Nominal, 1650 lb, 4-1/2 in Outside Dia, 11 ga Thickness, For Use With: IMC/Rigid Conduit, Steel, Galv-Krom®
Specifications
Finish |
Galv-Krom® |
Load Capacity |
1650 lb |
Material |
Steel |
Nominal Size |
4 in |
Outside Diameter |
4-1/2 in |
Series |
C105 |
Suitable For Use With |
IMC/Rigid Conduit |
Thickness |
11 ga |
Standard Approval |
CSA Certified |
Documentation
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_2feda460ad2d852d85c3692a2d24c44d49ca3c34ddc873f7719c24cc0568cf7c.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Kindorf_C-105-1-1_2SS_Specification_Sheet.pdf
