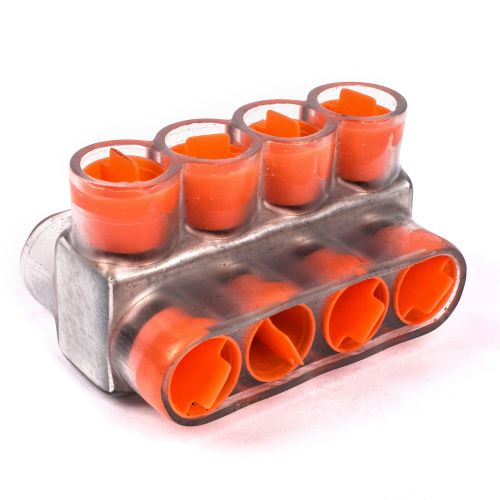

Homac® CSB-350-4
Homac® CSB-350-4 2-Way 4-Outlet Encapsulated Multi-Tap Cable Block, Aluminum/Copper/Stranded Conductor, Aluminum
Brand: Homac®
Item ID: 386853
MPN: CSB-350-4
Login for Price
Features
- Versatile design
- Clear PVC insulation and safe and time saving installation with no taping required
- Quick and easy to install in the field
- Dual rated for use with aluminum and copper conductors
- Above ground pedestal connectors
Description
Homac® is a complete line of Underground and Substation connectors and is recognized as an industry leader for its Flood-Seal® technologies and custom solutions.
Homac® Multi-Tap Cable Block, 2-Way 4-Outlet Encapsulated, Series: CSB, Aluminum/Copper/Stranded Conductor, 600 VAC, 10 AWG to 350 kcmil Wire Size, 3/8 in Hex Screw, Aluminum, 4.26 in L x 3 in W x 2.5 in H
Specifications
Conductor Type |
Aluminum/Copper/Stranded |
Dimensions |
4.26 in L x 3 in W x 2.5 in H |
Material |
Aluminum |
Series |
CSB |
Specifications |
10 AWG to 350 kcmil Wire Size, 3/8 in Hex Screw |
Type |
2-Way 4-Outlet Encapsulated |
Voltage Rating |
600 VAC |
Standard Approval |
UL E9809|CSA Approved |
Application |
Commercial and Industrial Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d10843769317e7f26d143d63449e40b57d352a8a85456ce1b08d72489b3b54f3.pdf
SDS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_54efd96734631a89642fd283019687a71b0674c3cb6c396739ae98be9f49449e.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Blackburn_CSB-350-2-S_Specification_Sheet_CA.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_ecd3a1bdb439e35509bb0c90c71f97fb884d67d7cb6344deaa174f48098f4518.pdf
