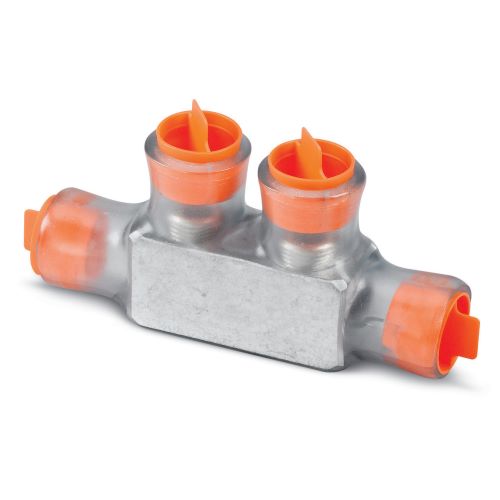

Homac® CSR-250
Homac® Blackburn® CSR-250 Encapsulated Insulated Single Sided AMT Connector, 6 AWG to 250 kcmil Aluminum/Copper/Stranded Conductor, 5/16 in Hex Screw Installation, Aluminum/PVC
Brand: Homac®
Item ID: 386859
MPN: CSR-250
Login for Price
Features
- Versatile, space saving design supports a wide range of cable sizes and number of outlets in one-way and two-way configurations
- Quick and easy to install in the field
- Dual rated for use with aluminum or copper conductors
- Clear PVC insulated versions meet or exceed ANSI C119.4 specifications
Description
Blackburn® insulated aluminum multi-tap connectors make it easy to install splices, taps and terminations in the field. PVC coating provides built-in insulation, eliminating the need for time consuming taping.
Homac® Blackburn® AMT Connector, Encapsulated Insulated Single Sided, Aluminum/Copper/Stranded Conductor, 6 AWG to 250 kcmil Conductor, 5/16 in Hex Screw Installation, 600 V, Specifications: Clear, Aluminum/PVC, 4 in L x 1.06 in W x 2 in H Dimensions
Specifications
Conductor Size |
6 AWG to 250 kcmil |
Conductor Type |
Aluminum/Copper/Stranded |
Dimensions |
4 in L x 1.06 in W x 2 in H |
Installation Type |
5/16 in Hex Screw |
Material |
Aluminum/PVC |
Specifications |
Clear |
Type |
Encapsulated Insulated Single Sided |
Voltage Rating |
600 V |
Standard Approval |
UL File No. E9809|CSA Approved |
Application |
Commercial and Industrial Applications |
Documentation
SDS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_54efd96734631a89642fd283019687a71b0674c3cb6c396739ae98be9f49449e.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Blackburn_CSR-350_Specification_Sheet.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5efceefac36eb22d0a100b8cc5b4e946a232bc9528d3358cb69fe0c3bb879424.pdf
