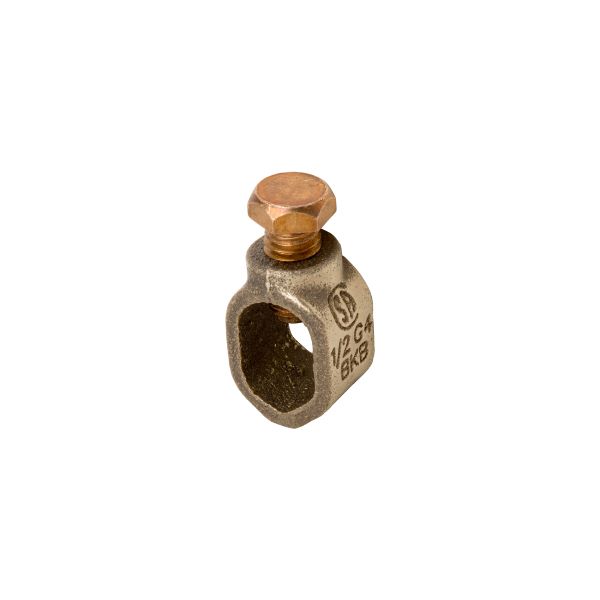

Blackburn® G4
Blackburn® E-Z Ground® G4 Type G Budget Line Non-Insulated Grounding Rod Clamp, 1/2 in Rod, 10 to 2 AWG Conductor, Copper
Brand: Blackburn®
Item ID: 542833
MPN: G4
Login for Price
Features
- Cast of high strength corrosion resistant copper alloy
- Furnished with hex head bolts, simplified, compact design makes lasting, trouble free connection
- A dependable ground connection offered at a substantial saving
- Simplified compact design will make a lasting, trouble free connection
- Without insulation
- UL listed for direct burial
- Hex head bolts
- 3/8-16 UNC-2A thread
Description
Blackburn® compression, mechanical and exothermic connectors and accessories represent the most comprehensive set of products in the industry for the creation of a safe, code compliant and reliable grounding system.
Blackburn® E-Z Ground® Grounding Rod Clamp, Type G Budget Line Non-Insulated, 1/2 in Rod, Copper/Solid/Stranded Conductor, 10 to 2 AWG Conductor, Copper, 27/32 in W x 3/8 in D
Specifications
Conductor Size |
10 to 2 AWG |
Conductor Type |
Copper/Solid/Stranded |

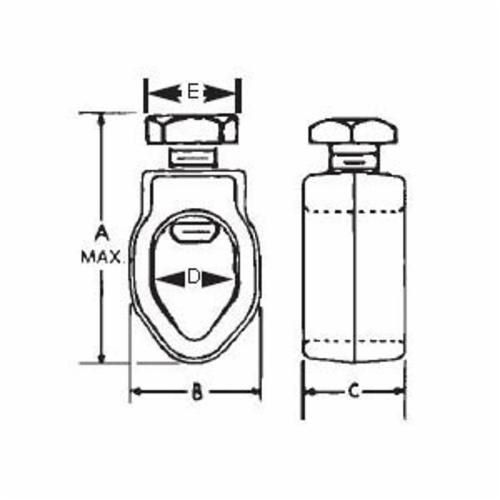

Dimensions |
27/32 in W x 3/8 in D |
Material |
Copper |
Rod Size |
1/2 in |
Type |
Type G Budget Line Non-Insulated |
Standard Approval |
CSA Certified|UL File No. E3060 |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Blackburn_G5_Catalog.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Blackburn_G5_Catalog.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_492db9659ea38ae892c9f2c2d467b34027022982052487f32775ff69bf55f3b5.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_492db9659ea38ae892c9f2c2d467b34027022982052487f32775ff69bf55f3b5.pdf
Blackburn® G4
