Blackburn® JDLI

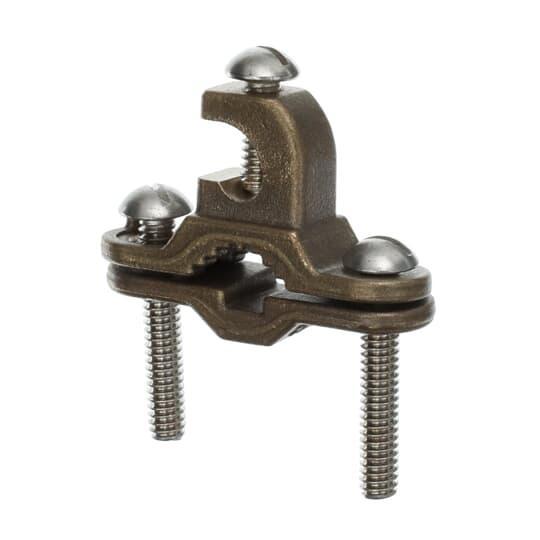

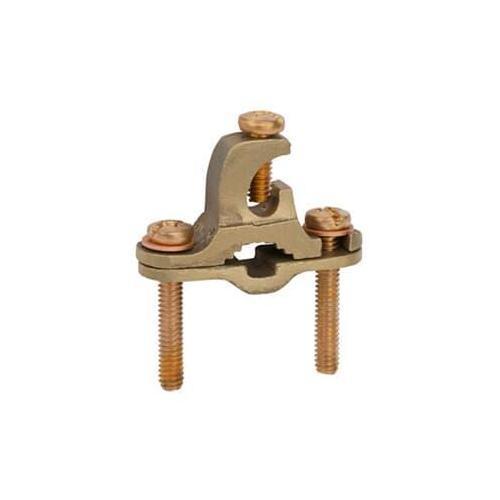

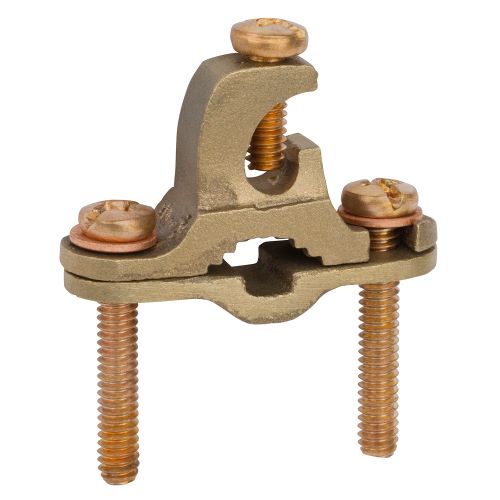

Blackburn® E-Z Ground® JDLI Type JDLI Non-Insulated Grounding Clamp, 1/4 to 1 in Rod, 10 to 2 AWG Conductor, Bronze
Brand: Blackburn®
Item ID: 353906
MPN: JDLI
Login for Price
Features
- Lay-in feature reduces installation time for difficult bends or continuous loops of ground wire
- Constructed from bronze alloy and high performance stainless steel bolt
- 3/8 to 1 in rebar
- Designed for easy installation of difficult bends or continuous loops
Description
Blackburn® compression, mechanical and exothermic connectors and accessories represent the most comprehensive set of products in the industry for the creation of a safe, code compliant and reliable grounding system.
Blackburn® E-Z Ground® Grounding Clamp, Type JDLI Non-Insulated, 1/2 to 1 in Pipe, 1/4 to 1 in Rod, Solid/Stranded Conductor, 10 to 2 AWG Conductor, Bronze
Specifications
Conductor Size |
10 to 2 AWG |
Conductor Type |
Solid/Stranded |
Material |
Bronze |
Pipe Size |
1/2 to 1 in |
Rod Size |
1/4 to 1 in |
Type |
Type JDLI Non-Insulated |
Standard Approval |
CSA Certified|UL File No. E3060 |
Application |
For direct burial in earth or concrete |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Blackburn_G5_Catalog.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Blackburn_JDLI_Specification_Sheet_CA.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_fc2f96bb9d468c9d8454109751353904aa0d3f660b506b97a1597ce3abe3e9f4.pdf
