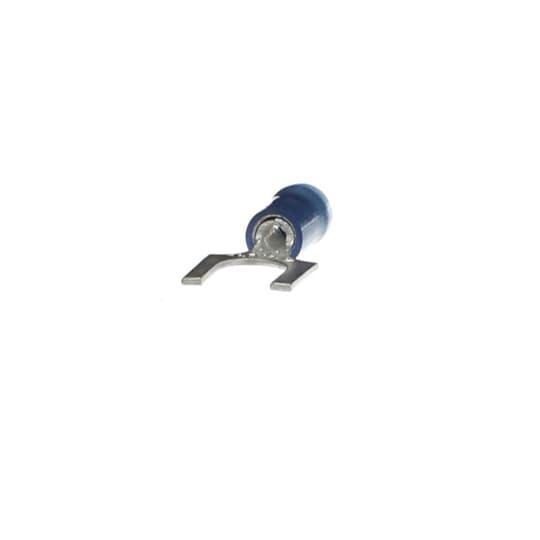

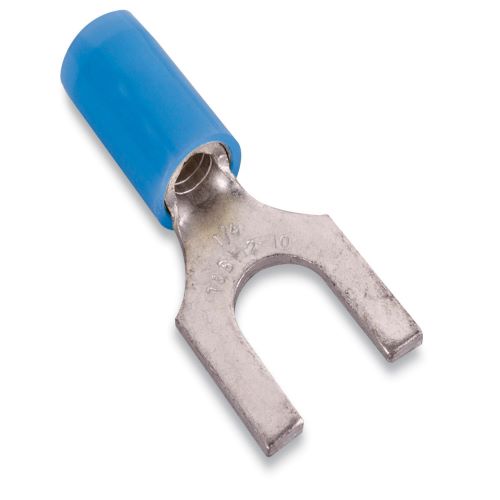

Sta-Kon® RB14-14F
Sta-Kon® RB14-14F RB Series Insulated Fork Terminal, 18 to 14 AWG Conductor, 0.95 in L, Brazed Seam/Serrated Barrel, Copper, Blue
Brand: Sta-Kon®
Item ID: 63072
MPN: RB14-14F
Login for Price
Features
- Nylon insulated with inner bronze insulation grip sleeve lengthens flex radius of conductor and eliminates conductor creep
- Brazed seam barrel is serrated for high pull-out value
- Nylon jacket is Color coded
- WT112M, WT145A, WT145C, WT2000, ERG4001, ERG4003 recommended tools
Description
Sta-Kon® Fork Terminal, Insulated, Series: RB Series, 18 to 14 AWG Conductor, 1/4 in Stud, 0.95 in Length, Brazed Seam/Serrated Barrel, Fork Tongue, 0.44 in W x 0.03 in THK Tongue, 600 VAC, Specifications: 0.19 in Dia Maximum Insulation, 0.28 in Clearance, Nylon Insulation, 105 deg C, Copper, Electroplated Tin, Blue
Specifications
Barrel Type |
Brazed Seam/Serrated |
Color |
Blue |
Conductor Size |
18 to 14 AWG |
Finish |
Electroplated Tin |
Length |
0.95 in |
Material |
Copper |
Series |
RB Series |
Specifications |
0.19 in Dia Maximum Insulation, 0.28 in Clearance, Nylon Insulation |
Stud Size |
1/4 in |
Temperature Rating |
105 deg C |
Tongue Size |
0.44 in W x 0.03 in THK |
Tongue Type |
Fork |
Type |
Insulated |
Voltage Rating |
600 VAC |
Standard Approval |
CSA Certified|UL 94 V-2 Flammability Rated|UL File No. E9809 |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d5d56696f2871dcc21c29783dbca298b06c027a82308820a88964dd87d1e0988.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sta-Kon_10RC-8FLX_Specification_Sheet.pdf
