Sta-Kon® RC10-250A

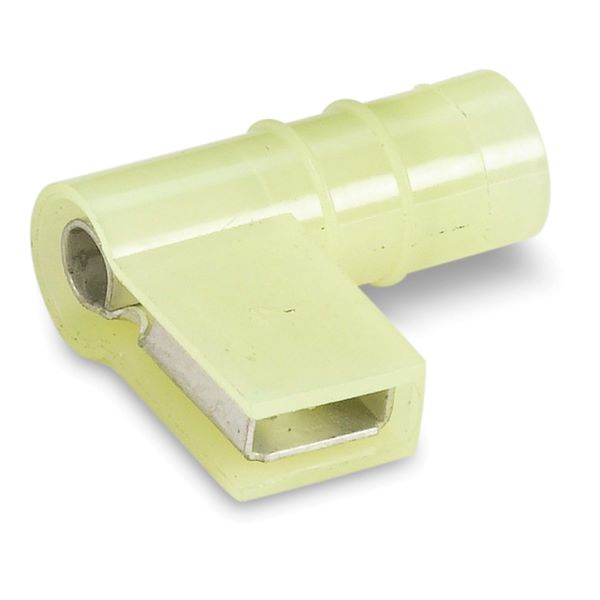

Sta-Kon® RC10-250A 90 deg Flag Open Top Female Disconnect, 12 to 10 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Brazed Seam Barrel, Brass, Yellow, Insulated
Brand: Sta-Kon®
Item ID: 63094
MPN: RC10-250A
Login for Price
Features
- Nylon insulated
- Unique construction of the female disconnect offers long term dependability
- Funnel entry insulators enable easier inserting of wire into barrel
- Brazed seam serrated barrel provides maximum tensile strength
- Suitable for use with WT145C, WT2000, WT112M, ERG4001, ERG4003 tools
- Color-coded for easy installation
Description
Wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat shrinkable terminals, splices and disconnects.
Sta-Kon® Female Disconnect, 90 deg Flag Open Top, Series: 250, 12 to 10 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Brazed Seam Barrel, Crimp Terminal, 600 VAC, 0.245 in Dia Maximum Insulation, 105 deg C, Brass, Yellow, Electroplated Tin, 0.8 in L x 0.88 in W, Insulated: Insulated
Specifications
Barrel Type |
Brazed Seam |
Color |
Yellow |
Conductor Size |
12 to 10 AWG |

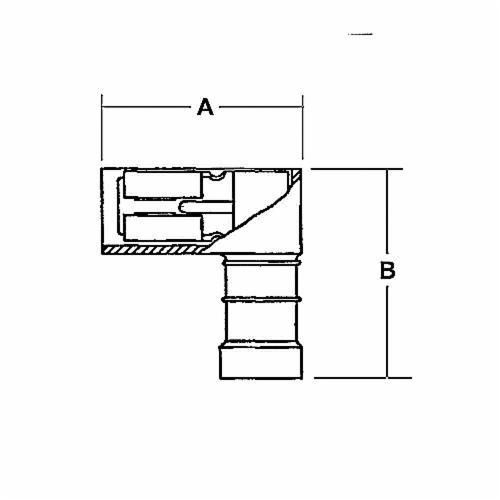

Dimensions |
0.8 in L x 0.88 in W |
Finish |
Electroplated Tin |
Insulated |
Insulated |
Material |
Brass |
Series |
250 |
Specifications |
0.245 in Dia Maximum Insulation |
Tab Size |
0.25 in W x 0.032 in THK |
Temperature Rating |
105 deg C |
Terminal Type |
Crimp |
Type |
90 deg Flag Open Top |
Voltage Rating |
600 VAC |
Standard Approval |
UL File No. E66716|CSA Certified|UL 94 V-0 Flammability Rating |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sta_Kon_14RB_2577_Catalog.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_56c912cc5b21ad25a667945f03e40062d869ea55a66b46b18f1904fca546a6e2.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sta-Kon_14RB-2577_Specification_Sheet.pdf
