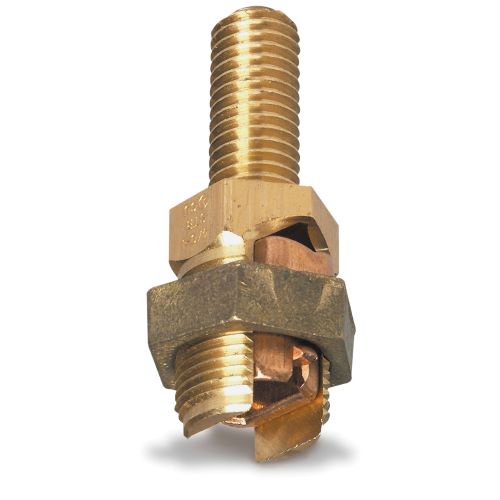

Blackburn® SP6DL
Blackburn® E-Z Ground® SP6DL Type SP Long Stud Non-Insulated Mechanical Service Post Connector, 2 Conductors, 2 to 2/0 AWG, 2 AWG Conductor, 1/2-13 x 11-1/4 in Stud, Bronze Alloy/Copper
Brand: Blackburn®
Item ID: 3781
MPN: SP6DL
Login for Price
Features
- Hex design bolts are machined from high conductivity bronze alloy
- Nuts and pressure bars are cold-formed from high strength copper or copper alloy
- Pressure bars are copper through 4/0 size, copper alloy is used for 350 kcmil size and above
Description
Blackburn® is a complete and reliable line of overhead, grounding, mechanical and compression connectors that respond to a broad range of construction needs.
Blackburn® E-Z Ground® Service Post Connector, Type SP Long Stud Non-Insulated Mechanical, 2 Conductors, 2 to 2/0 AWG, 2 AWG Conductor, 1/2-13 x 11-1/4 in Stud, Mechanical, For Use With: Steel Structure, Fence Post or Transformer and Bus Bar, 0.258 to 0.443 in Dia, Bronze Alloy/Copper
Specifications
Conductor Size |
2 to 2/0 AWG, 2 AWG |
Connection Type |
Mechanical |
Material |
Bronze Alloy/Copper |
Number of Conductors |
2 |
Specifications |
0.258 to 0.443 in Dia |
Stud Size |
1/2-13 x 11-1/4 in |
Suitable For Use With |
Steel Structure, Fence Post or Transformer and Bus Bar |
Type |
Type SP Long Stud Non-Insulated Mechanical |
Standard Approval |
CSA Certified|UL File No. E9809 |
Application |
For grounding and tapping |
Documentation
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_69f889aef3470b6f090d8cc6193357587c1f9672dc31b3b2413be69e05505555.pdf
