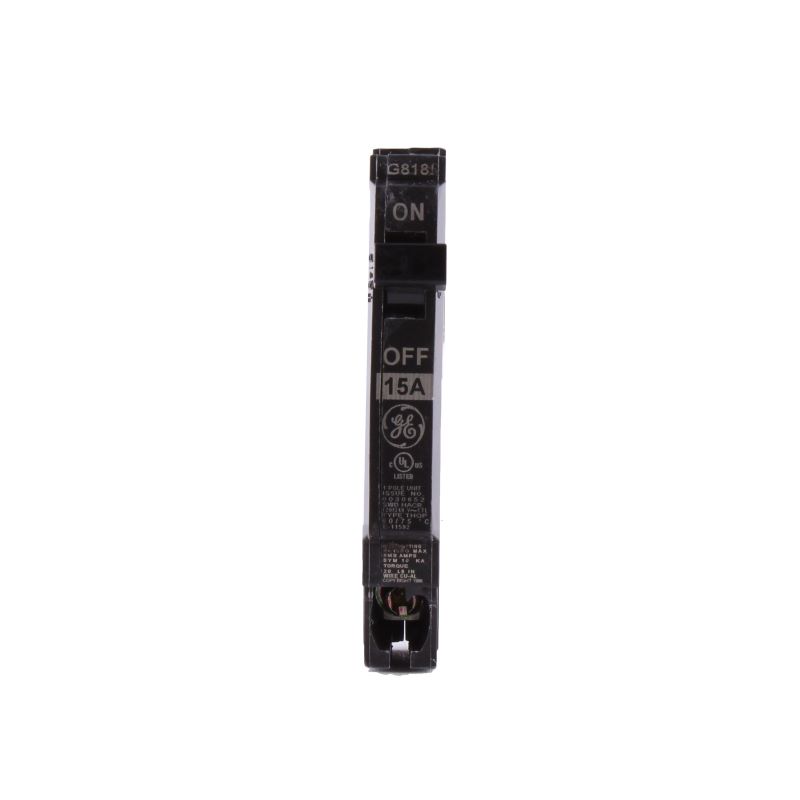

GE THQP115
GE Q-Line® THQP115 Type THQP Molded Case Circuit Breaker, 120/240 VAC, 15 A, 10 kA Interrupt, 1 Pole, LI/Non-Interchangeable Thermal Magnetic Trip
Brand: GE
Item ID: 68444
MPN: THQP115
Login for Price
Features
- LI - long time and instantaneous trip function
- R5 go schedule
- For heating, air conditioning and refrigeration
- Box lug load terminal
Description
THQP breakers are a smaller, smarter solution for today cost and quality conscious contractors and homeowners. Half the width of standard breakers, they allow use of smaller load centers and for maximum savings of space and money. GE is the only manufacturer that gives you this cost advantage without sacrificing flexibility. THQP breakers are one half the width of standard GE breakers but identical in design. They are available from 15 to 50 A and in 1 and 2-pole construction.
GE Q-Line® Molded Case Circuit Breaker, Type THQP, 120/240 VAC, 15 A, 10 kA Interrupt, Q-Line Frame, LI/Non-Interchangeable Thermal Magnetic Trip, 1 Pole, 1 ph, 14 to 8 AWG, 12 to 8 AWG Wire, Plug-In Mounting, 2-3/8 in L x 1 in W x 3-9/32 in H Dimensions
Specifications
Amperage Rating |
15 A |
Dimensions |
2-3/8 in L x 1 in W x 3-9/32 in H |
Frame |
Q-Line |
Interrupt Rating |
10 kA |
Mounting Type |
Plug-In |
Number of Poles |
1 |
Phase |
1 |
Trip Type |
LI/Non-Interchangeable Thermal Magnetic |
Type |
Type THQP |
Voltage Rating |
120/240 VAC |
Wire Size |
14 to 8 AWG, 12 to 8 AWG |
Standard Approval |
GSA Compliant|UL File No. E11592|HACR/SWD Rated |
Application |
Residential, Thermal Magnetic, Electrical Distribution and Control Applications |
Documentation
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_THQP115_Specification_Sheet.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_4ba76155340ed487ddd60184b41146d189ae8a9cf048ef2385c79cba7252e1a4.pdf
