GE TQD22100

• Molded case is molded from high mechanical and high dielectric strength engineered plastic
• Trip indication is shown by handle position midway between on and off, to reset the trip mechanism, move the handle to extreme off, then to on position
• Quick-make, quick-break, trip-free mechanism minimizes arcing during breaker operation, contacts cannot be ''teased'' into position
• Trip-free mechanism is independent of manual handle control, the breaker trips under short circuit or overload, even though the operating handle is held in on position
• VERIFIER™ "twist-to-trip" and ''push-to-trip'' mechanically simulates over current tripping through actuation of linkages not operated by the on-off handle
• Common trip bar assures instant disconnect of all conductors when an overload or short circuit occurs on any one conductor in the circuit or an accessory trip device operates
• Silver alloy contacts combine the conductive properties of silver with other elements for clean, positive electrical contacting, pitting and burning are minimized for longer contact life
• Arc chutes of heat absorbing, insulating material and metal grid plates quickly ''extinguish'' arcs
• UL listed lugs for copper or aluminum cable, at full frame rating, easy access and simple, straight-in wiring
• 10 kA at 120 VAC, 10 kA at 120/240 VAC, 10 kA at 240 VAC interrupt rating

The TQD line of devices include thermal magnetic molded case circuit breakers and molded case switches. The devices are complete with copper aluminum line and load lugs.

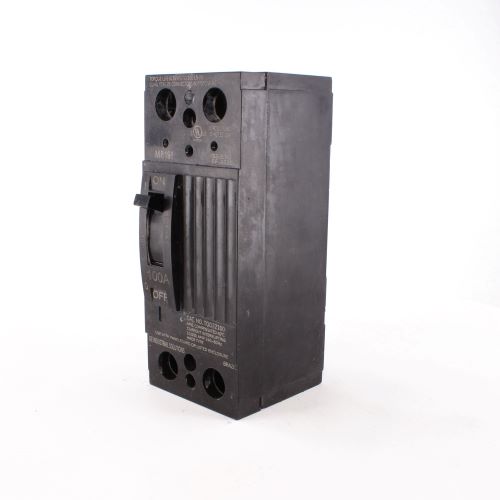

GE Q-Line® Molded Case Circuit Breaker, Type TQD Compact, 240 V AC, 100 A, 50/60 Hz Frequency, 10 kA Interrupt, Q-Line Frame, Thermal Magnetic Trip, 2 Pole, 1 ph, Pivot/Toggle Handle Actuator, Load Lug Connection, (2) 1 AWG to 300 kcmil Wire, Bolted-On Mounting, 10 to 50 deg C, 6-9/16 in H x 2-3/4 in W x 2-5/8 in D Dimensions, Plastic
