Midwest® U013

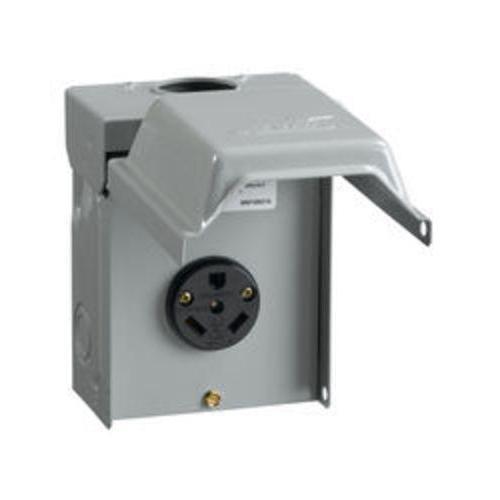

Midwest® GE U013 Unmetered Power Outlet, 120 VAC, 30 A, 1 ph Phase, Surface Mount
Brand: Midwest®
Item ID: 458477
MPN: U013
Login for Price
Features
- G90 galvanized steel with superior electro deposition paint finish, provides excellent corrosion protection
- All in one construction for factory assured terminations
- Rolled edge door for cord protection
- Cover design allows cords to exist while maintaining the NEMA 3R integrity
- Wide assortments of concentric knockouts offer flexibility in the installation
- All GFCI Duplexes are listed as weather resistant and tamper resistant as required by 2008 NEC in Article 406.8 and 406.11
- Padlockable door to help prevent unauthorized access
- Deadfront construction prevents accidental contact with live parts
- No circuit protection
- Hub provision
- No loop feed
- 5 x 7 in cabinet size
Description
Midwest Electric's temporary power and power outlets are a means of providing power required by various construction trades, residential sites, and mobile electrical applications. Temporary power and power outlets offer one or more receptacles, with or without over current protection, disconnecting, metering, and/or pedestal mounting functions, in a single enclosure of G-90 zinc coated steel. The NEMA 3R rainproof enclosure is lockable and engineered to provide maximum protection against weather, vandalism, and normal field use.
Midwest® GE Unmetered Power Outlet, 120 VAC, 30 A, 1 ph Phase, R32U Receptacle, Overhead Feed, 10 kA Short Circuit Current, NEMA 3R, 1 Number of Feeders, Steel, Surface Mount
Specifications
Amperage Rating |
30 A |
Enclosure Type |
NEMA 3R |
Feed Type |
Overhead |
Material |
Steel |
Mounting Type |
Surface |
Number of Feeders |
1 |
Phase |
1 ph |
Receptacle Type |
R32U |
Short Circuit Current Rating |
10 kA |
Voltage Rating |
120 VAC |
Standard Approval |
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|cUL, UL Listed |
Application |
Residential and Commercial Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_efc4741a50c7583b05472cd1ff07ad09220ce37a6c47b05092cbbf7f9a5115a4.pdf
Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Midwest_U013_Full_Engineering_Drawing.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_35bc68f557694d909d50fe44f616098c5ff83d7994843f67bb74df68ba7c4e5c.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Midwest_U013_User_Manual.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_066a0bb7ddaefcb4a676d74ee88ccbc3ac1e8f8e923dc1f40775a5b0cbebd0be.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Midwest_U013_Specification_Sheet.pdf
Warranty Information 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_fb5b1421de6c499300fa273ee75f7a94cb5ee896c6428a725f16daedbc448603.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Midwest_R101CB2_Warranty.pdf
