Midwest® U065P010

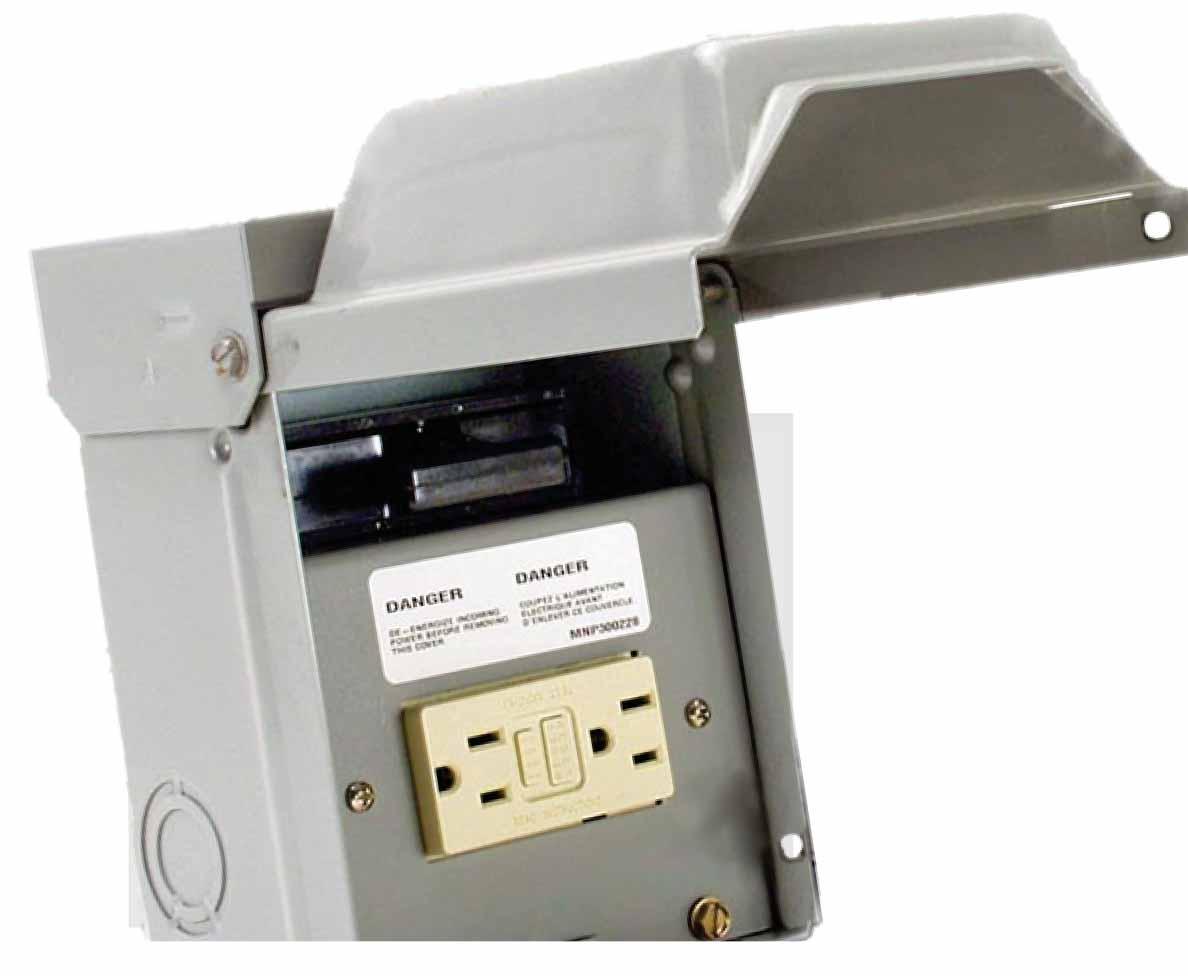

Midwest® GE U065P010 Non-Fused Pull-Out AC Disconnect Switch With Receptacle Door, 120/240 VAC, 60 A, 10 hp, 1 Poles
Brand: Midwest®
Item ID: 358393
MPN: U065P010
Login for Price
Features
- Pullers are removable or re-installable in the OFF position for user safety during equipment maintenance
- Door has padlock provisions to prevent unauthorized access
- 3-piece construction that opens up mounting and wiring areas, reduces installation time
- Numerous knockouts reduce installation time straight-in, straight-out wiring saves time and money
- With 5-15R2GFCI receptacle door has padlock provisions to prevent unauthorized access
- Noryl® thermoplastic enclosure is corrosion resistant and extremely durable, giving long maintenance free service
Description
Midwest® GE AC Disconnect Switch, Non-Fused Pull-Out, 120/240 VAC, 60 A, 10 hp, 1 Phase, 1 Pole, 10 kA Short Circuit, NEMA 3R Enclosure, Surface Mounting, 7 in H x 5 in W x 3-5/8 in D Dimensions, Steel, Galvanized/Powder Coated
Specifications
Amperage Rating |
60 A |
Dimensions |
7 in H x 5 in W x 3-5/8 in D |
Enclosure Type |
NEMA 3R |
Finish |
Galvanized/Powder Coated |
Horsepower |
10 hp |
Material |
Steel |
Mounting Type |
Surface |
Number of Poles |
1 |
Phase |
1 |
Short Circuit Current Rating |
10 kA |
Type |
Non-Fused Pull-Out |
Voltage Rating |
120/240 VAC |
Standard Approval |
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|cUL/UL Listed |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_cca81372c4af8795a78f5fe0d6d15969e158dd6cfdf33d987660ac0c3b46ff58.pdf
Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Midwest_U065P010_Full_Engineering_Drawing.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1e692c6897b70b1f0ccac7beff6ff38f43a88eb41f6e974857d173d16a5374e5.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Midwest_U065F1_User_Manual.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_16a6b9772dde64bea47d04130db8ab0b58f84569d25822b9d7639d8bc6f316c2.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Midwest_U065P010_Specification_Sheet.pdf
Warranty Information 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_fb5b1421de6c499300fa273ee75f7a94cb5ee896c6428a725f16daedbc448603.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Midwest_R101CB2_Warranty.pdf
