Lithonia Lighting® CNY LED ALO SWW2 UVOLT PE PIR DDB M2

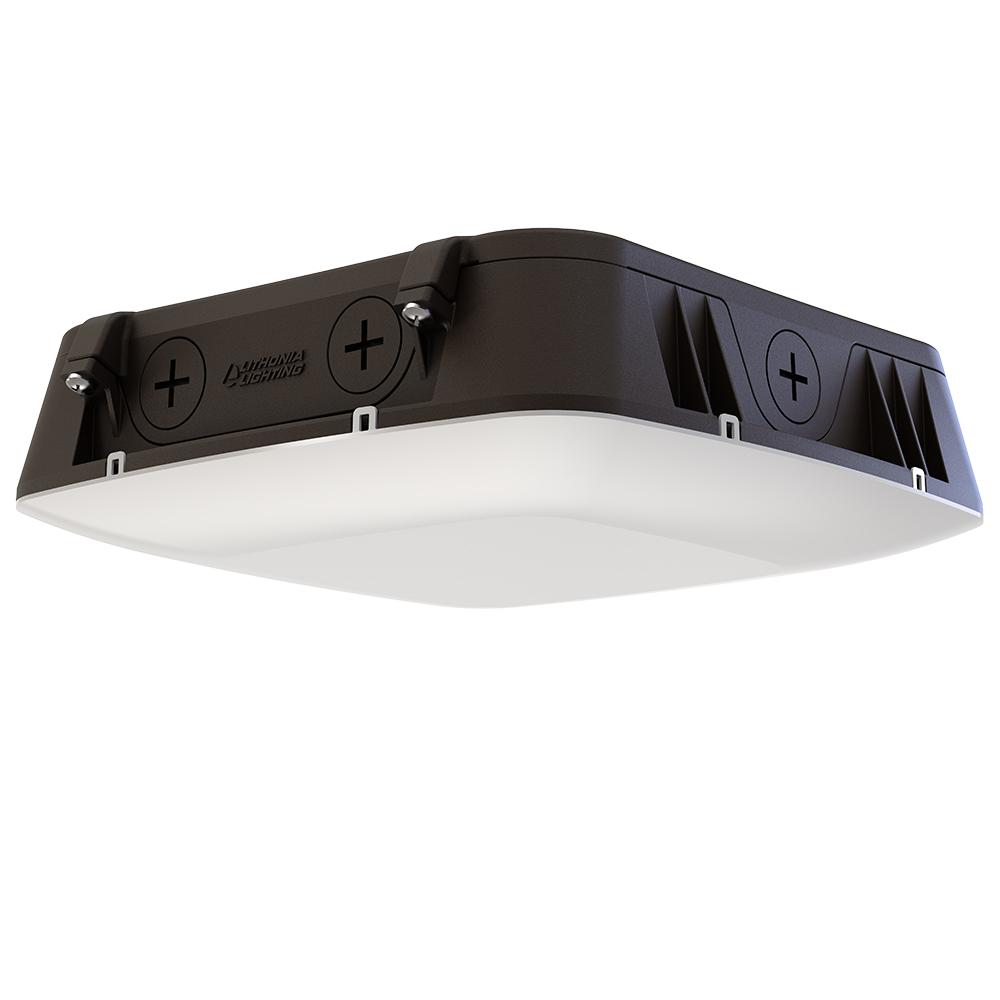

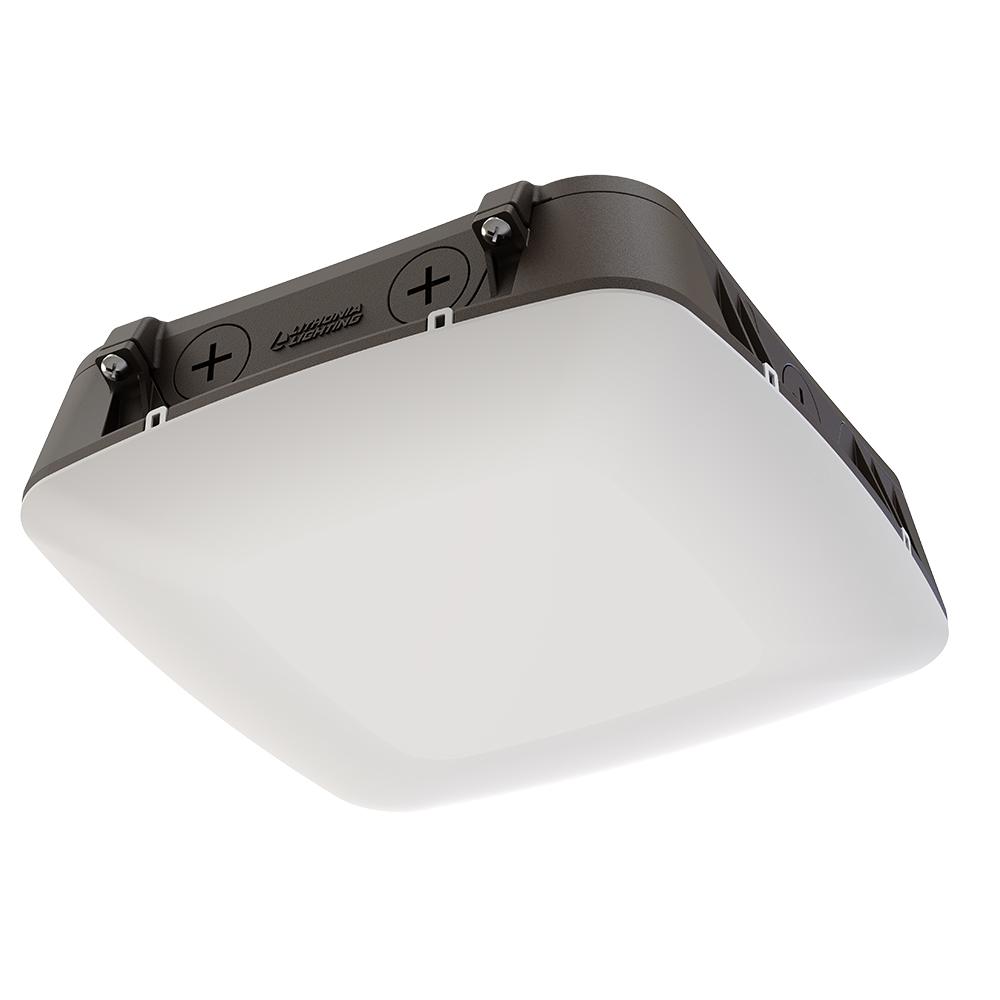

Lithonia Lighting® CNY LED ALO SWW2 UVOLT PE PIR DDB M2 CNY Square Canopy Lighting, LED Lamp, 34, 52, 75 W Fixture, 120 to 347 V, Dark Bronze Housing

Brand: Lithonia Lighting®

Item ID: 544858

MPN: CNY LED ALO SWW2 UVOLT PE PIR DDB M2

Login for Price

Features

  • The CNY LED ALO Canopy Luminaire from Lithonia Lighting is where versatility meets innovation With an incredible 54 customizable options packed into a single luminaire, you have the power to tailor your lighting experience right on the spot
  • It's your lighting, your way The CNY LED ALO's 10 in x 10 in footprint, matching that of typical HID luminaires, goes beyond aesthetics
  • It expertly conceals any unsightly imperfections, ensuring a seamless, hassle-free installation that eliminates the need for extra patching or repairs
  • Transform your outdoor space with the CNY LED ALO and enjoy the perfect combination of visually comfortable illumination, energy efficiency, and complete customization - all bundled in a sleek and durable package
  • HOURS OF LIFE - High-efficiency LEDs maintains over 70 Percent of light output at 100,000 hr (L70>100,000 hr)
  • INSTALLATION - Quick-mount plate that makes mounting to a recessed junction box or conduit entry point both quick and trouble free and can be separated for surface mounting and reattached via a hinge for support while wiring

Description

Lithonia Lighting®, CNY LED ALO SWW2 UVOLT PE PIR DDB M2, Canopy Lighting, Square, Series: CNY, 120 to 347 V, 34, 52, 75 W Fixture, LED Lamp, 139/147/143/133/144/137/123/136/125 Lumens/W Light Output, 100000 hrs Average Life, 3000/4000/5000 K Color Temperature, 80 CRI, 0 to 10 V Continuous Dimmable Ballast, Frosted Lens, 5000/7500/10000 Lumens, Surface Mounting, Die-Cast Aluminum Housing Material, Dark Bronze Housing Finish, 3 in H x 10 in W x 10 in D Dimensions

Specifications

Average Life

100000 hrs

Ballast Type

0 to 10 V Continuous Dimmable

Color Rendering Index (CRI)

80

Color Temperature

3000/4000/5000 K

Dimensions

3 in H x 10 in W x 10 in D

Fixture Wattage

34, 52, 75 W

Housing Finish

Dark Bronze

Housing Material

Die-Cast Aluminum

Lamp Type

LED

Lens Type

Frosted

Light Output

139/147/143/133/144/137/123/136/125 Lumens/W

Lumens

5000/7500/10000 Lumens

Mounting Type

Surface

Series

CNY

Type

Square

Voltage Rating

120 to 347 V

Standard Approval

cULus Listed|IP65|IESNA LM-79 and LM-80 standards|DLC Premium qualified

Application

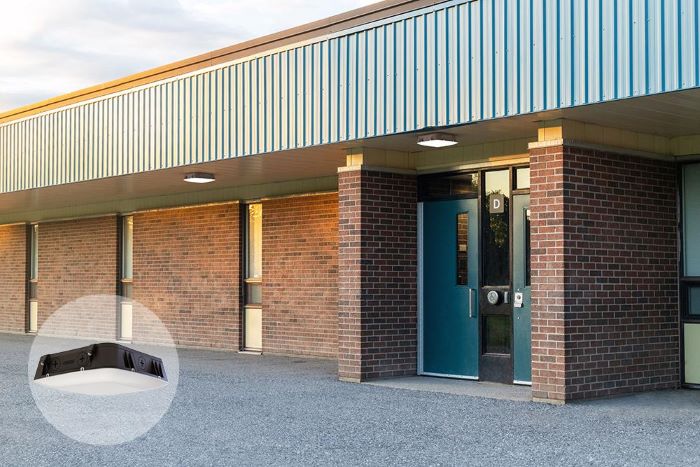

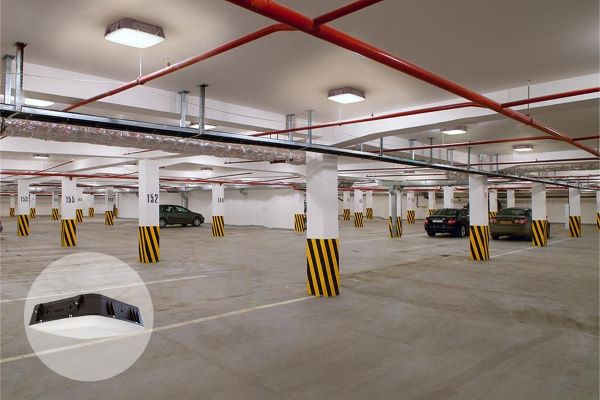

Allow for this canopy luminaire to offer 54 customizable options in one fixture, designed for uniform light distribution while providing visually comfortable illumination, Ideal for parking garages, building entrances and walkways

Documentation

https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_CNY_LED_ALO_SWW2_UVOLT_PE_PIR_WH_M2_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_CNY_LED_ALO_SWW2_UVOLT_PE_PIR_WH_M2_Installation_Manual.pdf

https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_CNY_LED_ALO_SWW2_UVOLT_PE_PIR_WH_M2_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_CNY_LED_ALO_SWW2_UVOLT_PE_PIR_WH_M2_Specification_Sheet.pdf

videoVIDEO LINK https://www.youtube.com/watch?v=EMoqlWJeyPc&feature=youtu.be
