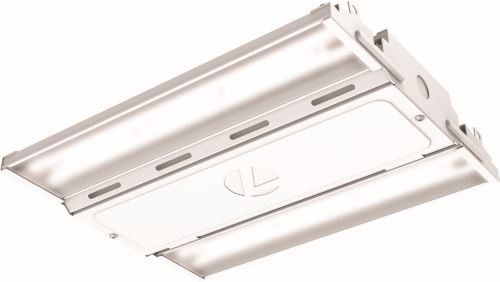

Lithonia Lighting® CPHB 12LM MVOLT 40K

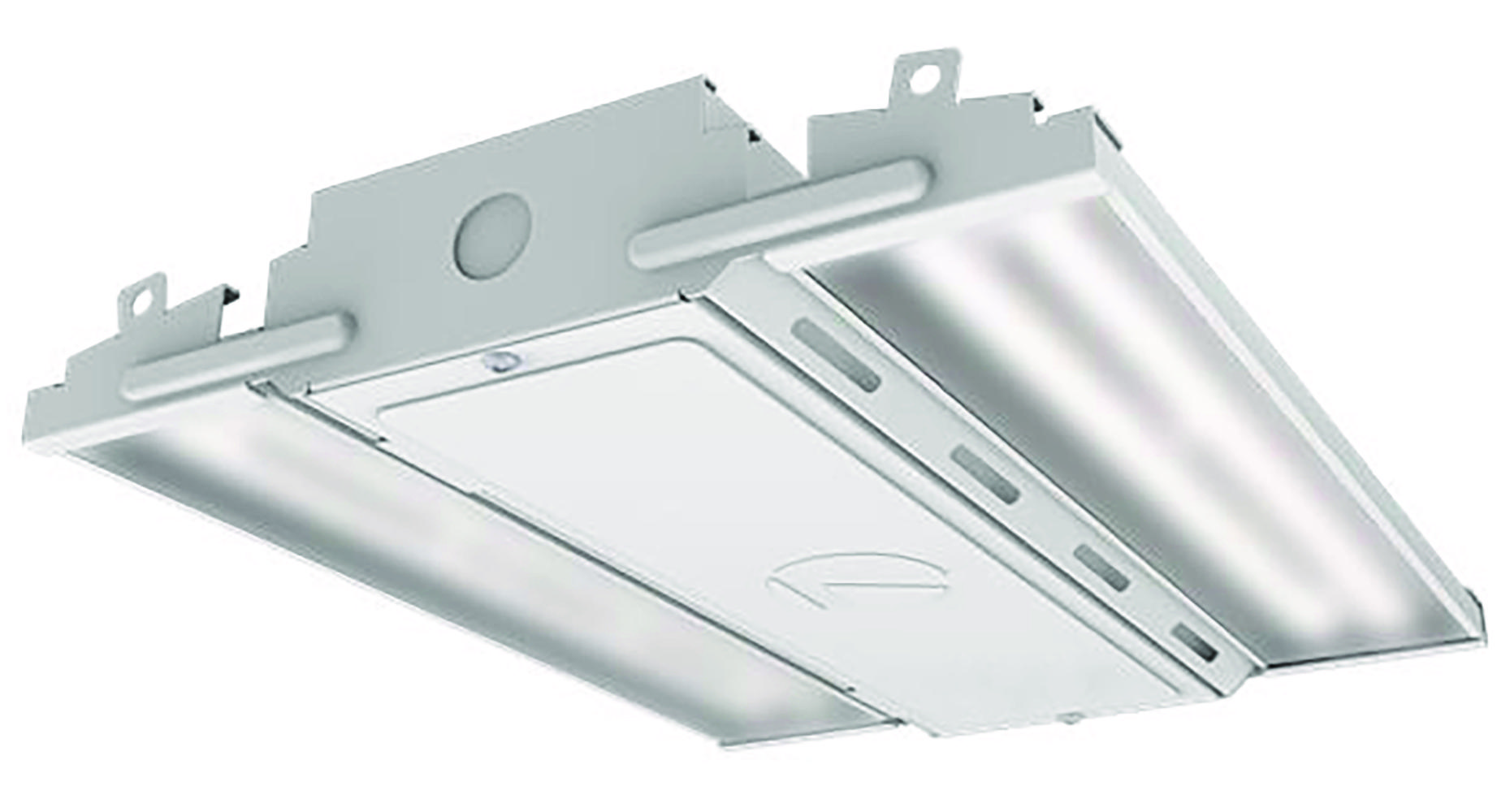

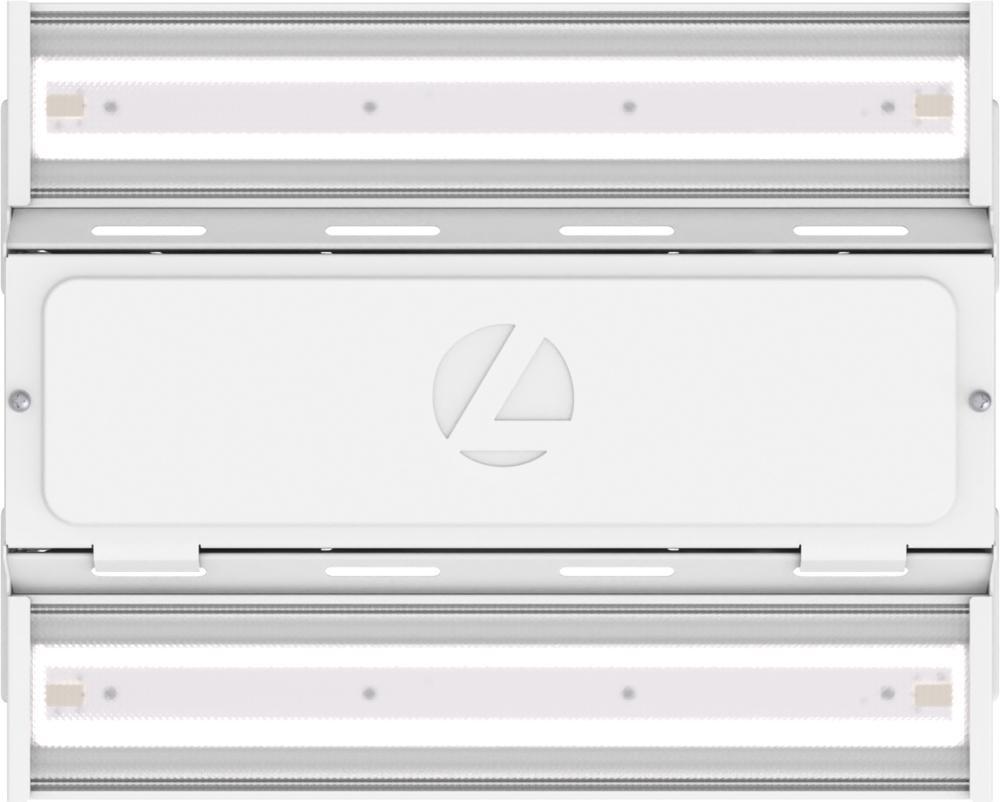

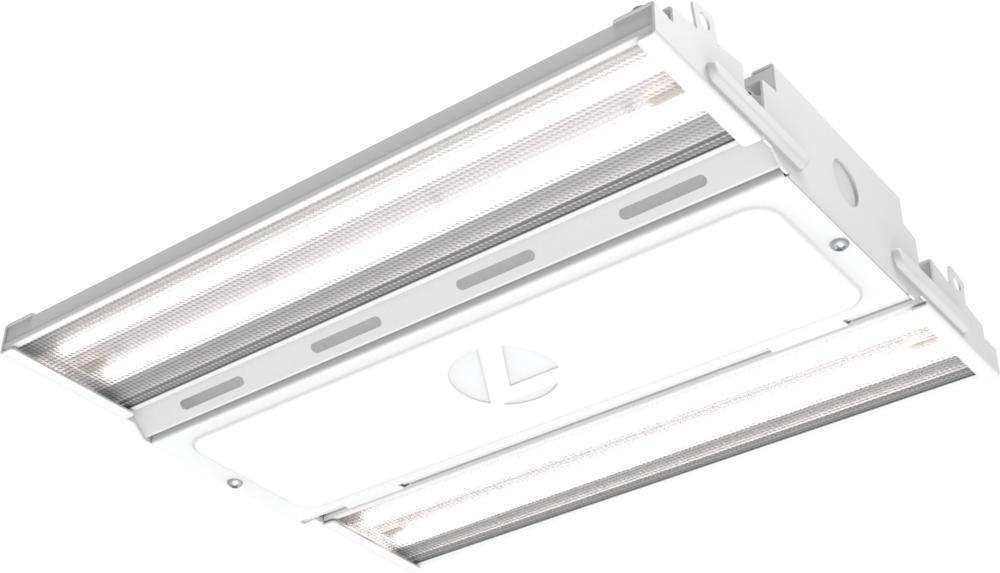

Lithonia Lighting® COMPACT PRO™ CPHB 12LM MVOLT 40K Hardwired Rectangular High Bay Fixture, Static LED Lamp, 88 W Fixture, 120 to 277 V, White Housing

Brand: Lithonia Lighting®

Item ID: 505114

MPN: CPHB 12LM MVOLT 40K

Login for Price

Features

  • Technology, Glare reduction optics featuring WhiteOptics Technology allowing for maximum light output while reducing glare
  • ENERGY SAVINGS:LEDs provided 80 color rendering index (CRI), nominal 12,000 lumens at 4000K with a cool white color temperature
  • DIMMING: Thermally protected driver standard with 0-10V dimming
  • RATINGS: Suitable for damp location, CSA listed
  • HOURS OF LIFE: 70% lumen maintenance at > 100,000 hours
  • The Compact Pro High Bay by Lithonia Lighting delivers an industrial-grade lighting solution in an exceptionally compact fixture that provides for cheaper shipping, condensed storage, and quicker installation
  • Built with quality to last and performance to get the job done at an affordable price for an base-level product
  • Multi-volt driver, 120-277V standard
  • Fixture is suitable for mounting by chain, cable, surface-mount bracket, pendant monopoint, or hook monopoint
  • LED emergency driver sold separetly

Description

The COMPACT PRO™ High Bay by Lithonia Lighting® delivers an industrial-grade lighting solution in an exceptionally compact fixture that provides for cheaper shipping, condensed storage, and quicker installation. Built with quality to last and performance to get the job don, all at an affordable price.

Lithonia Lighting® COMPACT PRO™ High Bay Fixture, Hardwired Rectangular, Series: CPHB Series, 120 to 277 V, 88 W Fixture, Static LED Lamp, >135 Lumens/W, 100000 hr Average Life, 4000 K Color, Acrylic Glare Control Lens, 12000 Lumens, Pendant/Surface/Suspended Mount, White Housing, 14.44 in L x 11.52 in W x 2.3 in H

Specifications

Average Life

100000 hr

Color Temperature

4000 K

Dimensions

14.44 in L x 11.52 in W x 2.3 in H

Fixture Wattage

88 W

Housing Finish

White

Lamp Type

Static LED

Lens Type

Acrylic Glare Control

Light Output

>135 Lumens/W

Lumens

12000 Lumens

Mounting Type

Pendant/Surface/Suspended

Series

CPHB Series

Type

Hardwired Rectangular

Voltage Rating

120 to 277 V

Standard Approval

cCSAus Certified|Damp Location Listed|DLC QPL Listed

Application

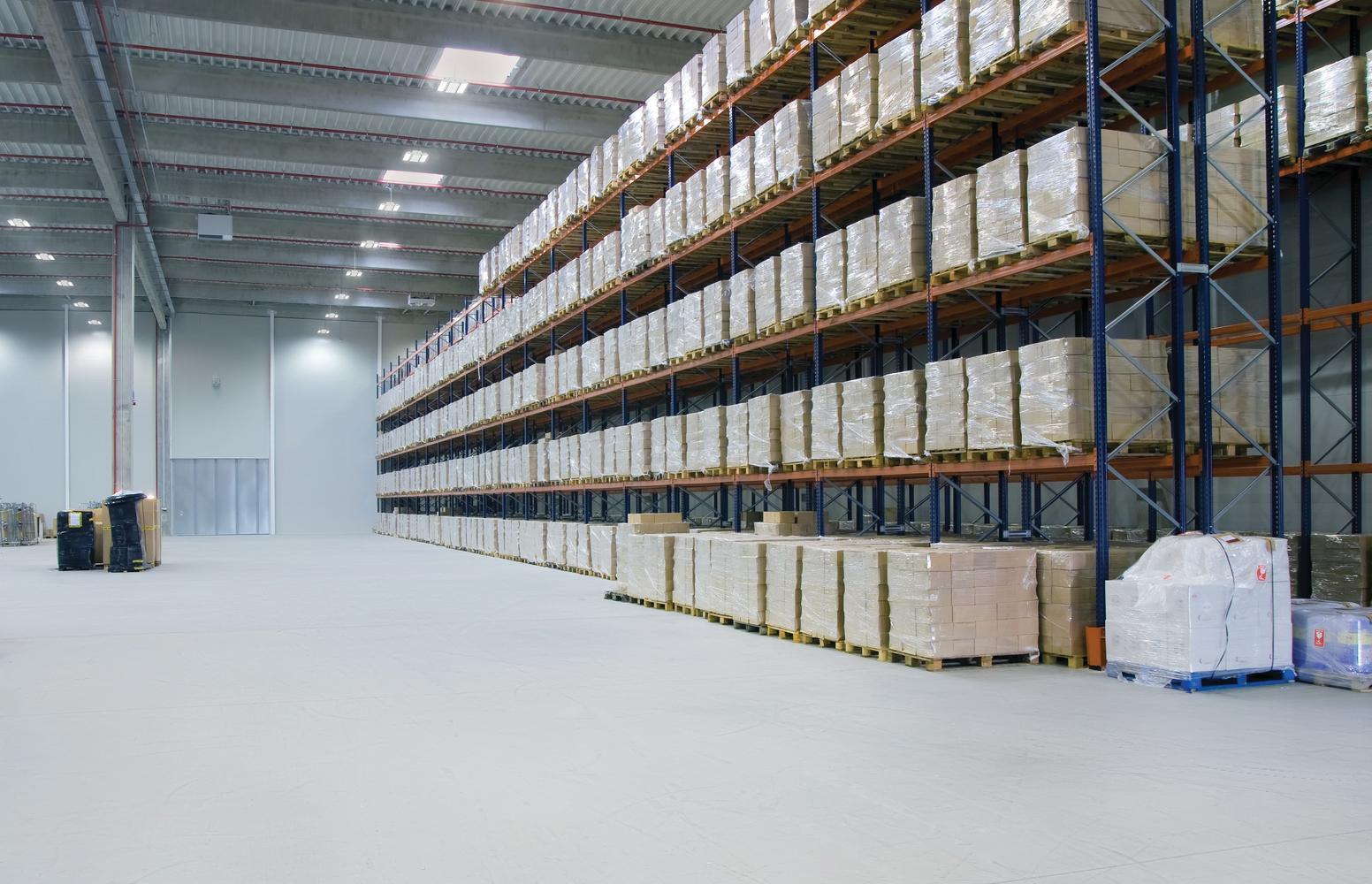

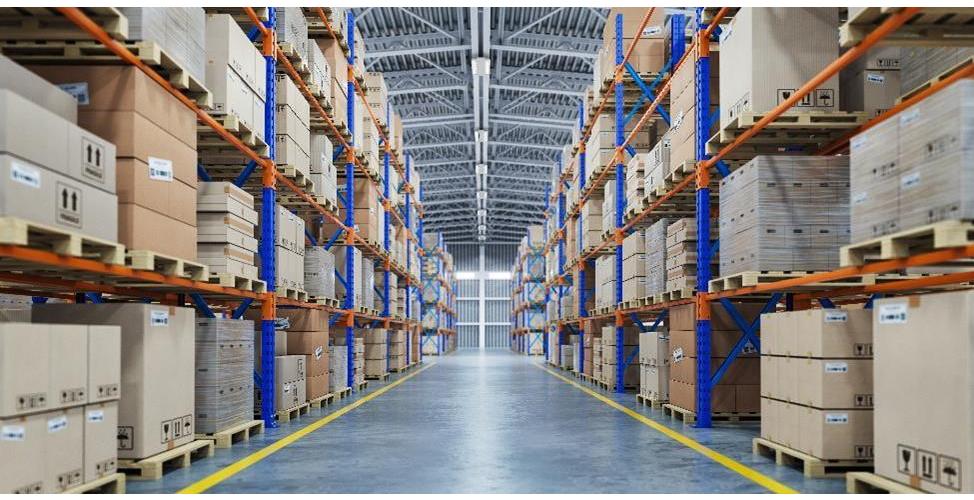

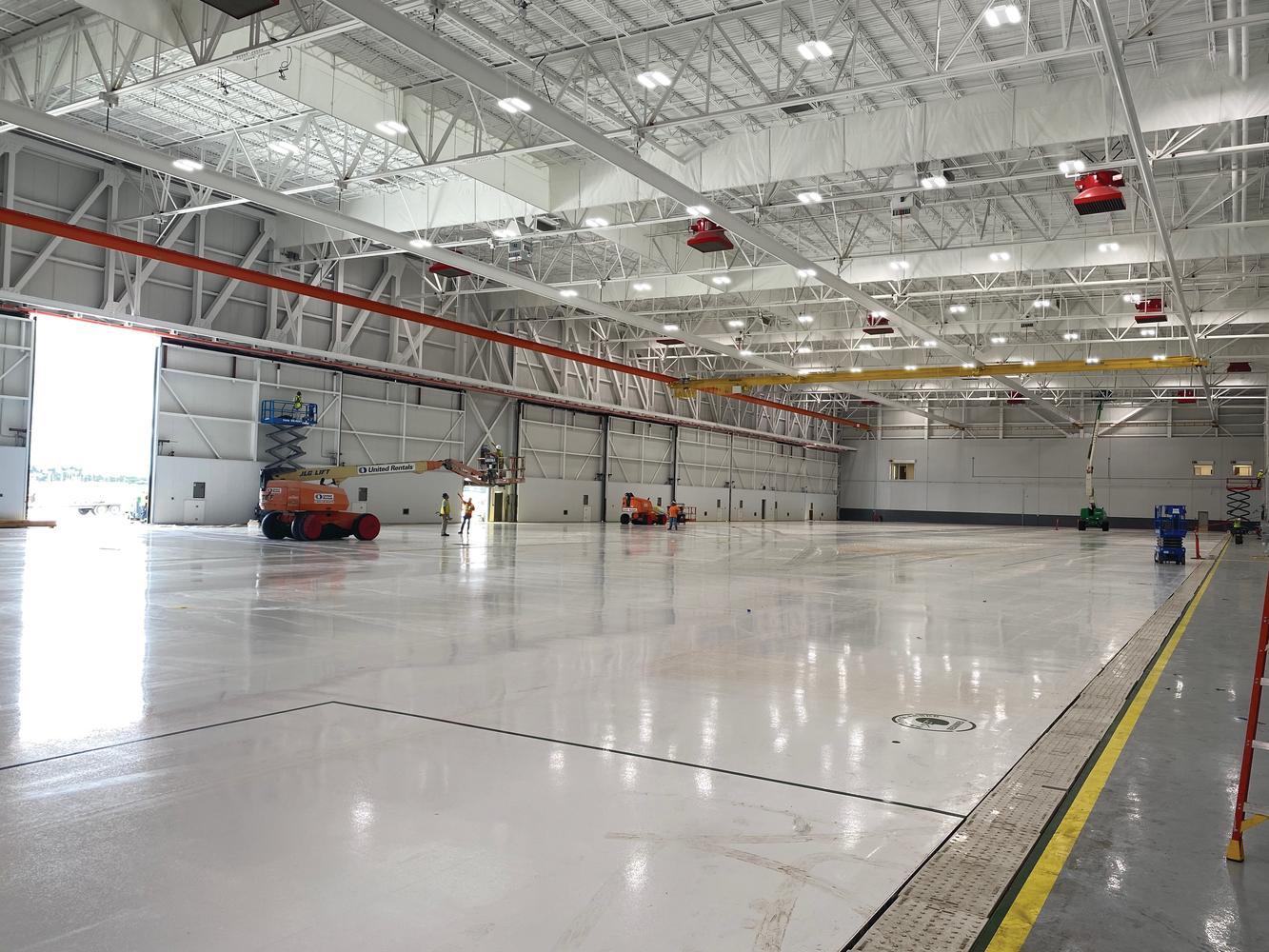

Industrial, Retrofit and Warehouses

Documentation

Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d456a02a0828292238abc5524493dc3e329b40eba7f2fbd6a38dbb65bbe139fb.pdf

Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_23cd1e4be974f7f0e3193fe3bfd1ba8218504a18b6c7d273a9d77a56ff977d88.pdf

https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_CPHB_12LM_MVOLT_50K_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_CPHB_12LM_MVOLT_50K_Installation_Manual.pdf

Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_3aa88febce103e9121b53007d43aab6cf70628917fc61958ee5a7ba0af48c6d8.pdf

https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_CPHB_12LM_MVOLT_50K_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_CPHB_12LM_MVOLT_50K_Specification_Sheet.pdf

VIDEO LINK https://youtu.be/sAtRD5yyeeM
