Lithonia Lighting® WF4 LED 27K30K35K 90CRI MW M6

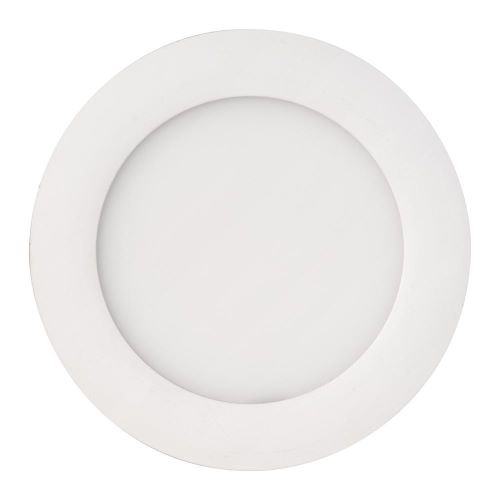

Lithonia Lighting® Wafer™ WF4 LED 27K30K35K 90CRI MW M6 Dimmable Round Wafer Thin Recessed Downlight, Static LED Lamp, 4.2 in Ceiling Opening, 120 to 277 VAC, Die Cast Aluminum Housing

Brand: Lithonia Lighting®

Item ID: 472605

MPN: WF4 LED 27K30K35K 90CRI MW M6

Login for Price

Features

  • The innovative, slim design allows for easy retrofit, remodel or new construction installation from below the ceiling
  • Aluminum die cast outer frame
  • Durable, powder coat paint prevents rust
  • Round fixture with integral Edge-lit LEDs
  • FT4 plenum rated cable connector to connect from module to remote driver box
  • IC rated driver with convenience and value of two remote selectable color temperature options, each with a setting choice to chose either 2700 K, 3000 K and 3500 K or 3000 K, 4000 K and 5000 K using the switch

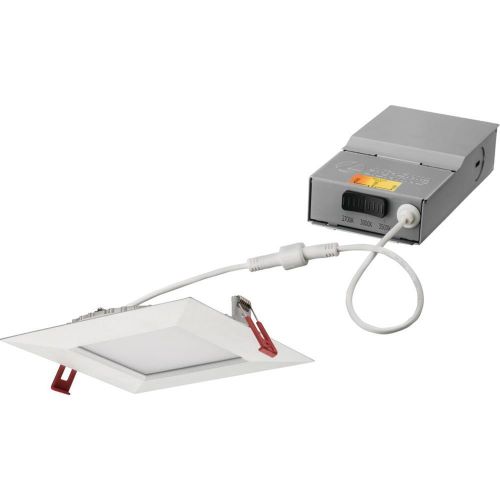

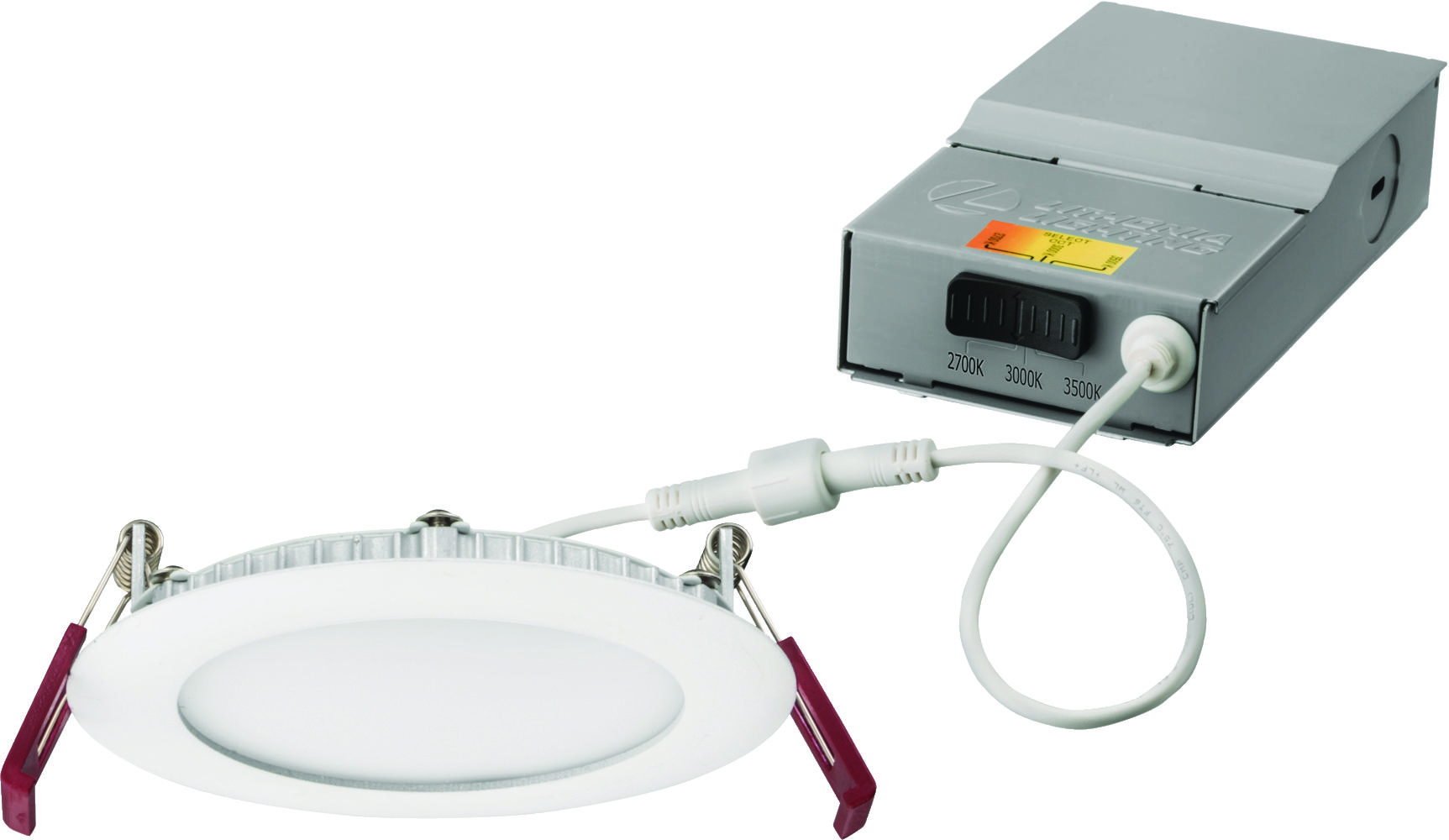

  • The isolated driver integrated inside steel remote box with (4) 7/8 in knockouts with slots for pryout
  • Suitable for pulling wires with the 12 cu-in wiring compartment to accommodate up to (6) 14 ga insulated conductors, making the Wafer™ LED downlights much easier to wire in 2in/2out (plus ground) daisy chain applications and contractor friendly
  • Ideal for shallow ceiling plenum, no housing required
  • Edge-lit LED technology uses light guided plate to distribute light
  • The 4 in round Wafer LED Downlight with Switchable White provides high-quality light output and efficiency featuring a switch for easy adjustment from soft white to neutral white during installation - while eliminating the need for recessed housings
  • The Wafer LED downlight is wet location listed - making it ideal for use in a breadth of outdoor residential, hospitality, commercial and multifamily applications
  • Energy star certified by using minimal watts and providing the lumens needed to light the room
  • Easily dim to 10% to adjust the brightness of your space
  • IC rated - safe to install in direct contact with insulation and wet location listed making it ideal to use in covered outdoor areas or bathrooms
  • Ideal for shallow ceiling plenum, little as 4 in of ceiling space needed for install; spring clips, and includes 4 in cut out template to ensure a correct sized hole is cut into ceiling for proper install of the trim
  • The LED module maintains at least 70 percent light output for up to 36,000 hr at 6 hr a day every day, the light would last for over 16 years
  • Simply toggle the switch to your desired setting (2700K Soft White, K Warm White, or 3500K Neutral White)
  • Emergency battery currently not available

Description

The 4 in Wafer™ LED downlights with switchable white provides high quality light output and efficiency and features a switch for easy color temperature adjustment, while eliminating the need for recessed housings. The innovative switchable white feature incorporates a switch on each fixture for simple color temperature adjustment. Too warm or too cool simply toggle the integrated switch to your desired setting (3000 K factory default) and you are done. Whatever your application, luminaires with switchable white are sure to give you the feel and flexibility that you need.

Lithonia Lighting® Wafer™ Recessed Downlight, Dimmable Round Wafer Thin, Series: WF4, 120 to 277 VAC, 0.09 A, Edge-Lit Lighting Technology, Static LED Lamp, 10.5 W Lamp, 68.2/79.2/75 Lumens/W Light Output, 4.2 in Ceiling Opening, 35000 hr Average Life, Soft White/Warm White/Neutral White Light, 2700/3000/3500 K Color Temperature, 90 CRI, Polycarbonate Lens, 730/800/780 Lumens, Ceiling Mounting, Die Cast Aluminum Housing Material, 3 in L x 3 in W x 6 in H Dimensions

Specifications

Amperage Rating

0.09 A

Average Life

35000 hr

Ceiling Opening

4.2 in

Color Rendering Index (CRI)

90

Color Temperature

2700/3000/3500 K

Dimensions

3 in L x 3 in W x 6 in H

Housing Material

Die Cast Aluminum

Lamp Type

Static LED

Lamp Wattage

10.5 W

Lens Type

Polycarbonate

Light Color

Soft White/Warm White/Neutral White

Light Output

68.2/79.2/75 Lumens/W

Lighting Technology

Edge-Lit

Lumens

730/800/780 Lumens

Mounting Type

Ceiling

Series

WF4

Type

Dimmable Round Wafer Thin

Voltage Rating

120 to 277 VAC

Standard Approval

CSA Certified for Wet Location|ENERGY STAR Certified|ASTM E283-2004|NOM Certified

Application

Automotive, Parking, Education, Government, Healthcare, Hospitality, Manufacturing, Power and Gas, Religious, Residential, Retail, Sports and Recreation, Transportation and Warehouses, Closets, Attics, Hallways, Bathrooms, Kitchens, Basements, Soffits, Entry Ways, Porches, Garages, Stairwells, Corridors, Nursing/Retirement Homes, Condos, Elevators, Apartments and Indoor and Outdoor Applications

Documentation

Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_WF3_LED_27K_MW_M6_Catalog.pdf

Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_WF3_LED_27K_MW_M6_Manual.pdf

https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_WF4_LED_30K40K50K_MVOLT_90CRI_MW_M6_Installation_Manual_CA.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_WF4_LED_30K40K50K_MVOLT_90CRI_MW_M6_Installation_Manual_CA.pdf

Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6365bd95e9552974e2f9cc89b94e031992c4c8acf5d979b38f99a7c00767824e.pdf
