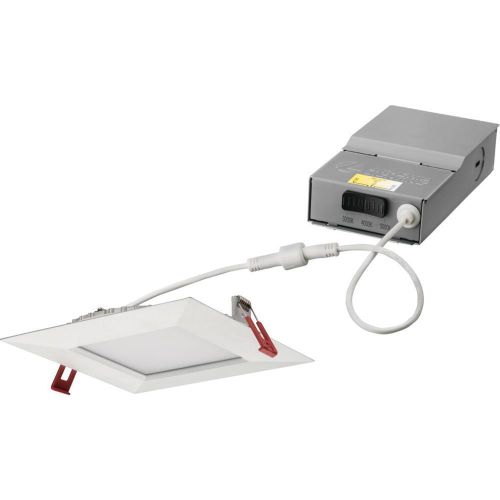

Lithonia Lighting® WF6 SQ S LED 30K40K50K 90CRI MW M6

Lithonia Lighting® WF6 SQ S LED 30K40K50K 90CRI MW M6 WF6 Dimmable Square Wafer Thin Recessed Downlight, Static LED Lamp, 6 in Ceiling Opening, 120 to 277 VAC, Die Cast Aluminum Housing

Brand: Lithonia Lighting®

Item ID: 480041

MPN: WF6 SQ S LED 30K40K50K 90CRI MW M6

Login for Price

Features

  • The 6 in Wafer™ LED square downlight with switchable white provides high quality light output and efficiency featuring a switch for easy color temperature adjustment - while eliminating the need for recessed housings
  • Edge-lit LED technology uses light guided plate to distribute light
  • Connect directly to 120 V power supply via provided UL recognized driver
  • The innovative, slim design allows for easy retrofit, remodel or new construction installation from below the ceiling
  • Aluminum die cast outer frame
  • Durable, powder coat paint prevents rust
  • FT4 plenum rated cable connector to connect from module to remote driver box
  • IC rated driver with convenience and value of two remote selectable color temperature options, each with a setting choice to chose either 2700 K, 3000 K and 3500 K or 3000 K, 4000 K and 5000 K using the switch
  • The isolated driver integrated inside steel remote box with (4) 7/8 in knockouts with slots for pryout
  • Suitable for pulling wires with the 12 cu-in wiring compartment to accommodate up to (6) 14 ga insulated conductors, making the Wafer™ LED downlights much easier to wire in 2in/2out (plus ground) daisy chain applications and contractor friendly
  • Ideal for shallow ceiling plenum, no housing required

Description

The 6 in Wafer™ LED is an ultra thin recessed downlight ideal for shallow ceiling plenum applications. Quality, housing free recessed downlighting is achieved with its narrow remote driver box. The Wafer™ LED is quick and simple to install from below the ceiling with as little as 2 in plenum clearance.

Lithonia Lighting®, WF6 SQ S LED 30K40K50K 90CRI MW M6, Recessed Downlight, Dimmable Square Wafer Thin, Series: WF6, 120 to 277 VAC, 0.11 A, Edge-Lit Lighting Technology, Static LED Lamp, 12.6/12.3/12.8 W Lamp, 64.3/72.4/67.2 Lumens/W Light Output, 6 in Ceiling Opening, Smooth Recessed Trim, Warm White/Cool White/Daylight Light, 3000/4000/5000 K Color Temperature, 90 CRI, Polycarbonate Lens, 810/890/860 Lumens, Ceiling Mounting, Die Cast Aluminum Housing Material, 2 in L x 3 in W x 5 in H Dimensions

Specifications

Amperage Rating

0.11 A

Ceiling Opening

6 in

Color Rendering Index (CRI)

90

Color Temperature

3000/4000/5000 K

Dimensions

2 in L x 3 in W x 5 in H

Housing Material

Die Cast Aluminum

Lamp Type

Static LED

Lamp Wattage

12.6/12.3/12.8 W

Lens Type

Polycarbonate

Light Color

Warm White/Cool White/Daylight

Light Output

64.3/72.4/67.2 Lumens/W

Lighting Technology

Edge-Lit

Lumens

810/890/860 Lumens

Mounting Type

Ceiling

Recessed Trim Type

Smooth

Series

WF6

Type

Dimmable Square Wafer Thin

Voltage Rating

120 to 277 VAC

Standard Approval

CSA Certified for Wet Location|ENERGY STAR Certified|NOM Certified|Air Tight Certified|ASTM E283-2004|California Title 24 Part 6 Compliant

Application

Education, Hospitality, Religious, Retail, Outdoor, Residential, Commercial and Multifamily Applications
