Allied Moulded P-764

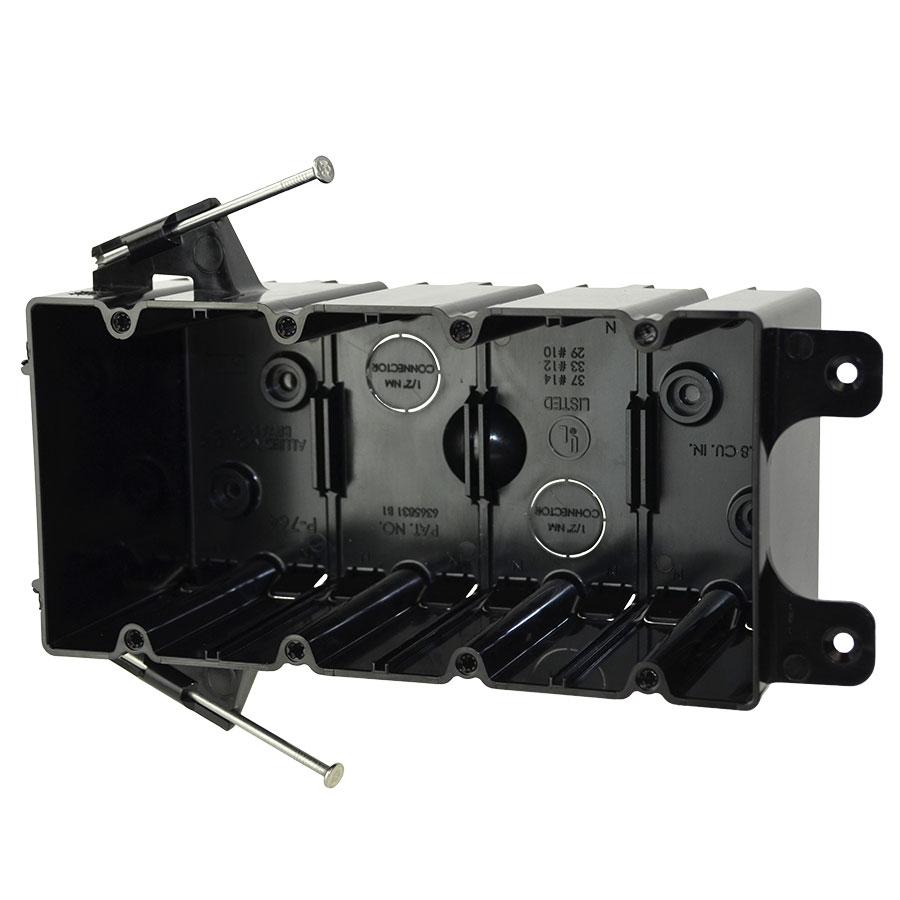

Allied Moulded flexBOX® P-764 Non-Conductive Non-Metallic Switch/Receptacle Box, Polycarbonate, 74.8 cu-in Capacity, 4 Gangs, 8 Outlets, 2 Knockouts, 3-3/4 in H x 7-5/8 in W x 3-1/4 in D
Brand: Allied Moulded
Item ID: 363316
MPN: P-764
Login for Price
Features
- Molded-in spline device holes
- Leveling ribs
- Offset gauge marks
- Without knockouts
- Angled mid nails with opposite side drywall tabs mounting
Description
Allied Moulded flexBOX® switch and outlet boxes are molded of engineering grades of non-metallic thermoplastic materials. The flexBOX® line of products was created for the electrical contractor looking for non-metallic outlet boxes with soft box characteristics. Allied Moulded flexBOX® line offers many different advantages along side unique features and benefits.
Allied Moulded flexBOX® Switch/Receptacle Box, Non-Conductive Non-Metallic, 8 Outlets, 4 Gangs, 2 Knockouts, 1/2 in Knockout, Rectangle Shape, Horizontal Mounting, Angled Mid Nail Mounting, 74.8 cu-in Capacity, Polycarbonate, Black, 3-3/4 in H x 7-5/8 in W x 3-1/4 in D Dimensions
Specifications
Capacity |
74.8 cu-in |
Color |
Black |
Dimensions |
3-3/4 in H x 7-5/8 in W x 3-1/4 in D |
Knockout Size |
1/2 in |
Material |
Polycarbonate |
Mounting Orientation |
Horizontal |
Mounting Type |
Angled Mid Nail |
Number of Gangs |
4 |
Number of Knockouts |
2 |
Number of Outlets |
8 |
Shape |
Rectangle |
Type |
Non-Conductive Non-Metallic |
Standard Approval |
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ECCN: EAR99|ANSI Specified|UL 514C File No. E30594 |
Application |
For new work residential construction and non-metallic sheathed cables |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Allied_Moulded_P_108E_Catalog.pdf
Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Allied_Moulded_P_764_Full_Engineering_Drawing.pdf
SDS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_aafe48e90464e025abdd62062c8b9e7e7c98c0775d363b1a0df56906b380c784.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5edd2c0cfbf1d1aa768ae9c120eee86b4db84054e9810ef0f0cd0e77ea1c43f6.pdf
