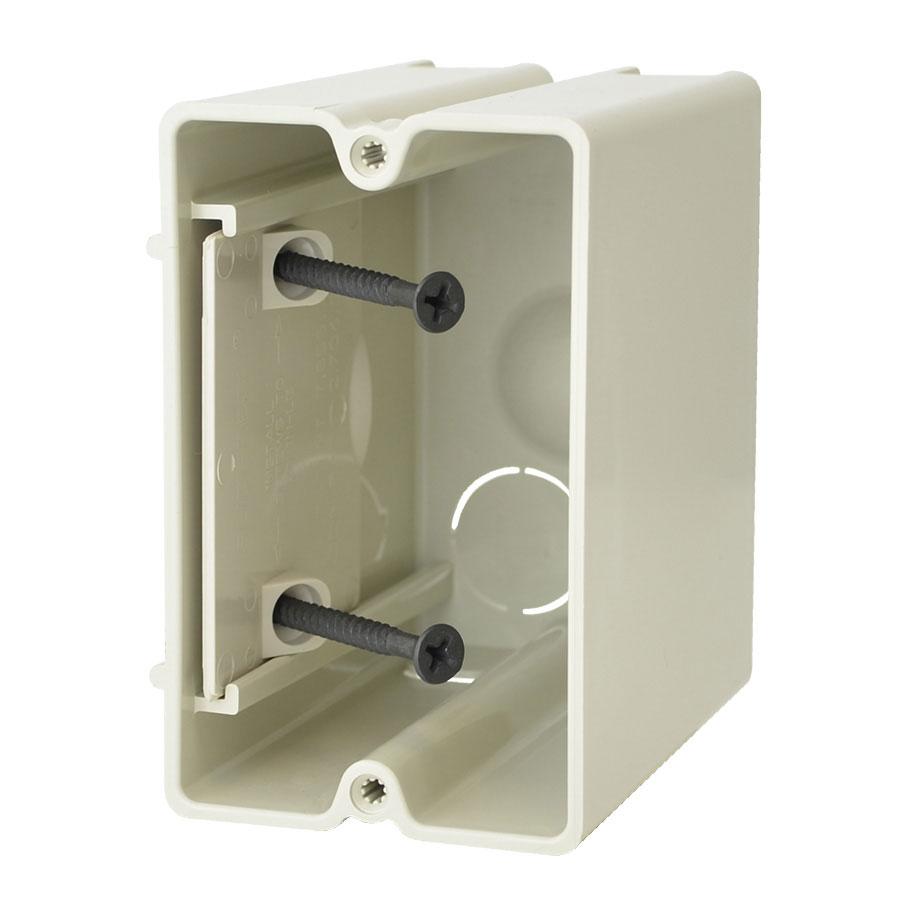

Allied Moulded SB-1
Allied Moulded SLIDERBOX® SB-1 Adjustable Non-Conductive Non-Metallic Switch/Receptacle Box With Knockouts, PVC, 23 cu-in Capacity, 1 Gangs, 2 Outlets, 4 Knockouts, 3-3/4 in H x 2-5/16 in W x 3-9/16 in D
Brand: Allied Moulded
Item ID: 373737
MPN: SB-1
Login for Price
Features
- Molded-in spline device holes
- Leveling ribs
- Adjustable slider plate for additional wall substrate thickness
- Rectangular exterior for easy cut-in
- Offset gauge marks
- Internal screws with adjustable slider plate for substrates 1/2 to 1-3/8 in mounting
- Low voltage partition
Description
Allied Moulded SLIDERBOX® family of adjustable wall boxes was designed for applications where the wall substrate thickness goes beyond the standard wallboard. With SLIDERBOX®, there's no need to remove or relocate mounting screws to reposition the box.
Allied Moulded SLIDERBOX® Switch/Receptacle Box, Adjustable Non-Conductive Non-Metallic, 2 Outlets, 1 Gangs, 4 Knockouts, 1/2 in Knockout, Rectangle Shape, Horizontal Mounting, Threaded Mounting, 23 cu-in Capacity, PVC, Beige/Tan, 3-3/4 in H x 2-5/16 in W x 3-9/16 in D Dimensions
Specifications
Capacity |
23 cu-in |
Color |
Beige/Tan |
Dimensions |
3-3/4 in H x 2-5/16 in W x 3-9/16 in D |
Knockout Size |
1/2 in |
Material |
PVC |
Mounting Orientation |
Horizontal |
Mounting Type |
Threaded |
Number of Gangs |
1 |
Number of Knockouts |
4 |
Number of Outlets |
2 |
Shape |
Rectangle |
Type |
Adjustable Non-Conductive Non-Metallic |
Standard Approval |
ARRA Compliant|Buy American Act Compliant|ECCN: EAR99|ANSI Specified|UL 514C File No. E30594|UL 263 File No. CEYY.R9379 |
Application |
For new and old work residential construction 2 hr fire resistive walls, ceilings and non-metallic sheathed cables |
Documentation
Full Engineering Drawing 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Allied_Moulded_SB-1_Full_Engineering_Drawing.pdf
Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Allied_Moulded_SB_1_Full_Engineering_Drawing.pdf
