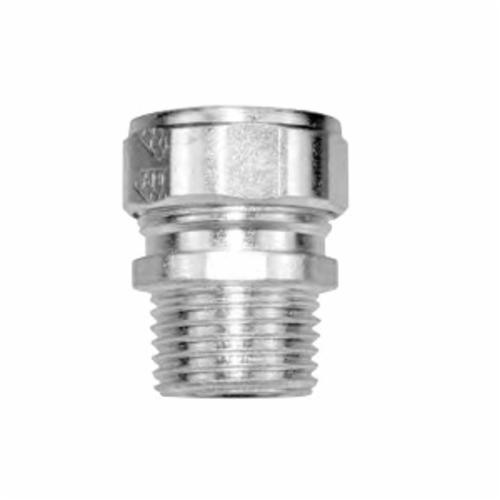

AMERICAN FITTINGS CG50A250

• Seals electrical connections against dust, oil, water or other moisture-containing elements, and function to prevent cable pullout
• Appropriate in manufacturing environments including chemical, waste treatment, food processing and high tech machinery plants
• Color-coded grommets indicate min-max cable diameter range
• Temperature rated grommet is driven into the body and around the cable to ensure a liquid tight seal
• Industrial specification grade material
• Length may vary slightly depending on cables diameter
• 13/16 in exposed length
• Provides a UL liquid tight and strain relief termination for flexible type, neoprene, vinyl, or PVC control cord and cable
• UL rated suitable for hazardous locations Class I, Div. 2, Class II, Div. 1 and 2, Class III, Div. 1 and 2; NEC 501-4(b), 505-4 (a), 503-3(a)
• 0.15 - 0.25 in, 18 - 2 AWG, 3 AWG For SVO cable opening
• S/SO/ST/STO/SJ/STO/SJT SJTO/SVO and bus-drop cable

AMERICAN FITTINGS SPEC-grade™ Straight Cord Connector, Strain Relief, 1/2 in Trade, Cable Openings: 0.15 to 0.25 in, S/SO Cable, Thread Connection, Machined Steel, Zinc Plated, Red, 105 deg C, 0.64 in OD x 1.3125 in L Dimensions
