Arlington 4202

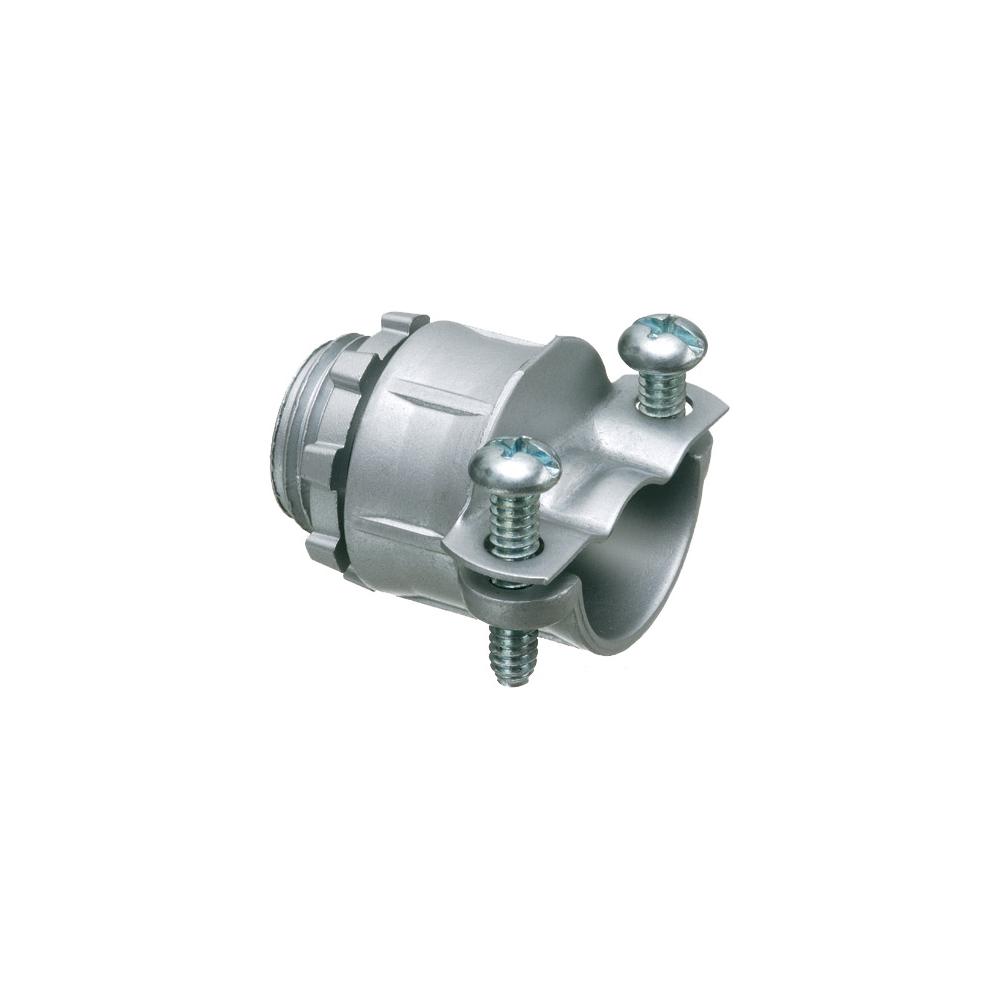

Arlington 4202 All Purpose Cable Connector With Locknut, 3 in Trade, 1 in Knockout, 0.83 to 1.09 in Cable Openings, Die Cast Zinc
Brand: Arlington
Item ID: 354392
MPN: 4202
Login for Price
Features
- Concretetight when taped
- Secures into knockout with locknut
- 0.985 in Dia end stop
Description
Arlington Cable Connector, All Purpose, 3 in Trade, 1 in Knockout, Cable Openings: 0.83 to 1.09 in, Flex/AC/MC/MCI/NM Cable, Threaded x Twin Screw Connection, Die Cast Zinc, Silver, 1.528 in L x 1.276 in W x 1.276 in H Dimensions
Specifications
Cable Openings |
0.83 to 1.09 in |
Cable Type |
Flex/AC/MC/MCI/NM |
Color |
Silver |
Connection Type |
Threaded x Twin Screw |
Dimensions |
1.528 in L x 1.276 in W x 1.276 in H |
Knockout Size |
1 in |
Material |
Die Cast Zinc |
Trade Size |
3 in |
Type |
All Purpose |
Standard Approval |
CSA Certified|UL 94 V-0 Flammability Rating|PROP65: This product can expose you to chemicals including: lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
