Arlington 842

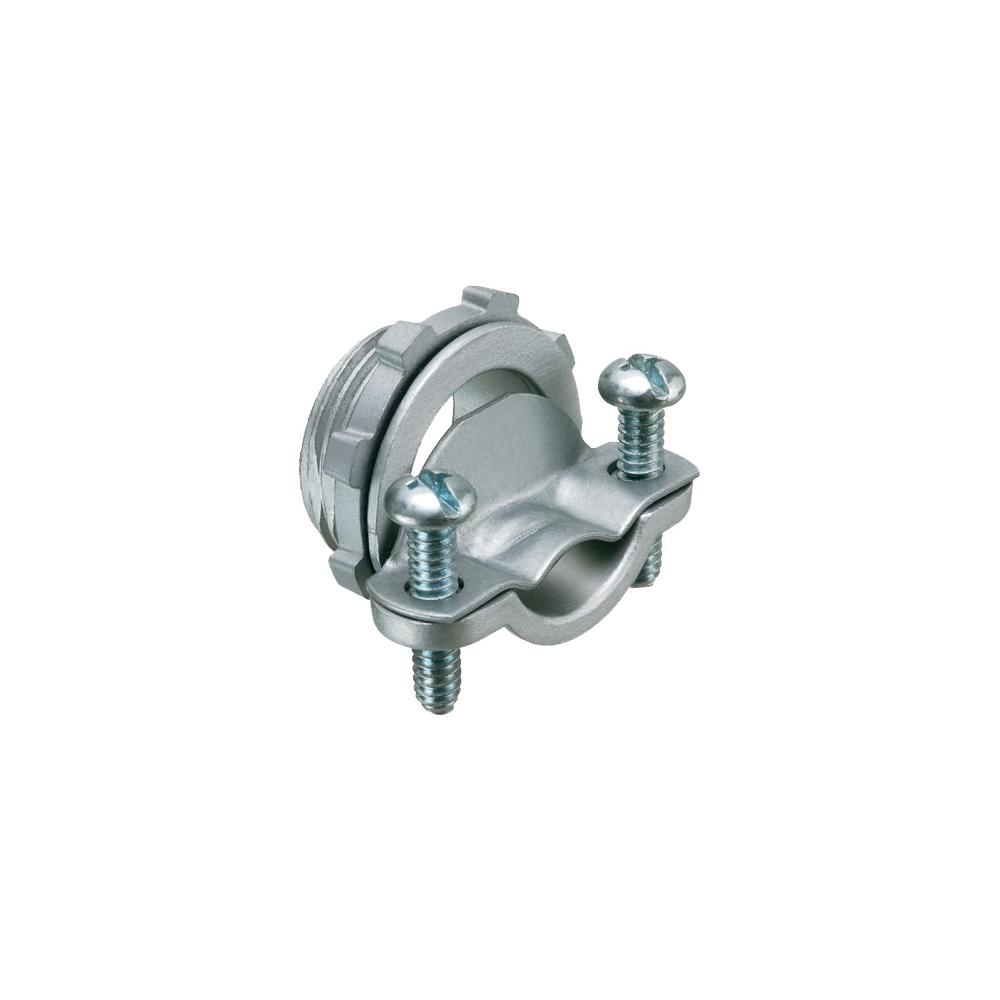

Arlington 842 Service Entrance Cable Connector, 3/4 in Trade, 0.73 in Cable Openings, Die Cast Zinc
Brand: Arlington
Item ID: 9678
MPN: 842
Login for Price
Features
- Rounded cable grip and smooth bushing protect the cable sheath and wire insulation
- Since saddle is threaded, screws do not travel or extend beyond the connector body as it is clamped to the cable
- An extra lip on the saddle closes the unused part of the connector opening
- Non-metallic service entrance cable
- 2-1/2 in knockout
Description
Arlington Service Entrance Cable Connector, 3/4 in Trade, Cable Openings: 0.73 in, NM/SEU Cable, Screw Clamp Connection, Die Cast Zinc, Silver, 1.06 in L x 1.125 in W x 1.65 in H Dimensions
Specifications
Cable Openings |
0.73 in |
Cable Type |
NM/SEU |
Color |
Silver |
Connection Type |
Screw Clamp |
Dimensions |
1.06 in L x 1.125 in W x 1.65 in H |
Material |
Die Cast Zinc |
Trade Size |
3/4 in |
Standard Approval |
CSA File No. LR49636|ECCN EAR99|UL Listed |
