Arlington BE1R

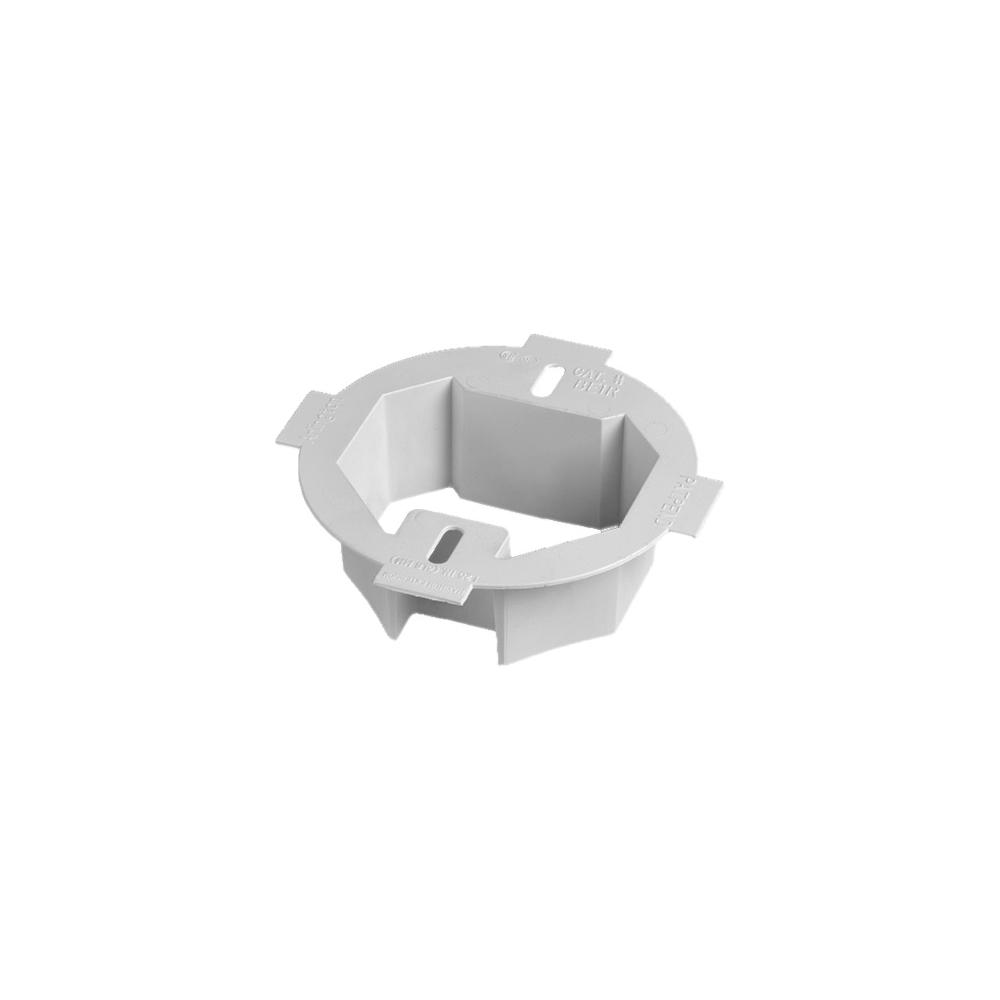

Arlington BE1R Box Extender, 1 Gang, 4.85 in L x 4.35 in W x 1-1/2 in D, Plastic

Brand: Arlington

Item ID: 90687

MPN: BE1R

Login for Price

Features

  • Extends box up to 1-1/2 in to bring It level with ceiling surface
  • Trims to accommodate shallow boxes or to avoid obstructions
  • Manufactured from 105 deg c continuous use 94 V-0 rated flame-retardant plastic for safer installations
  • Without knockout
  • 2 hr fire rating

Description

Arlington non-conductive box extenders extend set back metal or non-metallic electrical boxes up to 1-1/2 in, the easy way. They work with any 1-gang device and most steel and non-metallic outlet boxes and provide a level, fully supported wiring device that's flush with the wall surface. In steel boxes they prevent arcing and shorting by creating a barrier between the box and device screws.

Arlington Box Extender, 1 Gang, 4.85 in Length, 4.35 in Width, 1-1/2 in Depth, 4.35 in Diameter, Round Shape, 1-1/2 in Extension Cable Length, Ceiling Mounting, Plastic, White

Specifications

Color

White

Depth

1-1/2 in

Diameter

4.35 in

Extension Cable Length

1-1/2 in

Length

4.85 in

Material

Plastic

Mounting Type

Ceiling

Number of Gangs

1

Shape

Round

Width

4.35 in

Standard Approval

CSA File No. LR49636|cULus Listed|UL File No. E170558|2014 NEC Article 314.20

Application

For 3-1/2 and 4 in round or octagonal ceiling boxes applications

Documentation

Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_BE1R_Line_Drawing.pdf

https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_BE1_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_BE1_Specification_Sheet.pdf

Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_BE2_Specification_Sheet.pdf

videoVIDEO LINK http://www.youtube.com/v/SgWbrfalwjA

https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_314S_Warranty.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_314S_Warranty.pdf
