Arlington DBVMA1C

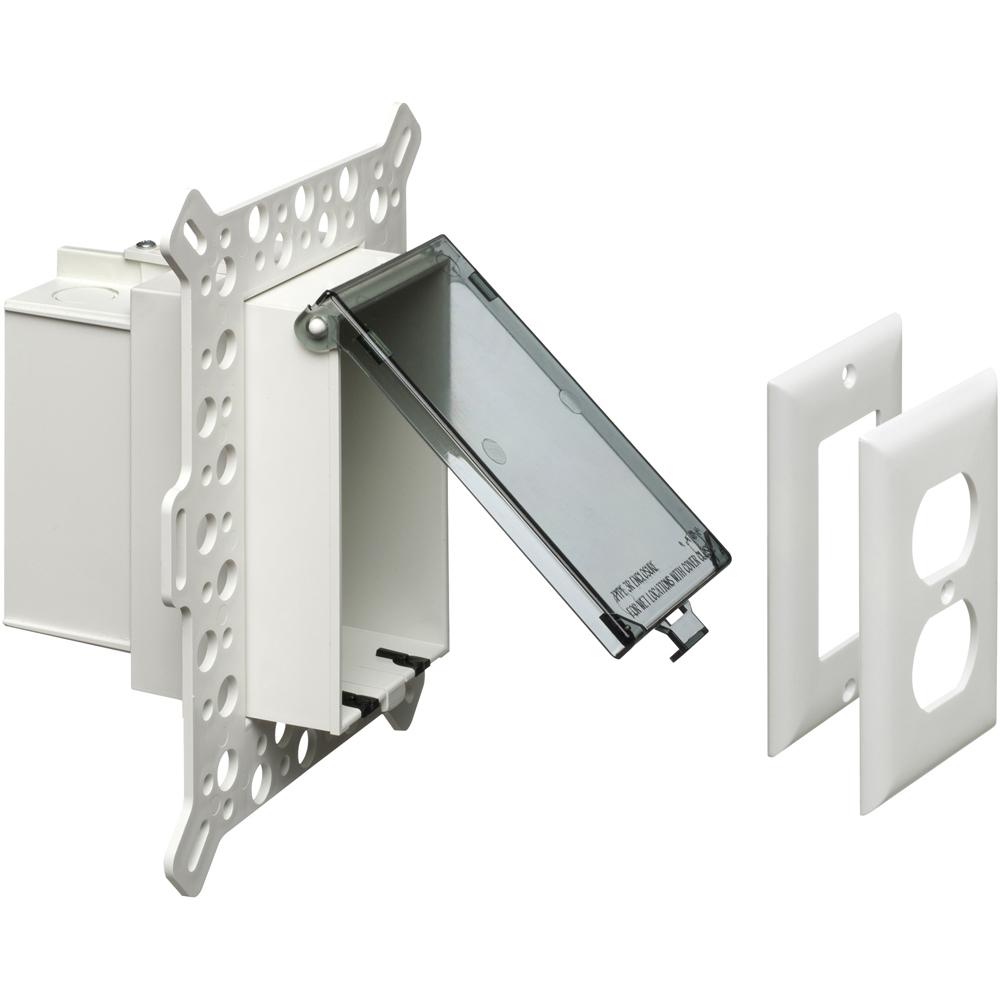

Arlington InBox™ DBVMA1C DB Series 1-Piece Low Profile Electrical Box, Plastic, 22 cu-in Capacity, 1 Gangs, 1 Outlets, 9.058 in L x 7.012 in W x 5.16 in H
Brand: Arlington
Item ID: 442907
MPN: DBVMA1C
Login for Price
Features
- InBox™ one-piece assembly replaces the installation of an electrical box and bubble cover assembly
- Adapter sleeve with loops in back for tying off cable, keeps mortar out of the box while brick mason works
- The clean IN Box™ slips into the sleeve for easy installation
- Built-in anchor tabs seat InBox™ sleeve into mortar for super secure installation
- Installs in the wall, so less of It shows outside
Description
Recessed electrical box with weatherproof in use extra duty cover. Adjustable to fit any foam board thickness. Non-metallic cover and base. Accepts most 1-gang wiring devices and uses standard indoor wall plates or a GFCI cover plate. Box and white cover are textured/ paintable UV rated plastic for long outdoor life.
Arlington InBox™ Electrical Box, 1-Piece Low Profile, Series: DB Series, 1 Outlets, 1 Gangs, NEMA 3R, Ceiling Mount, Vertical Mount, 22 cu-in, Plastic, Textured, Clear/White, 9.058 in L x 7.012 in W x 5.16 in H
Specifications
Capacity |
22 cu-in |
Color |
Clear/White |
Dimensions |
9.058 in L x 7.012 in W x 5.16 in H |
Enclosure Type |
NEMA 3R |
Finish |
Textured |
Material |
Plastic |
Mounting Orientation |
Vertical |
Mounting Type |
Ceiling |
Number of Gangs |
1 |
Number of Outlets |
1 |
Series |
DB Series |
Type |
1-Piece Low Profile |
Standard Approval |
2014 NEC 406.9|BAA Compliant|CSA Certified|ECCN EAR99|UL Listed |
Application |
For foam wall system Applications |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_DBVMA1C_Line_Drawing.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_DBVMA1C_Line_Drawing.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_DBVMA1W_Line_Drawing.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_DBHR171W_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_DBHR171W_Specification_Sheet.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_DBVR131W_Specification_Sheet.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_314S_Warranty.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_314S_Warranty.pdf
