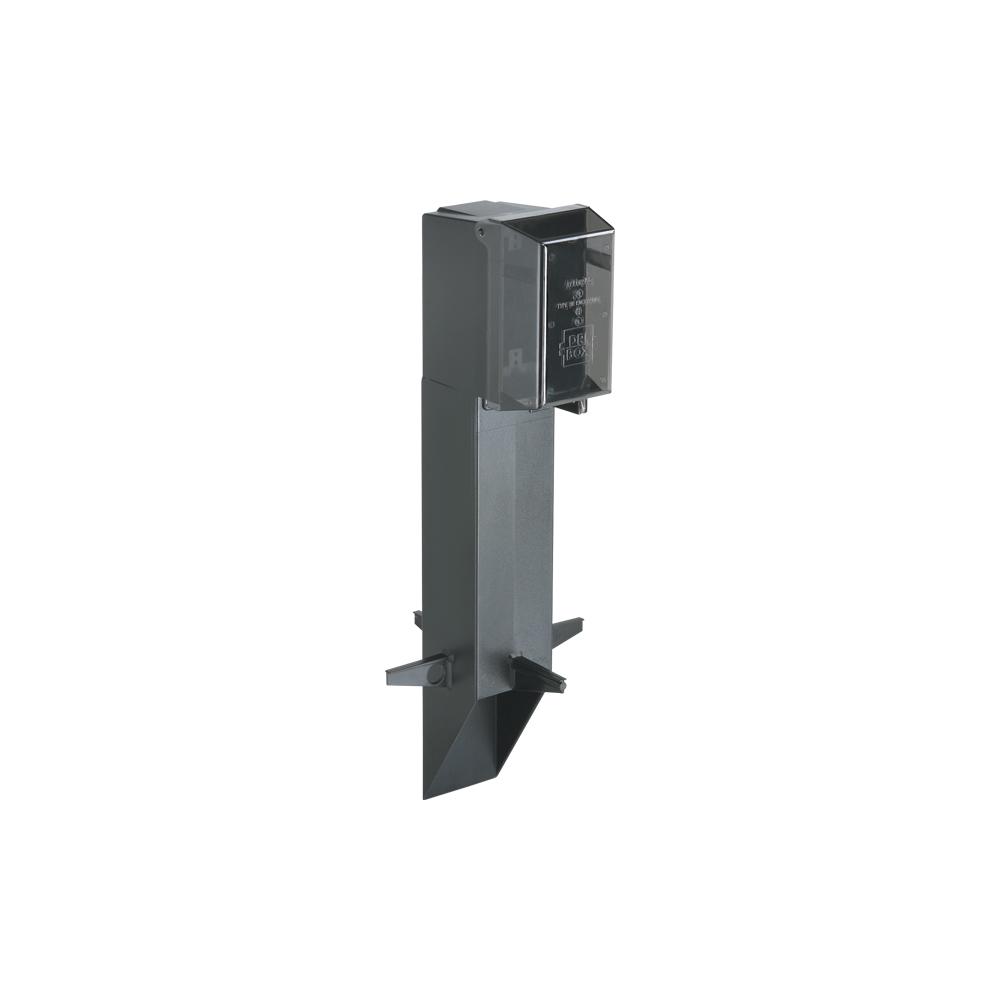

Arlington GPD19B

Arlington GPD19B GP Series Low Profile While-In-Use Box, Plastic, 19.5 in L x 6.269 in W x 2.964 in H

Brand: Arlington

Item ID: 354421

MPN: GPD19B

Login for Price

Features

  • Molded in color is permanent unlike painted posts where lawn equipment chips the color off
  • Installed cover, no gasket necessary
  • Built-in stabilizers need no assembly and provide rigid support
  • Code approved installation
  • No chipping, colorant runs throughout the product
  • Extra duty rated
  • Openings in stabilizers allow for insertion of extra support material
  • Angle-cut post for easy access to underground wiring
  • UV rated plastic for long outdoor life

Description

For installing a GFCI device outside, Arlington's Gard-N-Post™ with built-in cover is your innovative solution. The 19.5" support accommodates a 1-gang GFCI device and the clear extra duty weatherproof-in use cover protects it from the elements. The support is made of UV rated black plastic for a long service life and the color is permanent. The base of the support features four built-in stabilizers for rigid support and the base is also angled for easy access to underground wiring.

Arlington While-In-Use Box, Low Profile, Series: GP Series, Squared Shape, Post Mounting, Plastic, Black, 19.5 in L x 6.269 in W x 2.964 in H Dimensions

Specifications

Color

Black

Dimensions

19.5 in L x 6.269 in W x 2.964 in H

Material

Plastic

Mounting Type

Post

Series

GP Series

Shape

Squared

Type

Low Profile

Standard Approval

CSA Certified|UL Listed|406.9 (B) (1) of the 2011 NEC

Application

For installation of a weatherproof GFCI device and outdoor applications
