Arlington L422

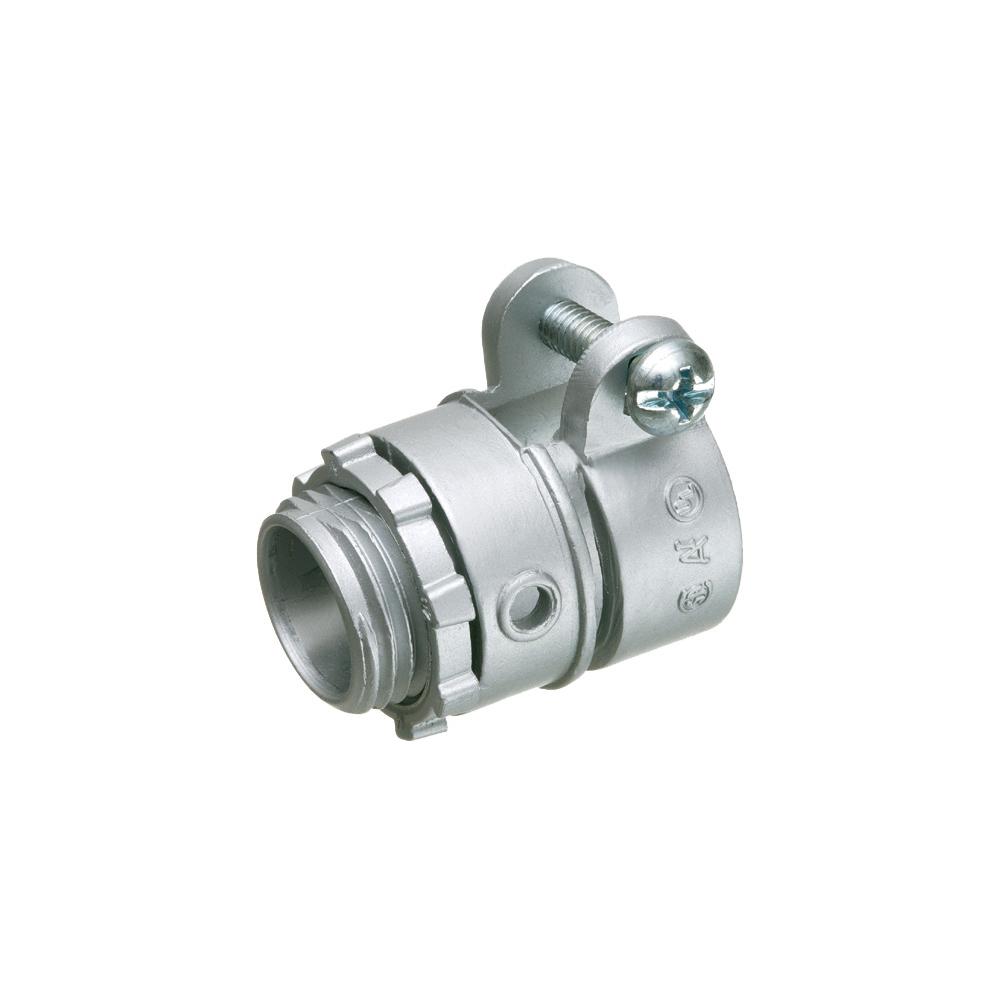

Arlington L422 Single Screw Cable Connector With Round End Stop, 1 in Trade, 3/4 in Knockout, 1.1 to 1.135 in Cable Openings, Die Cast Zinc
Brand: Arlington
Item ID: 9298
MPN: L422
Login for Price
Features
- Concretetight when taped
Description
Arlington Cable Connector, Single Screw, 1 in Trade, 3/4 in Knockout, Cable Openings: 1.1 to 1.135 in, Flex/AC/MC/MCI Cable, Threaded x Squeeze Connection, Die Cast Zinc, Silver, 1.556 in L x 1.556 in W x 1.555 in H Dimensions
Specifications
Cable Openings |
1.1 to 1.135 in |
Cable Type |
Flex/AC/MC/MCI |
Color |
Silver |
Connection Type |
Threaded x Squeeze |
Dimensions |
1.556 in L x 1.556 in W x 1.555 in H |
Knockout Size |
3/4 in |
Material |
Die Cast Zinc |
Trade Size |
1 in |
Type |
Single Screw |
Standard Approval |
CSA File No. LR49636|UL File No. E60812 |
Documentation
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_L421_Line_Drawing.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_L422_Specification_Sheet.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_L420_Line_Drawing.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_L420_Line_Drawing.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_L421_Line_Drawing.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_L421_Line_Drawing.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_L422_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_L422_Specification_Sheet.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_314S_Warranty.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_314S_Warranty.pdf
Arlington L422
