Arlington NMUF50

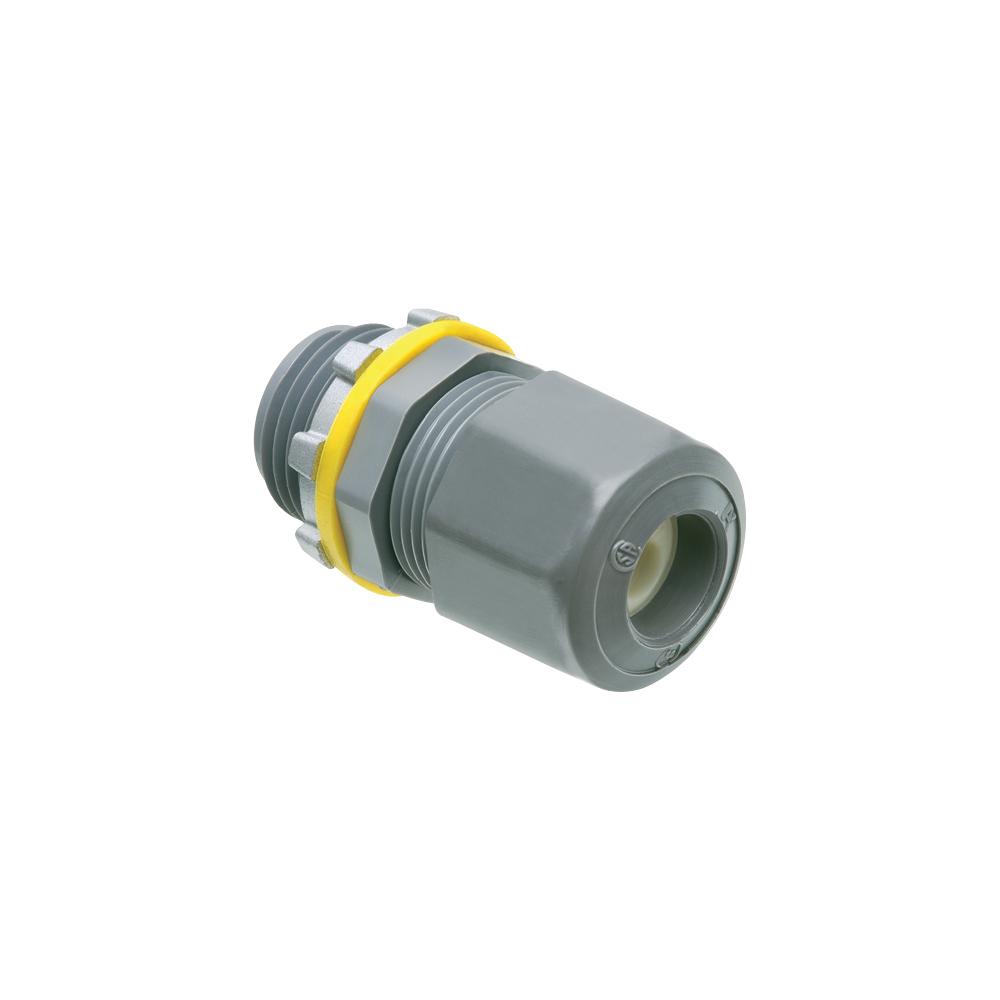

Arlington NMUF50 Compression UF Connector, 1/2 in Trade, 14/2 to 12/2 AWG Cable Openings, Plastic
Brand: Arlington
Item ID: 2063
MPN: NMUF50
Login for Price
Features
- Compression-type for underground feeder cable
- 3/4 in uF low profile design to fit the new smaller uF cables as well as standard sizes
Description
Arlington UF Connector, Compression, 1/2 in Trade, Cable Openings: 14/2 to 12/2 AWG, NM Underground Feeder Cable, Plastic, Gray, 1.04 in L x 1.04 in W x 1.827 in H Dimensions
Specifications
Cable Openings |
14/2 to 12/2 AWG |
Cable Type |
NM Underground Feeder |
Color |
Gray |
Dimensions |
1.04 in L x 1.04 in W x 1.827 in H |
Material |
Plastic |
Trade Size |
1/2 in |
Type |
Compression |
Standard Approval |
UL File No. E28474|CSA File No. LR49636|ECCN EAR99 |
Documentation
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_NMUF50_Line_Drawing.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_NMUF75_Line_Drawing.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_NMUF75_Line_Drawing.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_NMUF50_Specification_Sheet.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_314S_Warranty.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_314S_Warranty.pdf
