Arlington SG38A

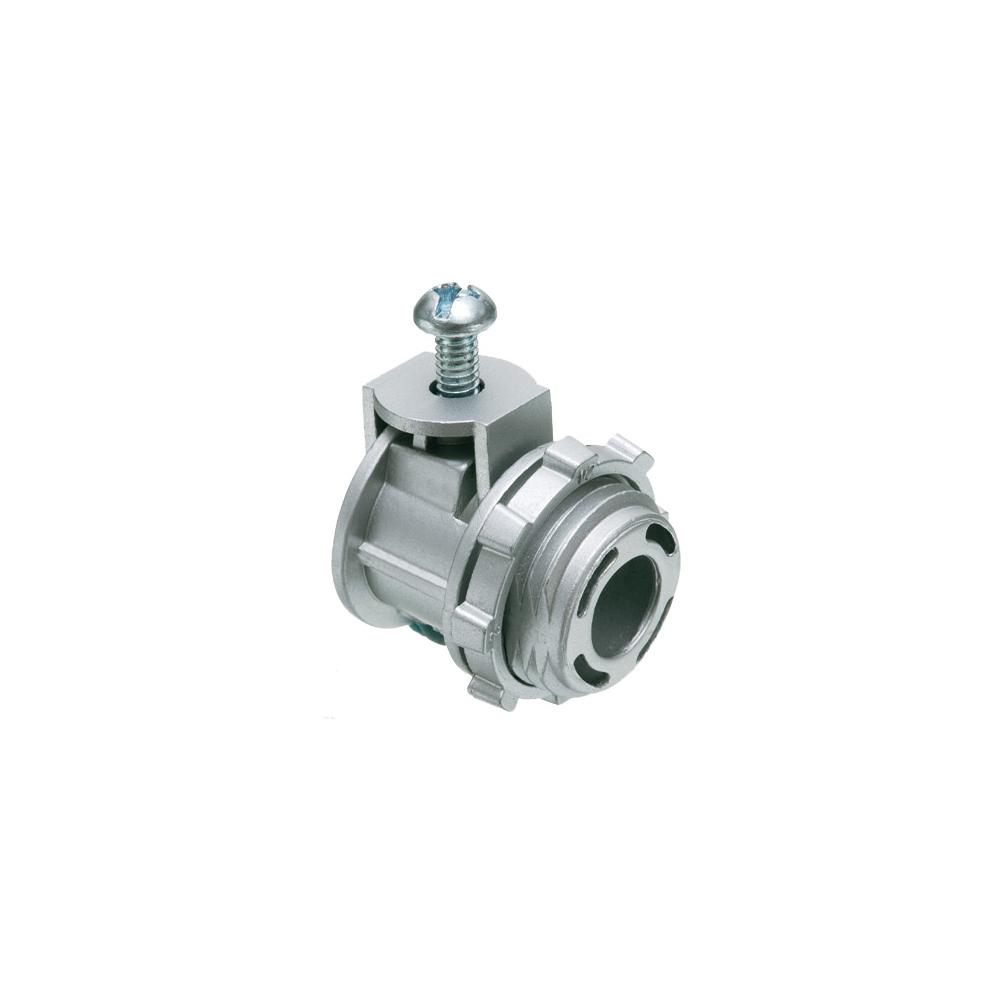

Arlington Saddlegrip® SG38A Straight Cable Connector With Insulated Throat, 3/8 in Trade, 1/2 in Knockout, 0.405 to 0.612 in Cable Openings, Die Cast Zinc
Brand: Arlington
Item ID: 371096
MPN: SG38A
Login for Price
Features
- Connector with spring set screw for securing aluminum and steel cable
- Secures into knockout with a die cast zinc
- Concrete tight when taped
Description
Arlington Saddlegrip® Cable Connector, Straight, 3/8 in Trade, 1/2 in Knockout, Cable Openings: 0.405 to 0.612 in, Aluminum/Steel/Flex/AC/AC90/MC/MCI/MCI-A Cable, Threaded x Screw Connection, Die Cast Zinc, Silver, 1.09 in L x 1.077 in W x 1.077 in H Dimensions
Specifications
Cable Openings |
0.405 to 0.612 in |
Cable Type |
Aluminum/Steel/Flex/AC/AC90/MC/MCI/MCI-A |
Color |
Silver |
Connection Type |
Threaded x Screw |
Dimensions |
1.09 in L x 1.077 in W x 1.077 in H |
Knockout Size |
1/2 in |
Material |
Die Cast Zinc |
Trade Size |
3/8 in |
Type |
Straight |
Standard Approval |
CSA LR84319|UL File No. E7819 |
Documentation
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_SG50A_Line_Drawing.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_SG75A_Line_Drawing.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_SG75A_Line_Drawing.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_SG38A_Specification_Sheet.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_314S_Warranty.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_314S_Warranty.pdf
