Arlington WTC150

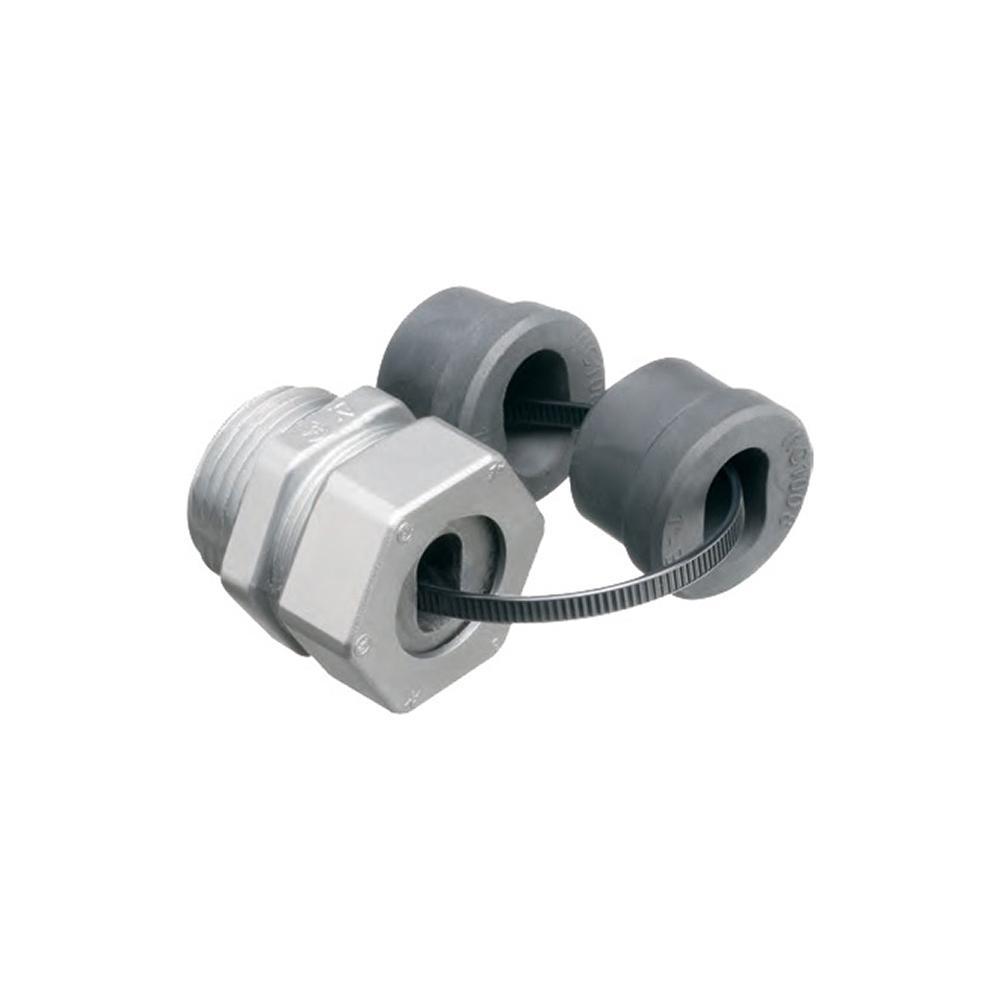

Arlington WTC150 Gland Service Entrance Cable Connector, 1-1/2 in Knockout, (2) 1/0 to 2/0 AWG Conductor, Die Cast Zinc
Brand: Arlington
Item ID: 9699
MPN: WTC150
Login for Price
Features
- Each connector provides two to three glands that are listed to handle particular cable sizes
- Quick, easy installation of gland into connector
- Saves time and money
- Reduces inventory
Description
Arlington Service Entrance Cable Connector, Gland, 1-1/2 in Knockout, 1/0 to 2/0 AWG Conductor, 2 Conductors, Specifications: Silver Color, Die Cast Zinc, 2.1 in H x 2.4 in W Dimensions
Specifications
Conductor Size |
1/0 to 2/0 AWG |
Dimensions |
2.1 in H x 2.4 in W |
Knockout Size |
1-1/2 in |
Material |
Die Cast Zinc |
Number of Conductors |
2 |
Specifications |
Silver Color |
Type |
Gland |
Standard Approval |
cULus Listed|ECCN EAR99 |
Documentation
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_WTC200_Line_Drawing.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_WTC100_Line_Drawing.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_WTC100_Line_Drawing.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_WTC200_Line_Drawing.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_WTC200_Line_Drawing.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_WTC100_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_WTC100_Specification_Sheet.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_WTC200_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_WTC200_Specification_Sheet.pdf
VIDEO LINK
http://www.youtube.com/v/nXl6HcQlsTA
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_314S_Warranty.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_314S_Warranty.pdf
